Installation [11/2015 - ]: Procedure

  1. INSTALL FUEL INJECTOR ASSEMBLY

    HINT:

    Perform "Inspection After Repair" after replacing a fuel injector assembly.

    Refer to INITIALIZATION [11/2015 - ]

    1. Apply a light coat of gasoline or spindle oil to new injector vibration insulators and new O-rings, and then install one to each fuel injector assembly.
      GTY549878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      *2 Injector Vibration Insulator
    2. Apply a light coat of gasoline or spindle oil where the fuel delivery pipe sub-assembly contacts each O-ring.
    3. While turning the fuel injector assembly left and right, install it to the fuel delivery pipe sub-assembly.
      GTY543087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      Push
      NOTE:
      • Do not damage the fuel injector assembly or O-ring.
      • Make sure that the O-ring is not twisted or moved out of place when installing the fuel injector assembly.
      • After installing each fuel injector assembly, check that it turns smoothly. If not, replace the O-ring with a new one.

      HINT:

      Use the same procedure to install the other fuel injector assemblies.

  2. INSTALL NO. 1 DELIVERY PIPE SPACER
    1. Install the 2 No. 1 delivery pipe spacers to the cylinder head sub-assembly.

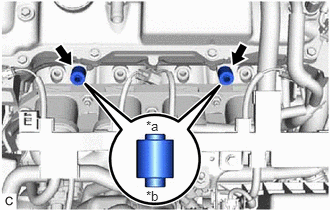

      GTY572611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fuel Delivery Pipe Sub-assembly Side
      *b Cylinder Head Sub-assembly Side
      NOTE:

      Install the No. 1 delivery pipe spacers in the correct direction.

  3. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY
    1. Install the fuel delivery pipe sub-assembly with the 4 fuel injector assemblies with the 2 bolts.

      Torque: 21 N.m (214 kgf.cm, 15 ft./lbf)

      NOTE:
      • Be careful not to drop the fuel injector assemblies when installing the fuel delivery pipe sub-assembly.
      • Check that the fuel injector assemblies turn smoothly after installing the fuel delivery pipe sub-assembly.
    2. Install the clamp of the fuel delivery pipe sub-assembly to the cylinder head sub-assembly with the bolt.

      Torque: 21 N.m (214 kgf.cm, 15 ft./lbf)

  4. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Connect the fuel tube sub-assembly to the fuel pipe.

      Refer to PRECAUTION [11/2015 - 12/2018] , or refer to PRECAUTION [12/2018 - ]

    2. Install the fuel pipe clamp to the fuel tube connector and close the cover of the fuel pipe clamp.
  5. CONNECT ENGINE WIRE
    1. Engage the clamp to connect the engine wire.
    2. Install the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in./lbf)

    3. Connect the 4 fuel injector assembly connectors.
  6. CONNECT NO. 2 VENTILATION HOSE
    1. Connect the No. 2 ventilation hose to the cylinder head cover sub-assembly and slide the clip to secure it.
  7. INSTALL EGR PIPE WITH COOLER SUB-ASSEMBLY

    Refer to INSTALLATION [11/2015 - ]

  8. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2015 - 11/2017] , or refer to INITIALIZATION [11/2017 - 12/2018] , or refer to INITIALIZATION [12/2018 - 08/2019] , or refer to INITIALIZATION [08/2019 - 07/2020] , or refer to INITIALIZATION [07/2020 - ]

  9. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 1 [12/2018 - ]

  10. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing a fuel injector assembly.

      Refer to INITIALIZATION [11/2015 - ]
