Power Window Control System
>>
Driver Side Power Window does not Operate with Power Window Master Switch [11/2015 - ]
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Side Power Window does not Operate with Power Window Master Switch [11/2015 - ]: Wiring Diagram

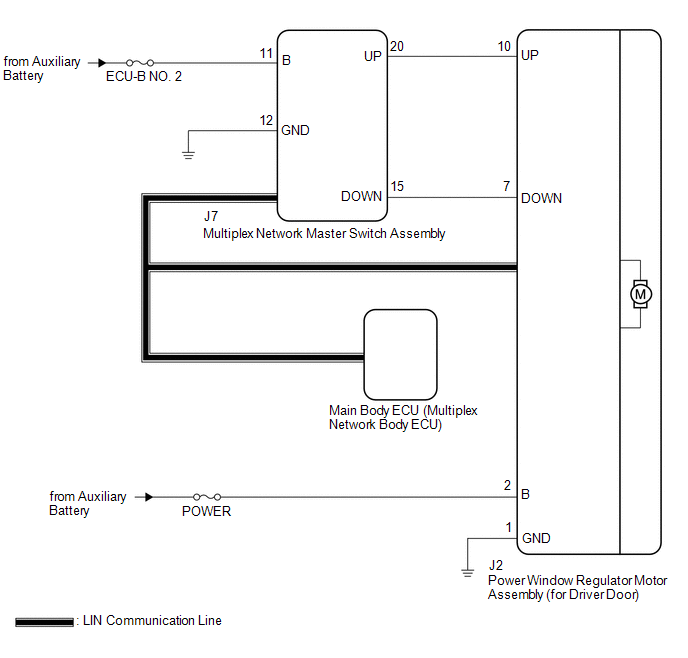

Fig 1: Driver Side Power Window With Power Window Master Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
