Components [09/2019 - ]

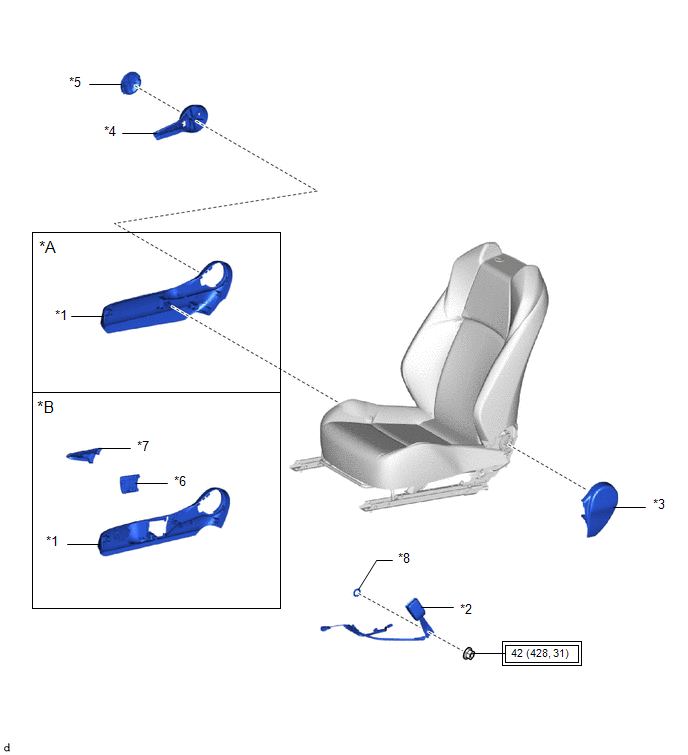

Fig 1: Occupant Detection Sensor Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Vertical Adjuster	*B	w/ Vertical Adjuster
*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER BELT ASSEMBLY
*3	FRONT SEAT INNER CUSHION SHIELD	*4	RECLINING ADJUSTER RELEASE HANDLE
*5	RECLINING HINGE OUTER COVER	*6	SEAT ADJUSTER COVER CAP
*7	VERTICAL ADJUSTING HANDLE	*8	FRONT SEAT BELT ANCHOR PLATE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

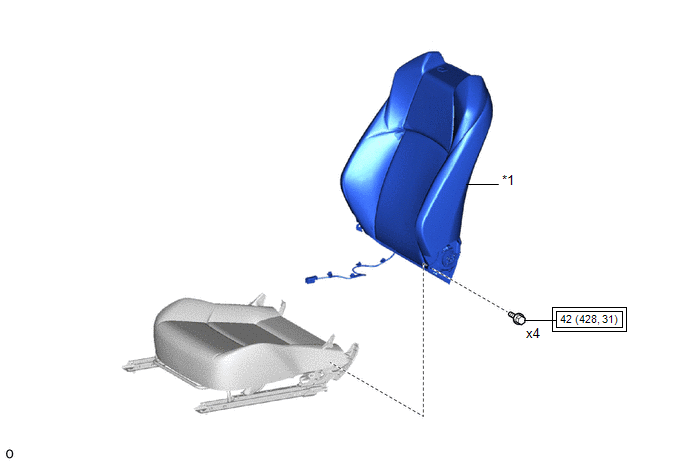

Fig 2: Occupant Detection Sensor Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

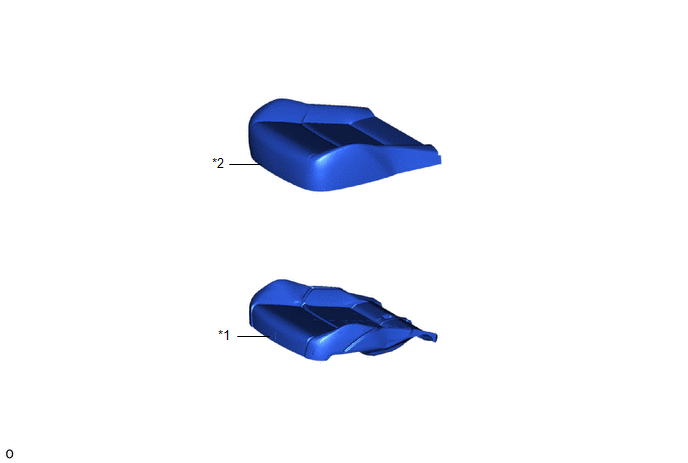

Fig 3: Occupant Detection Sensor Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

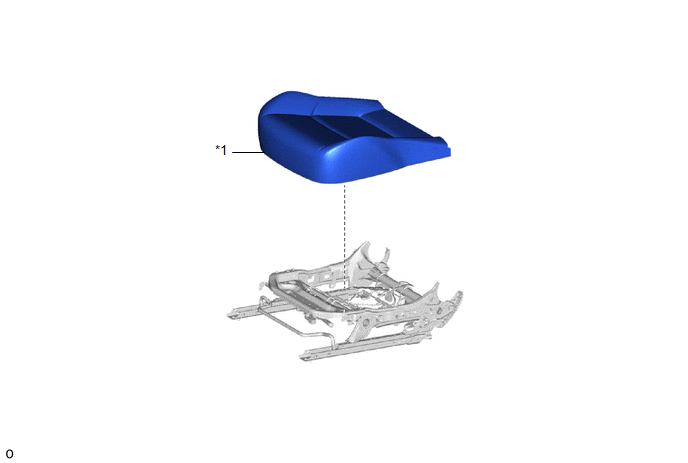

Fig 4: Occupant Detection Sensor Replacement Components (4 Of 4)

OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

SEPARATE TYPE FRONT SEAT CUSHION COVER
