Installation [04/2018 -]: Procedure

  1. INSTALL BRAKE HOLD SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

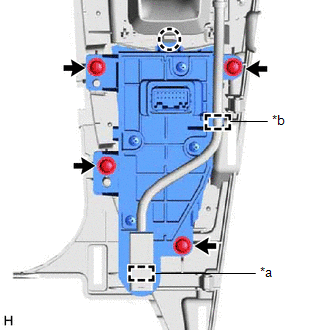

    1. Engage the claw and install the brake hold switch (electric parking brake switch assembly) with the 4 screws.
      GTY872574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Engage the guide and clamp.
  2. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 -]
