Components [04/2018 -]

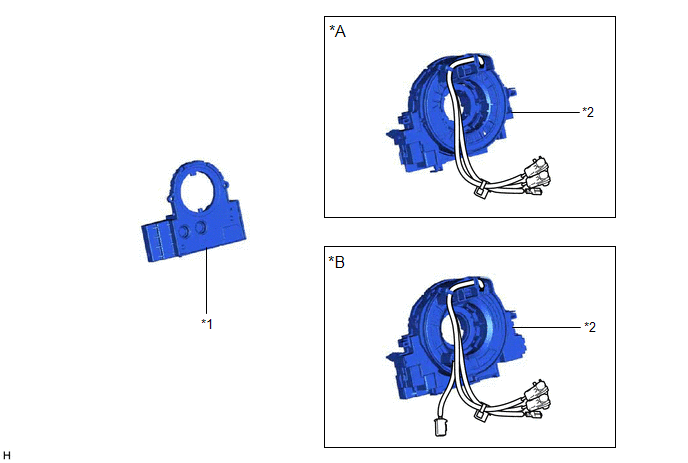

Fig 1: Steering Angle Sensor Replacement Components
GTY841127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Heated Steering Wheel System *B w/ Heated Steering Wheel System
*1 STEERING SENSOR *2 SPIRAL CABLE SUB-ASSEMBLY
