Installation [03/2019 - ]: Procedure

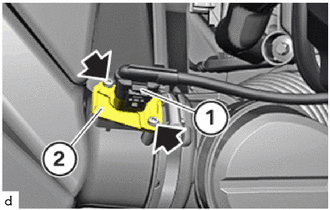

- INSTALL INTAKE MASS AIR FLOW METER SUB-ASSEMBLY
- Insert and install the intake mass air flow meter sub-assembly (2).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Tighten T20 screws (arrows).
Torque: 1.4 N*m (14 kgf*cm, 12 in.*lbf)
- Connect connectors (1) and lock.
HINT:
The connector (1) must engage audibly.
- PERFORM INITIALIZATION
- Connect the diagnosis system to the vehicle and enter the following menus:
Vehicle management / Service functions / Drive / Engine electronics / Reset adaptations / ABL Reset adaptation values
