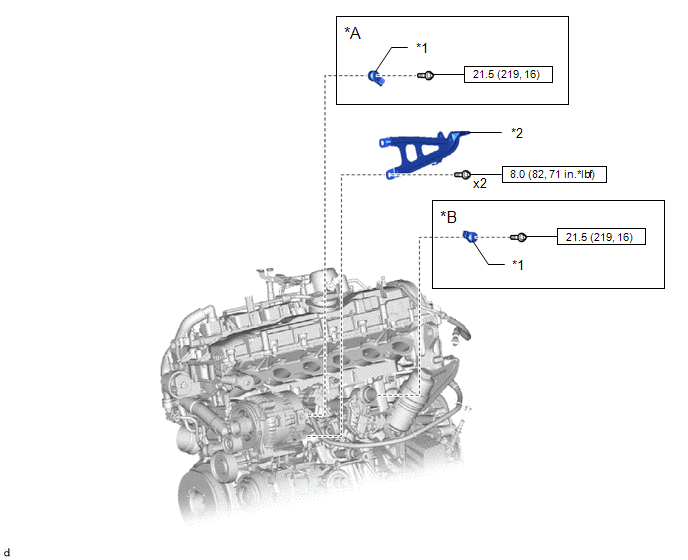

Components [03/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Bank 1 |
*B |
for Bank 2 |
| *1 |
KNOCK SENSOR |
*2 |
INTAKE MANIFOLD STAY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
