Installation [03/2019 - ]: Procedure
- INSTALL SPARK PLUG
Refer to PROCEDURE - Step 1
- INSTALL IGNITION COIL
- Install ignition coil.
- Tighten down E8 bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Connect connectors and lock.
HINT:
The connector must engage audibly.

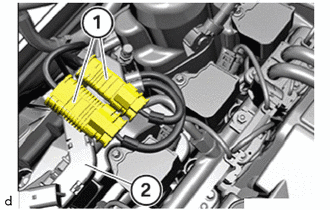

- Connect the connectors (1) of the No. 2 oxygen sensor and the No. 2 air fuel ratio sensor on the cable shaft (2).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL NO. 1 ENGINE COVER

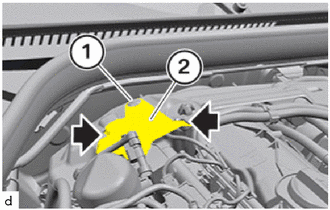

- Turn the No. 1 engine cover (2) at the pivot point (1) to the installation position and guide it in where marked (arrows).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 38
