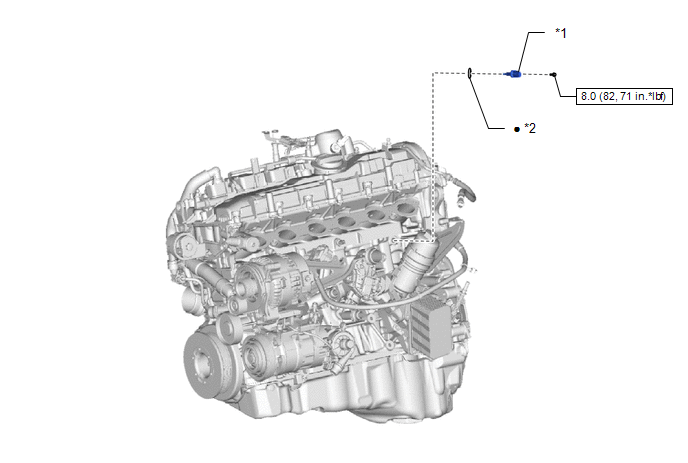

Components [03/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OIL TEMPERATURE SENSOR |
*2 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
