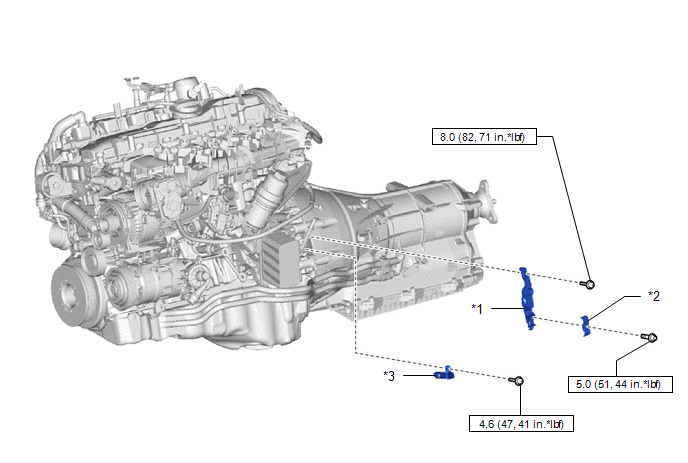

Components [03/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 2 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP |
*2 |
NO. 3 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP |
| *3 |
CRANKSHAFT POSITION SENSOR |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
