Removal [03/2019 - ]: Procedure
- REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY
- Unclip the cover (1).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

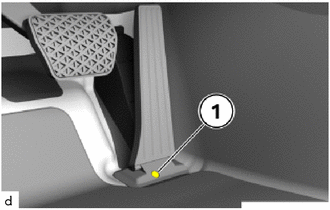

- Loosen T10 bolt (1).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

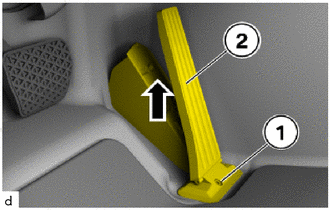

- Feed out accelerator pedal sensor assembly (2) towards the top.
- Lift the accelerator pedal sensor assembly (1) at the bottom 2 cm to feed out from the holder (2).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Slide the accelerator pedal sensor assembly (1) out of the holder (3) in the direction of arrow (diagonally upwards).

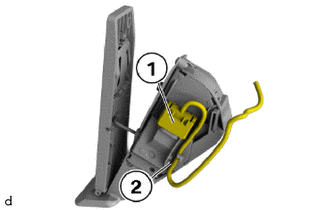

- Unlock plug connection (1) and disconnect.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Feed the wiring harness out of the holder (2).
