Components [04/2018 -]

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

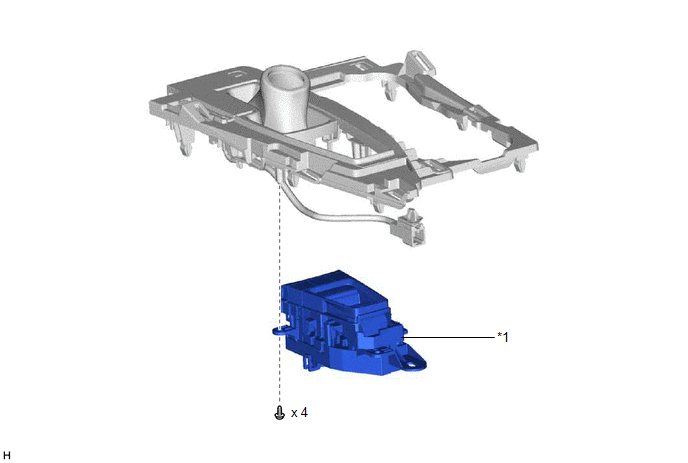

Fig 1: Absorber Control Switch Replacement Components
GTY852226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ABSORBER CONTROL SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) - -
