Components [06/2016 - 03/2017]

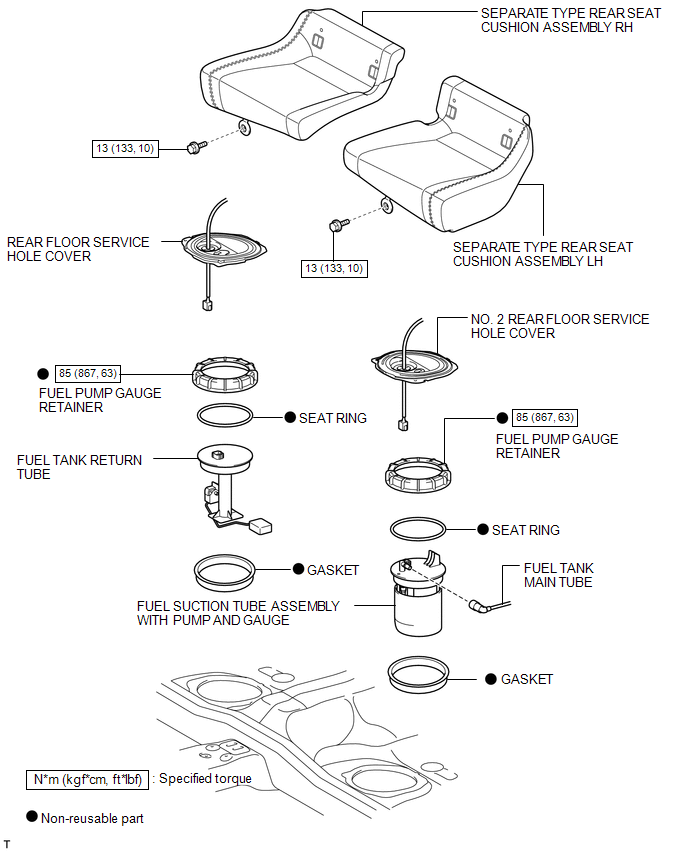

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY736778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

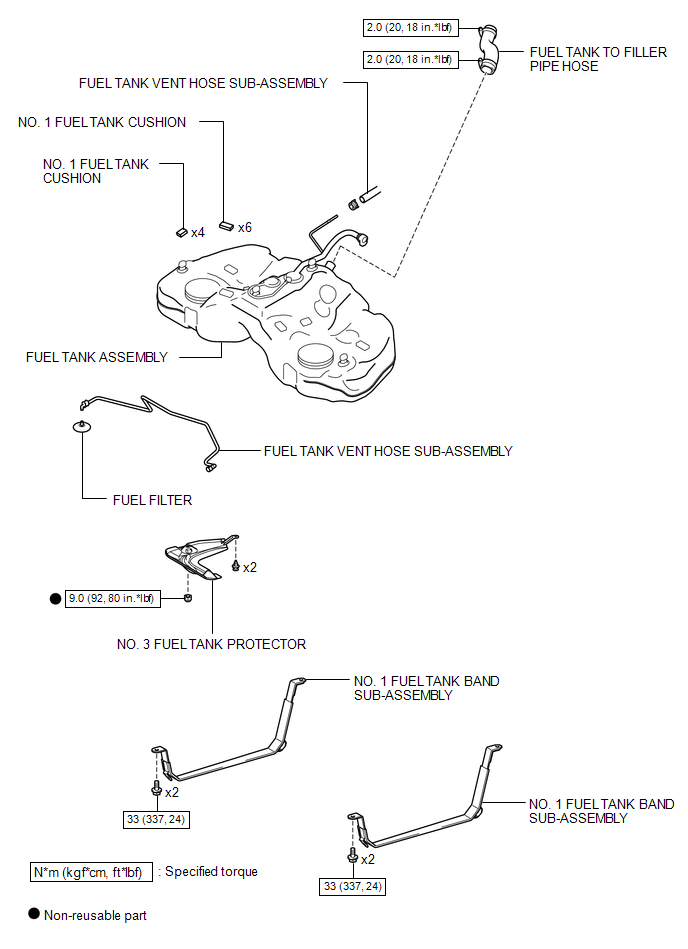

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY715819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
