Removal [08/2019 - ]: Procedure

  1. REMOVE REAR SPEED SENSOR (for Hatchback)
    1. Remove the following parts:
      1. Rear package tray

        Refer to REMOVAL [08/2019 - ]

      2. Trunk covering

        Refer to REMOVAL [08/2019 - ]

      3. Trunk board

        Refer to REMOVAL [07/2015 - ]

      4. Trunk end trim

        Refer to REMOVAL [08/2019 - ]

      5. Rear scuff plate

        Refer to REMOVAL [07/2015 - ]

      6. Rear seat cushion

        Refer to REMOVAL [07/2015 - ]

      7. Rear center seat belt lower anchor installation bolt

        Refer to PROCEDURE - Step 1

      8. Rear seat back

        Refer to REMOVAL [07/2015 - ]

      9. Trunk side trim

        Refer to REMOVAL [08/2019 - ]

    2. Disconnect the rear speed sensor connector.

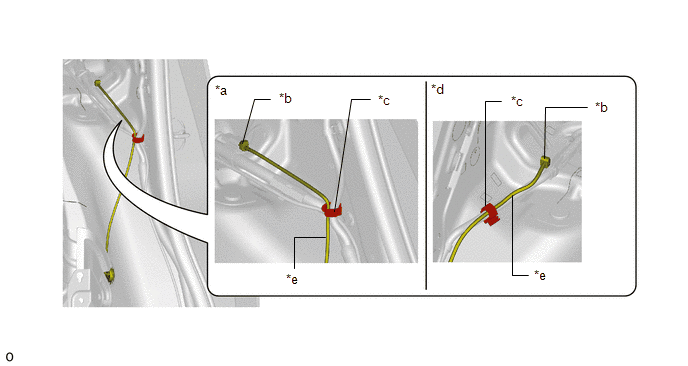

      GTY890305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH *b Connector
      *c Clip *d RH
      *e Rear Speed Sensor Wiring Harness - -
    3. Detach the rear speed sensor wiring harness from the clip.
    4. Press the rear speed sensor tab and press out the sensor toward the outside of the vehicle.

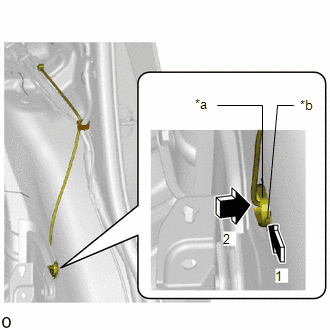

      GTY855732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Speed Sensor
      *b Tab
    5. Remove in the order indicated in the table.
    6. Remove the clip.
      GTY492241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt *2 Rear Speed Sensor
      *a Remove Clip While Pressing Arrow Indication. *b Body
      *c Clip - -
      Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -
    7. Remove the bolt.
    8. Remove the rear speed sensor.
  2. REMOVE REAR SPEED SENSOR (for Sedan)
    1. Remove the following parts:
      1. Rear scuff plate

        Refer to REMOVAL [07/2015 - ]

      2. Rear seat cushion

        Refer to REMOVAL [07/2015 - ]

      3. Tire house trim

        Refer to REMOVAL [07/2015 - ]

    2. Remove the rear speed sensor connector.

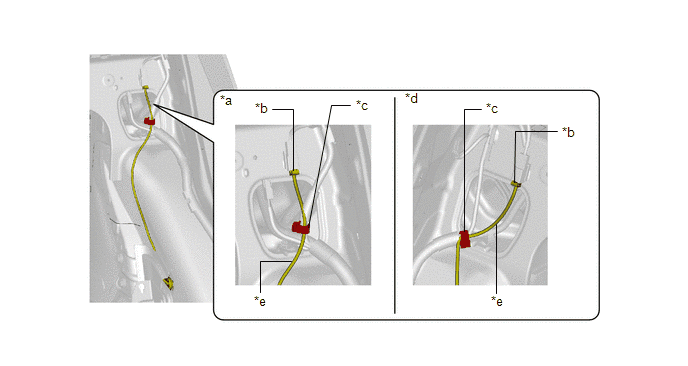

      GTY880066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH *b Connector
      *c Clip *d RH
      *e Rear Speed Sensor Wiring Harness - -
    3. Detach the rear speed sensor wiring harness from the clip.
    4. Press the rear speed sensor tab and press out the sensor toward the outside of the vehicle.
      GTY488343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Speed Sensor
      *b Tab
    5. Remove the clip.
      GTY492241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt *2 Rear Speed Sensor
      *a Remove Clip While Pressing Arrow Indication. *b Body
      *c Clip - -
      Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -
    6. Remove the bolt.
    7. Remove the rear speed sensor.
