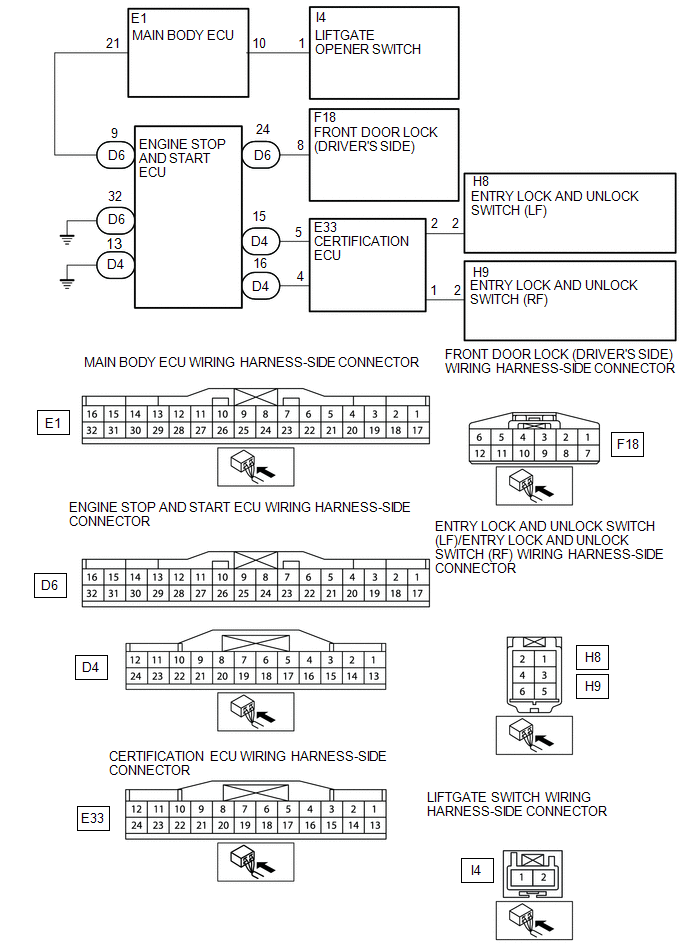

Advanced Keyless Entry System Does Not Operate [08/2019 - ]: Wiring Diagram

GTY907326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
