Inspection [08/2015 - ]: Procedure

INSPECT CRAWL CONTROL SWITCH (DRIVE MONITOR SWITCH)

Check the resistance.

Measure the resistance according to the value(s) in the table below.

GTY694351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

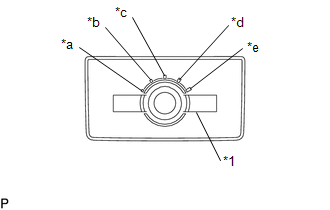

TEXT IN ILLUSTRATION

*1	Crawl Control Switch
*a	Low
*b	Between Low and Medium
*c	Medium
*d	Between Medium and High
*e	High

GTY709574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
7 (ECU) - 8 (E)	Low	Below 1 Ω
2 (UP) - 8 (E)		Below 1 Ω
6 (DN) - 8 (E)		10 kΩ or higher
7 (ECU) - 8 (E)	Between Low and Medium	Below 1 Ω
2 (UP) - 8 (E)		Below 1 Ω
6 (DN) - 8 (E)		10 kΩ or higher
7 (ECU) - 8 (E)	Medium	Below 1 Ω
2 (UP) - 8 (E)		Below 1 Ω
6 (DN) - 8 (E)		10 kΩ or higher
7 (ECU) - 8 (E)	Between Medium and High	Below 1 Ω
2 (UP) - 8 (E)		Below 1 Ω
6 (DN) - 8 (E)		10 kΩ or higher
7 (ECU) - 8 (E)	High	Below 1 Ω
2 (UP) - 8 (E)		Below 1 Ω
6 (DN) - 8 (E)		10 kΩ or higher
3 (SWl3) - 8 (E)	ON/OFF: Pressed	Below 1 Ω
3 (SWl3) - 8 (E)	ON/OFF: Not pressed	10 kΩ or higher

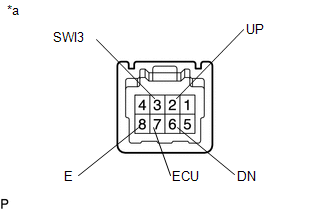

TEXT IN ILLUSTRATION

*a	Component without harness connected (Crawl Control Switch (Drive Monitor Switch))

If the result is not as specified, replace the crawl control switch (drive monitor switch).
