Components [11/2018 - ]

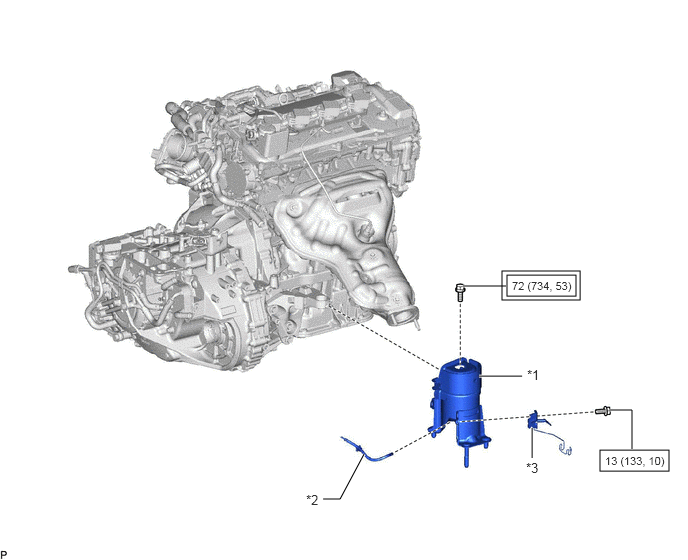

Fig 1: Active Control Engine Mount (For Rear Side) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE MOUNTING INSULATOR | *2 | VACUUM HOSE |
| *3 | WIRE HARNESS CLAMP BRACKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
