Brake Control System - Service Information
>>
Brake Control Power Supply
>>
Components [09/2022 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [09/2022 - ]

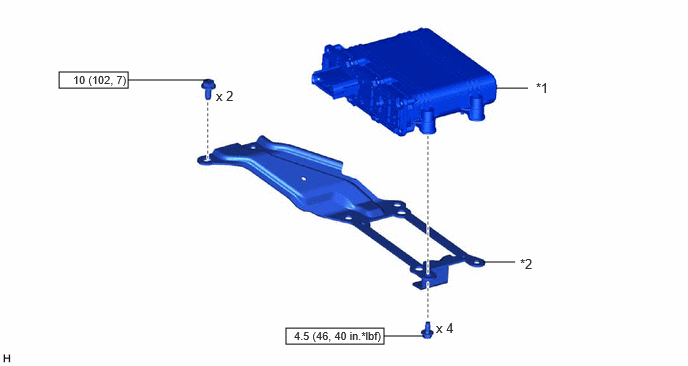

Fig 1: Brake Control Power Supply Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
BRAKE CONTROL POWER SUPPLY ASSEMBLY
*2
NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
N.m (kgf/cm, ft.lbf): Specified torque
-
-
