Installation [08/2015 - ]: Procedure

  1. INSTALL DOWNHILL ASSIST CONTROL SWITCH

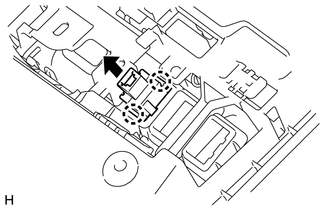

    1. Attach the 2 claws to install the downhill assist control switch to the map lamp assembly.
      GTY212910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL MAP LIGHT ASSEMBLY

    See step  2

  3. INSTALL DRIVE MONITOR SWITCH

    See step  1

  4. PERFORM DOWNHILL ASSIST CONTROL CALIBRATION
    1. Perform downhill assist control switch calibration (Refer to CALIBRATION [08/2015 - 08/2019] , or refer to CALIBRATION [08/2019 - ] ).
