86 GT, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Circuit Tests
>>
SFI System
>>
Fuel Pump Control Circuit [03/2017 - ]
>>
Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

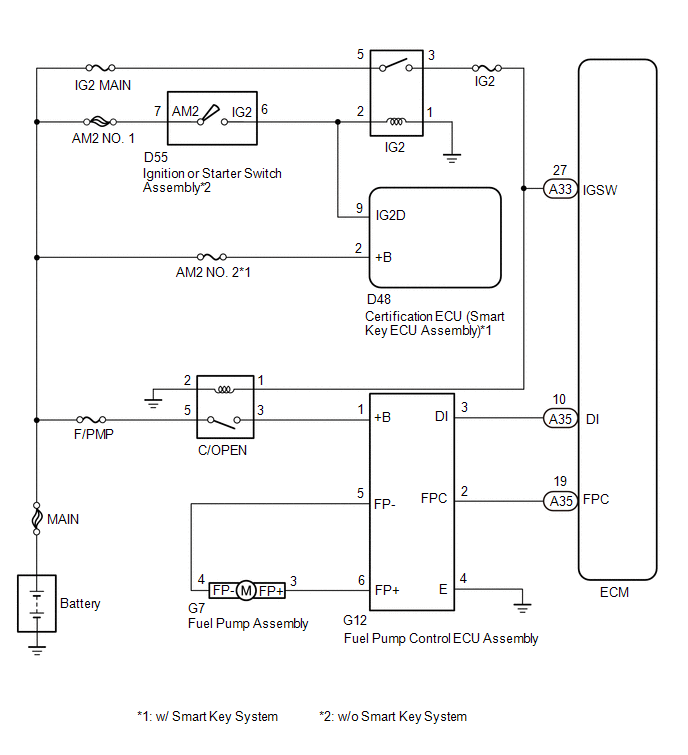

Fuel Pump Control Circuit [03/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
