System Diagram

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [SMART KEY SYSTEM]

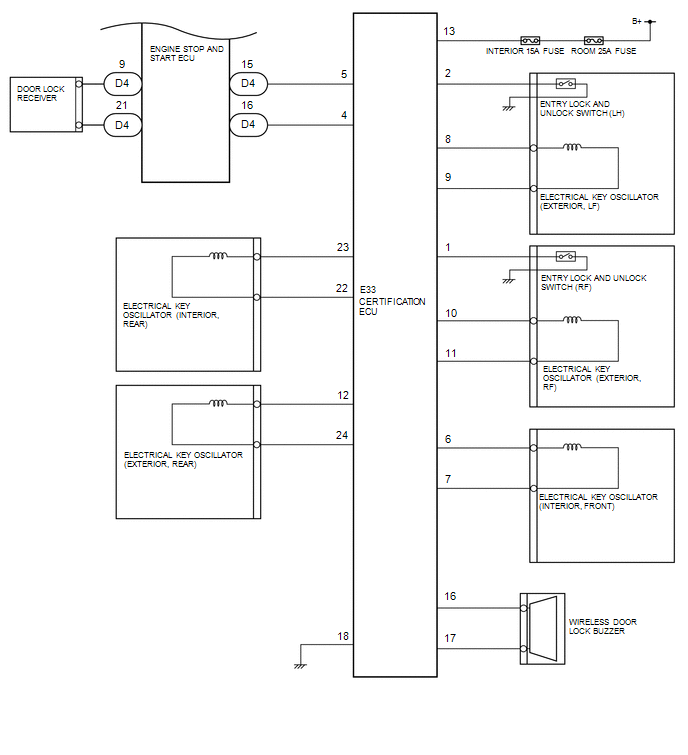

Fig 1: Smart Key System Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

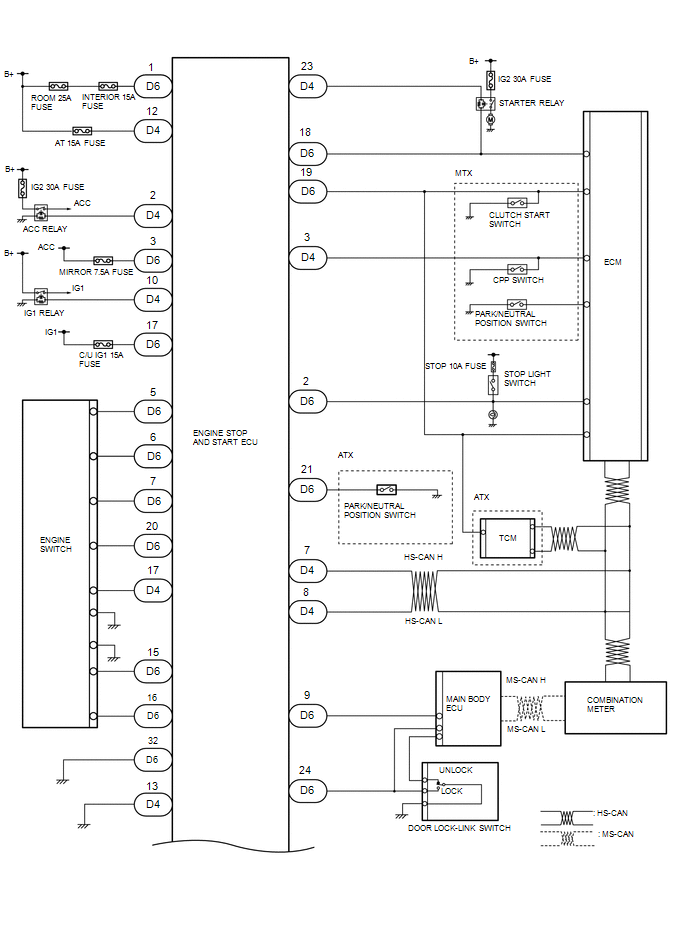

Fig 2: Smart Key System Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SYMPTOM TROUBLESHOOTING [WIRELESS DOOR LOCKS]

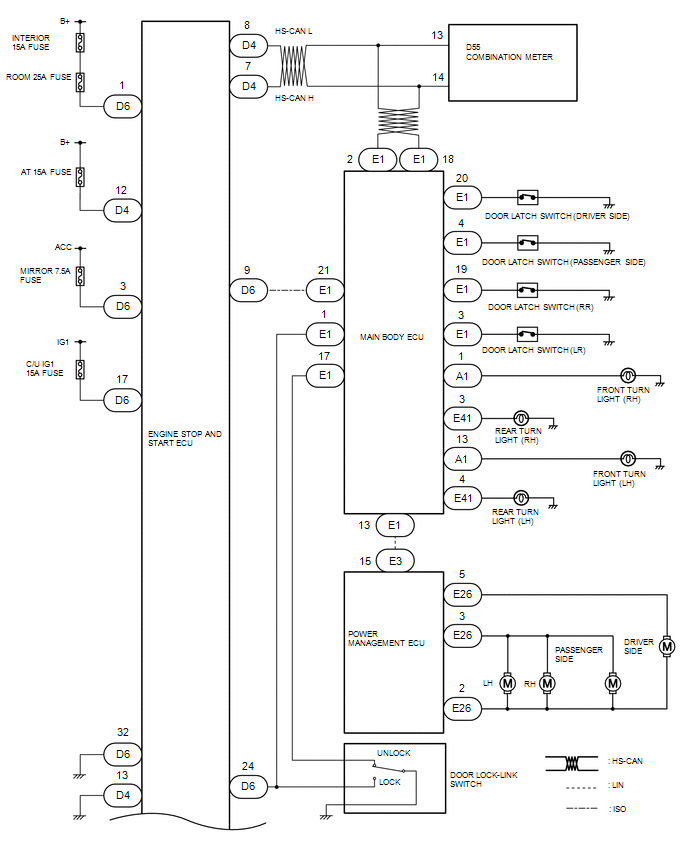

Fig 3: Wireless Door Locks Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Wireless Door Locks Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

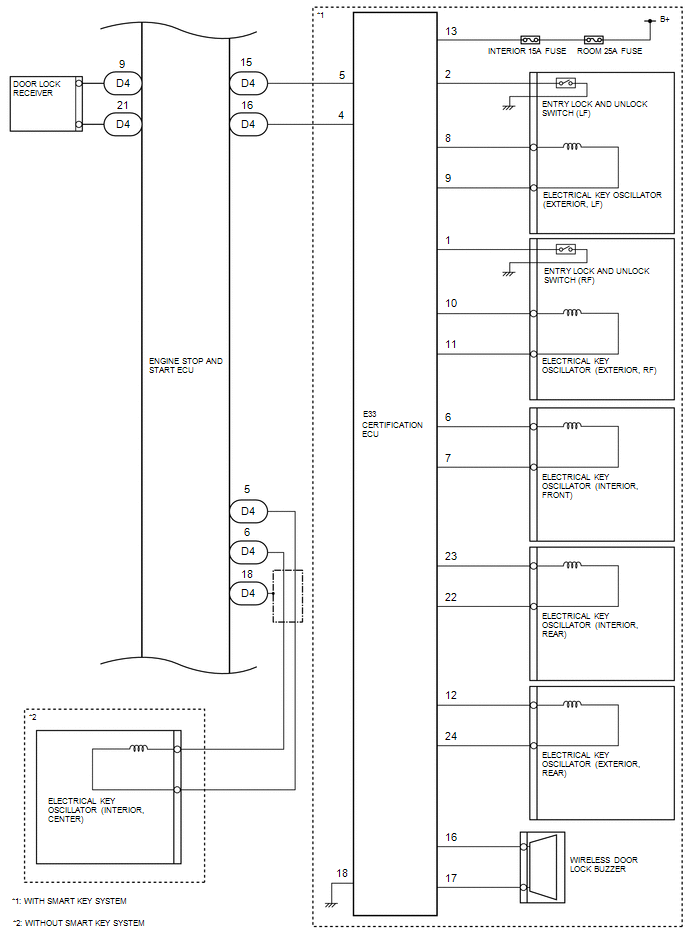

Fig 5: Wireless Door Locks Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
QUICK DIAGNOSIS CHART [WIRELESS DOOR LOCK]

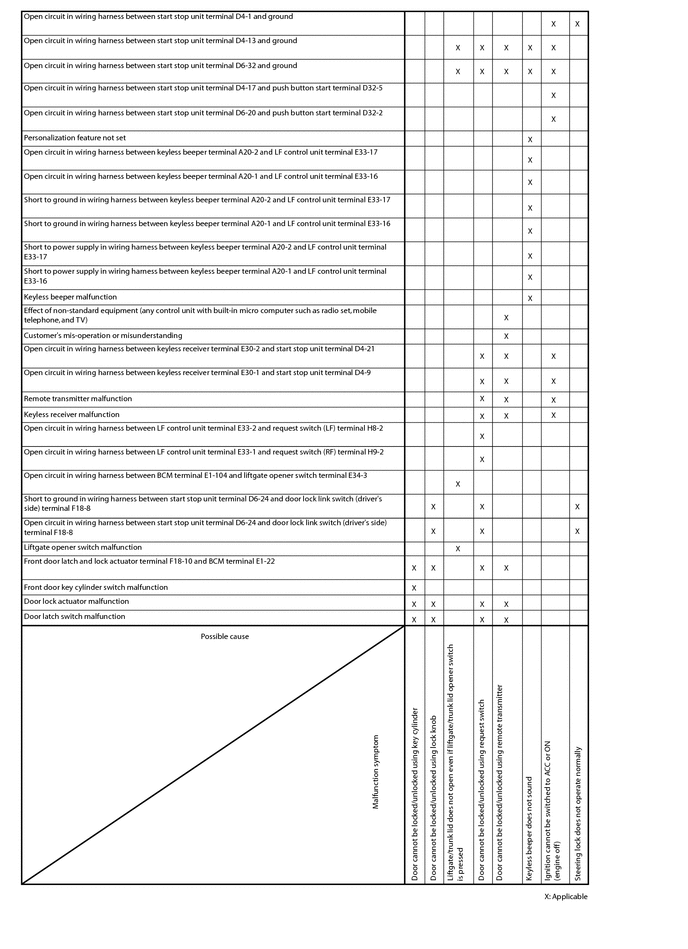

Fig 6: Wireless Door Lock Quick Diagnosis Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
