Removal [07/2016 - ]: Procedure

Refer to REMOVAL [07/2016 - ]

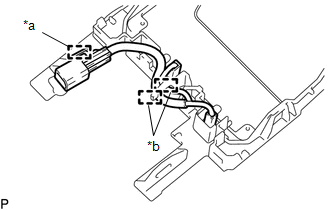

1. Disengage the clamp and 2 guides.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   *a	Clamp
   *b	Guide

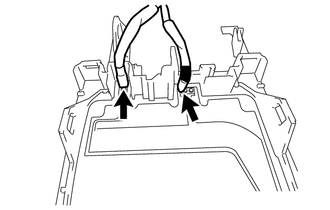

2. Disconnect the 2 connectors to remove the pre-collision city heater wire.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

• Perform this step only when replacement of the pre-collision city heater is necessary, because it is a non-reusable part.
• If the pre-collision city heater has been removed, replace it with a new one.

1. If the ambient temperature is lower than 15°C:
   1. Using a heat light, heat the pre-collision city heater and windshield glass surface.
      HEATING TEMPERATURE



      Item	Temperature
      Pre-collision city heater	15 to 80°C (59 to 176°F)
      Windshield glass	15 to 80°C (59 to 176°F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      NOTE:

      Do not heat the pre-collision city heater or windshield glass excessively.

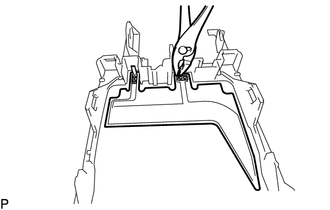

2. Using a plier, and remove the pre-collision city heater as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
