System Diagrams

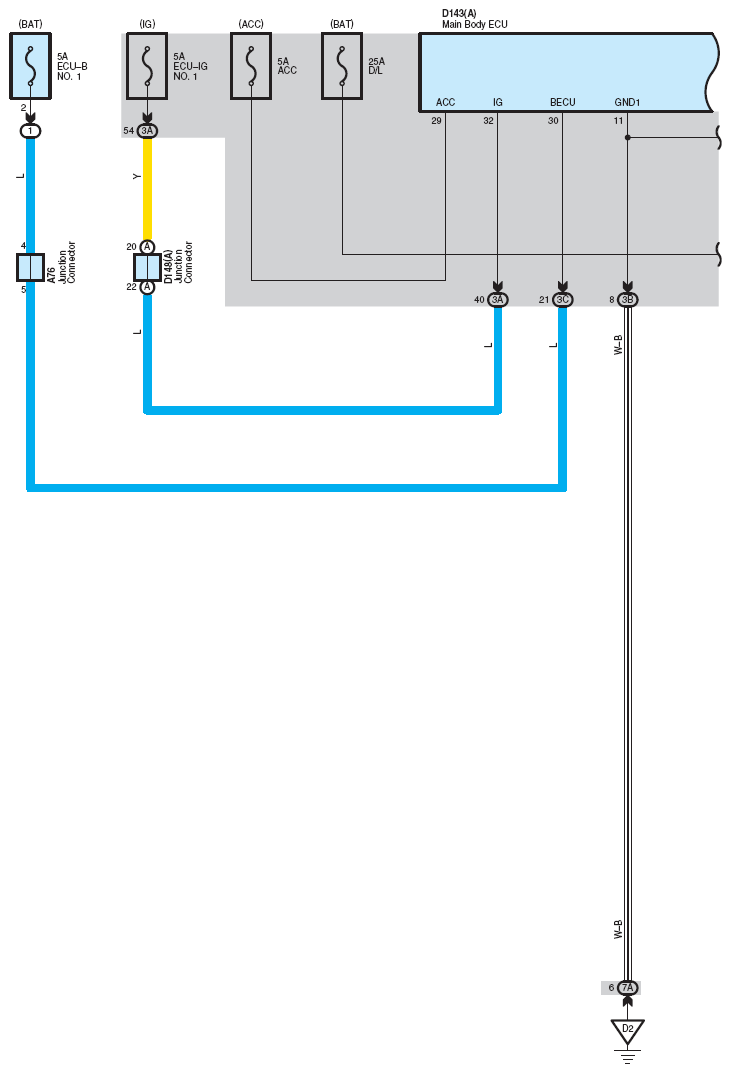

Fig 1: Wireless Door Lock Control - Hatchback (1 Of 6)

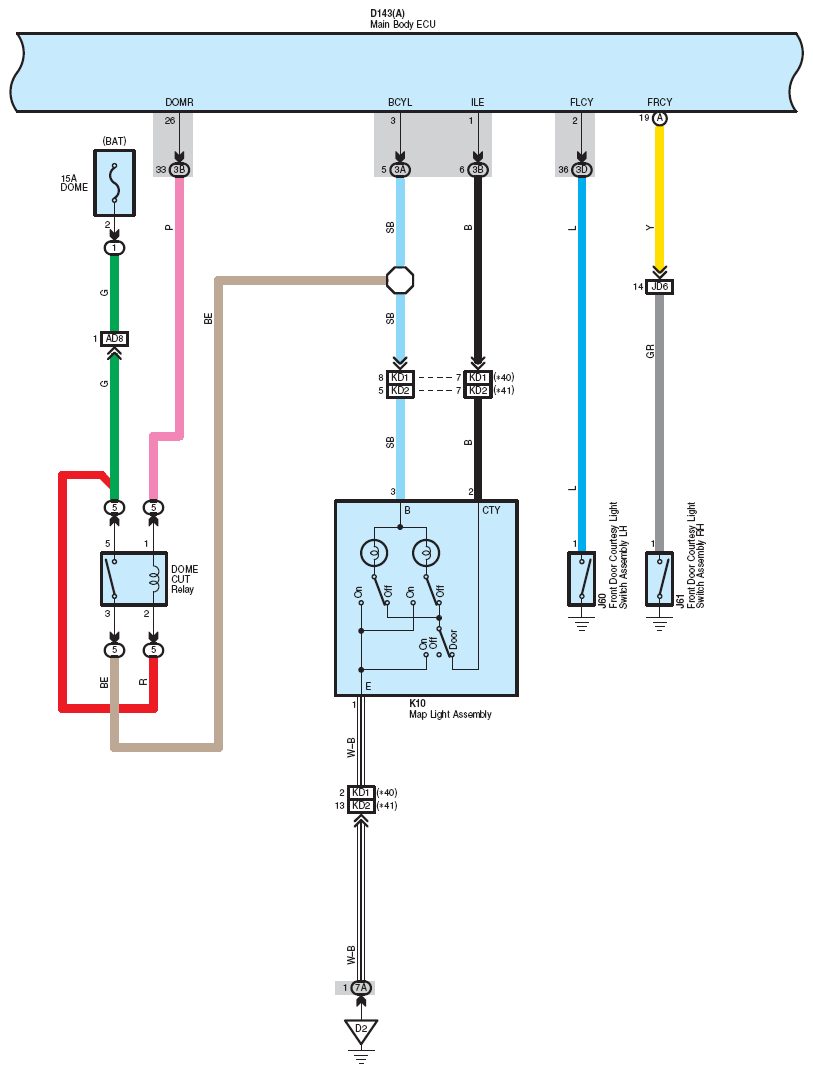

Fig 2: Wireless Door Lock Control - Hatchback (2 Of 6)

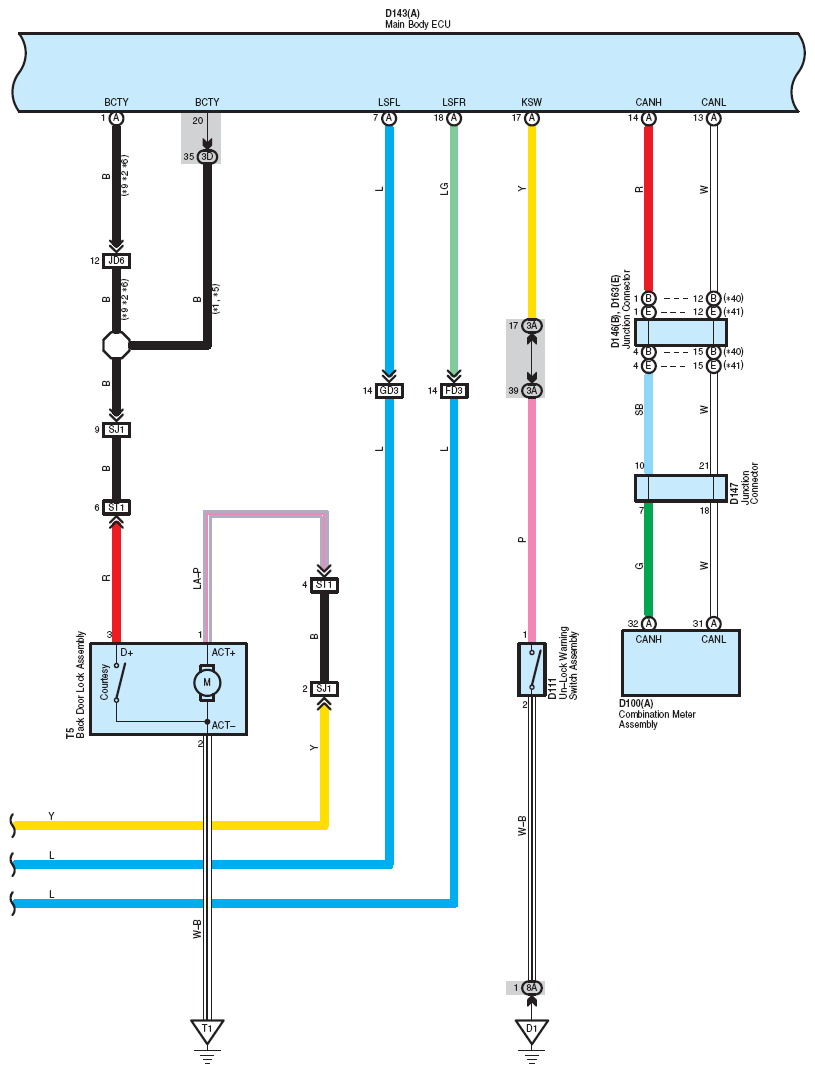

Fig 3: Wireless Door Lock Control - Hatchback (3 Of 6)

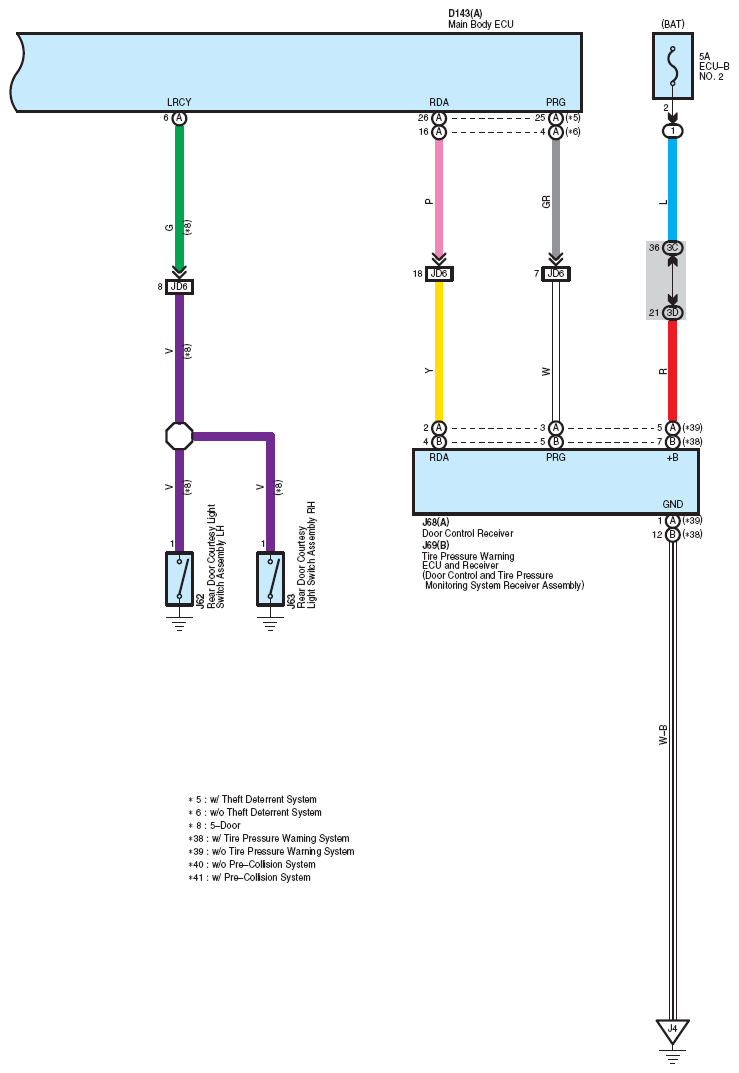

Fig 4: Wireless Door Lock Control - Hatchback (4 Of 6)

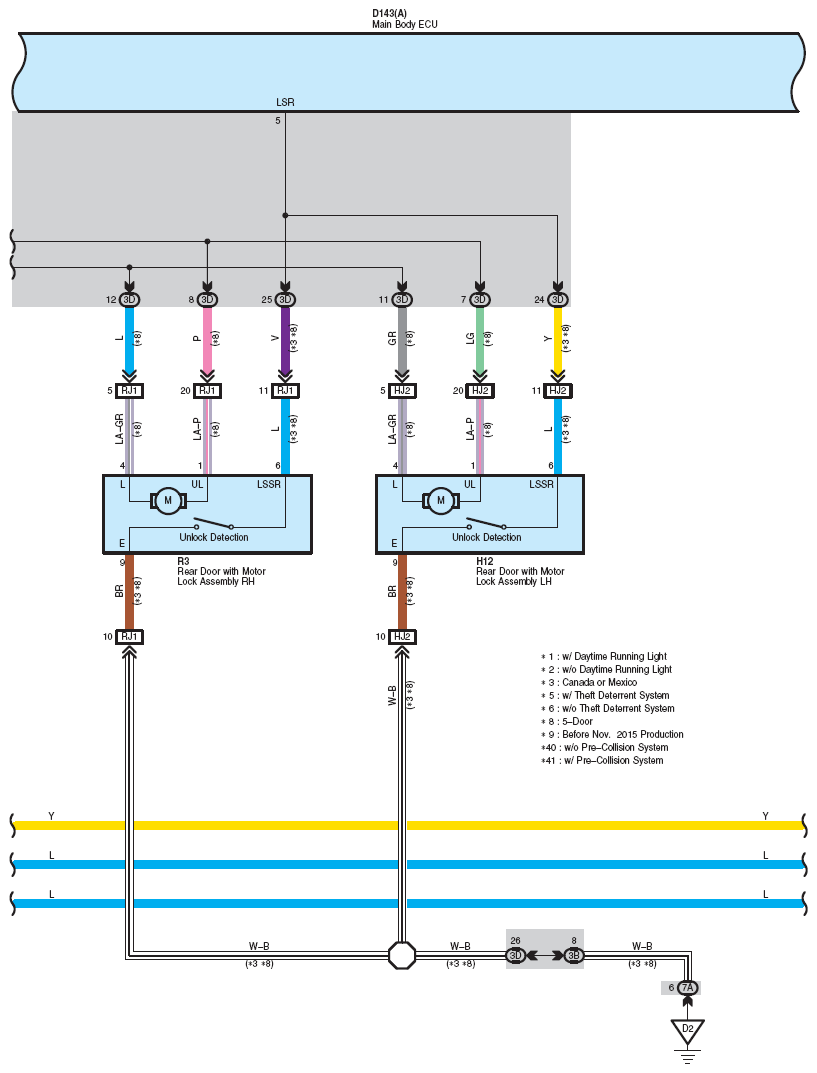

Fig 5: Wireless Door Lock Control - Hatchback (5 Of 6)

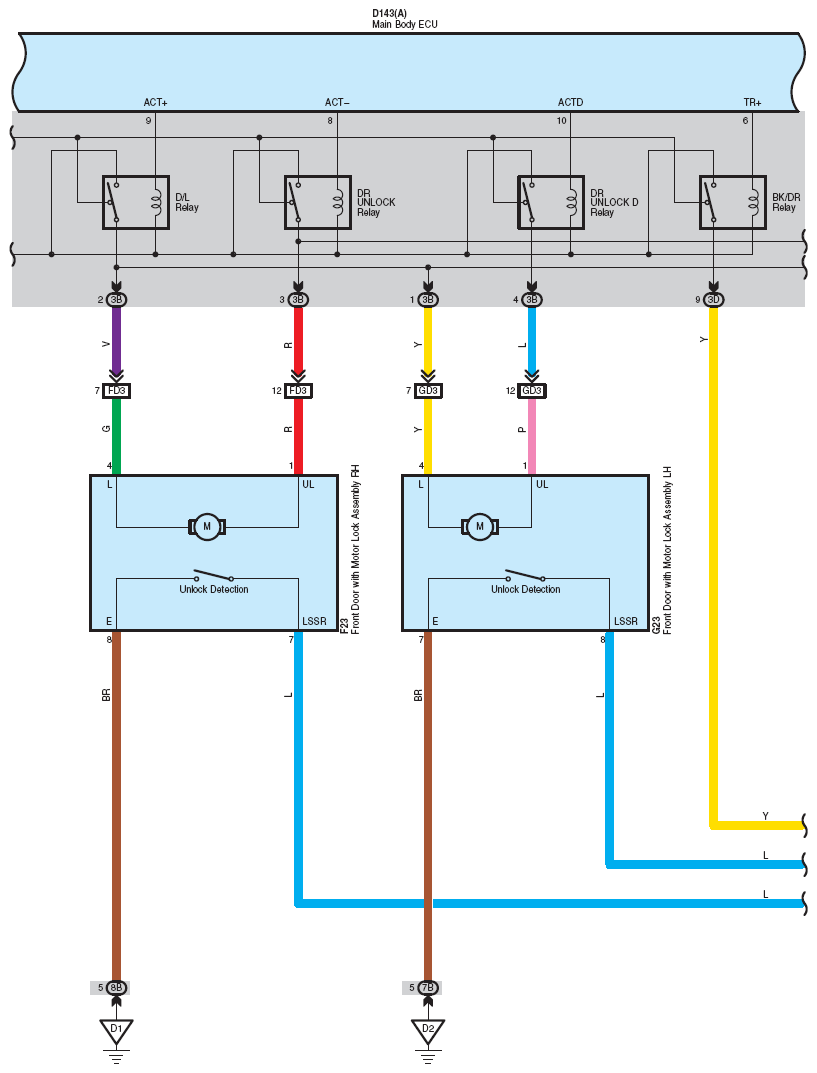

Fig 6: Wireless Door Lock Control - Hatchback (6 Of 6)
