System Diagrams

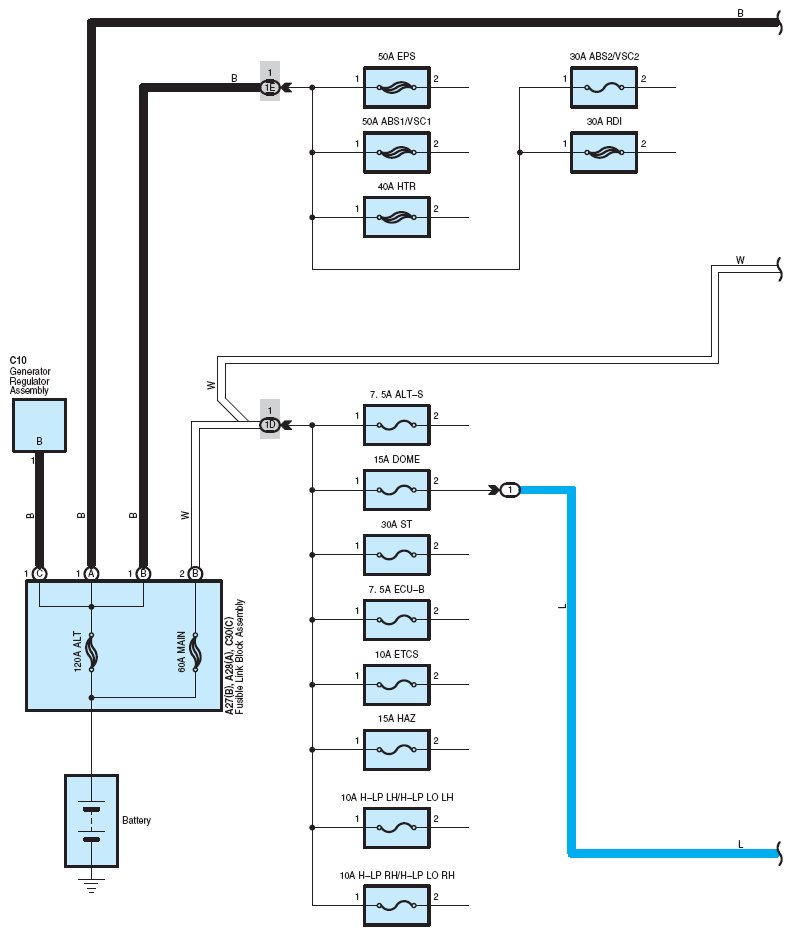

Fig 1: Power Source - Sedan (1 Of 4)
G12220141

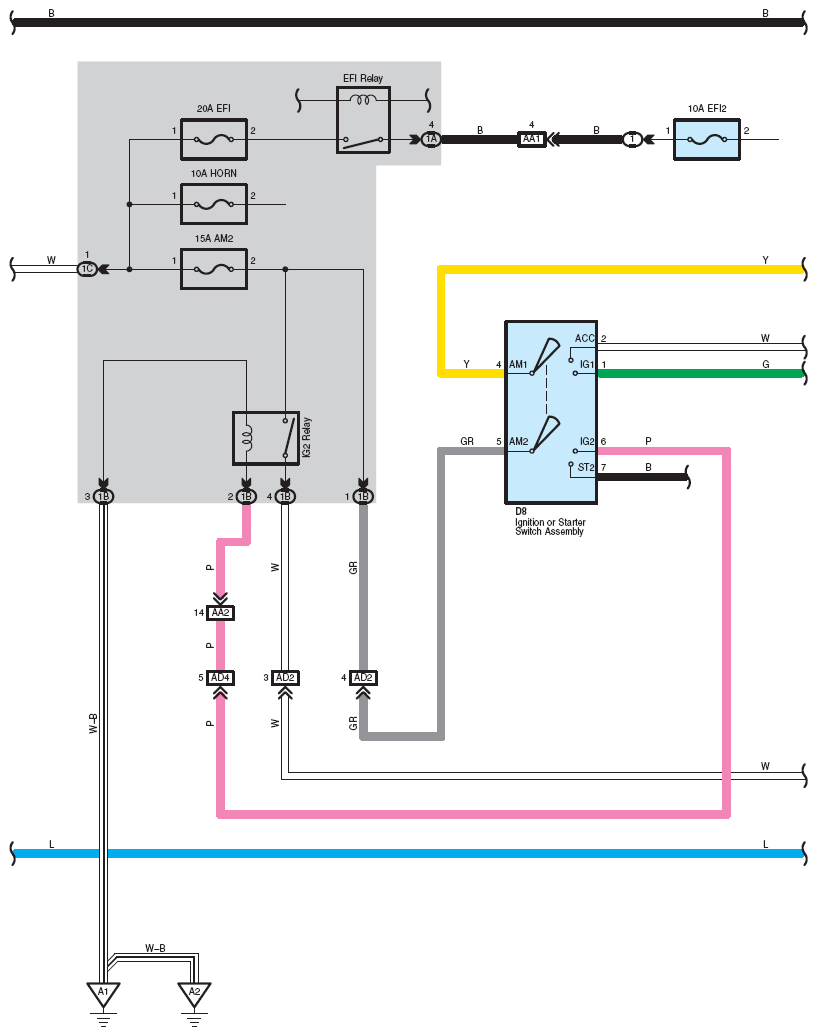

Fig 2: Power Source - Sedan (2 Of 4)
G12220142

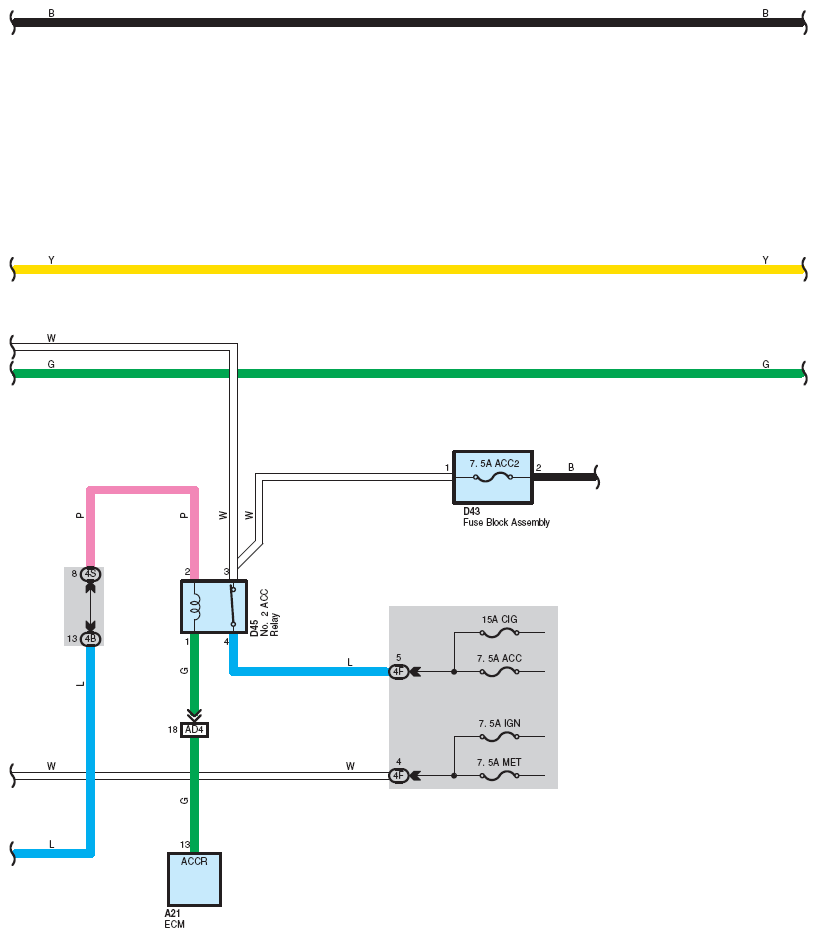

Fig 3: Power Source - Sedan (3 Of 4)
G12220143

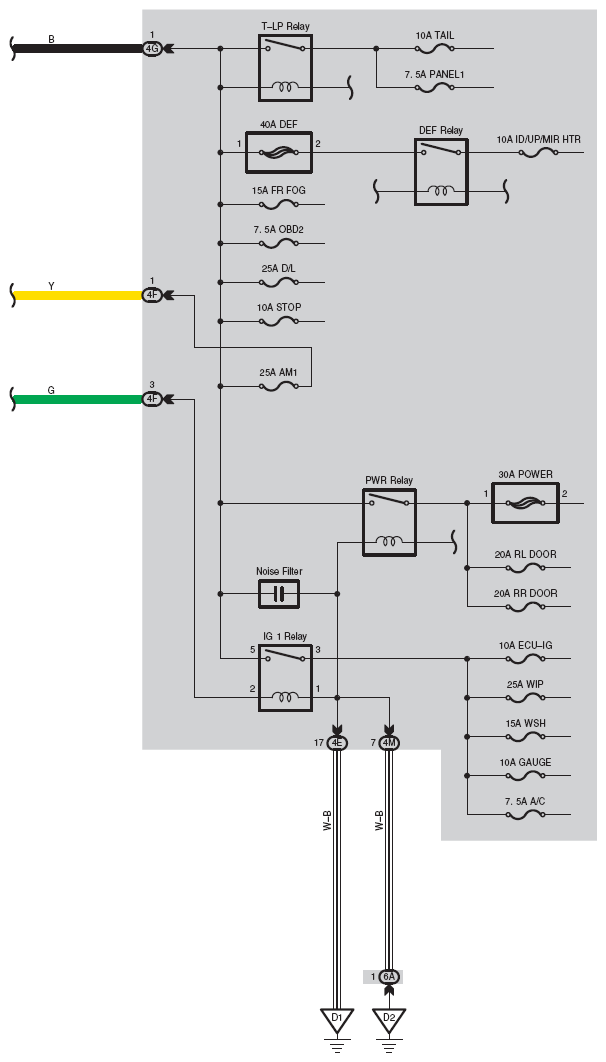

Fig 4: Power Source - Sedan (4 Of 4)
G12220144
