System Diagrams

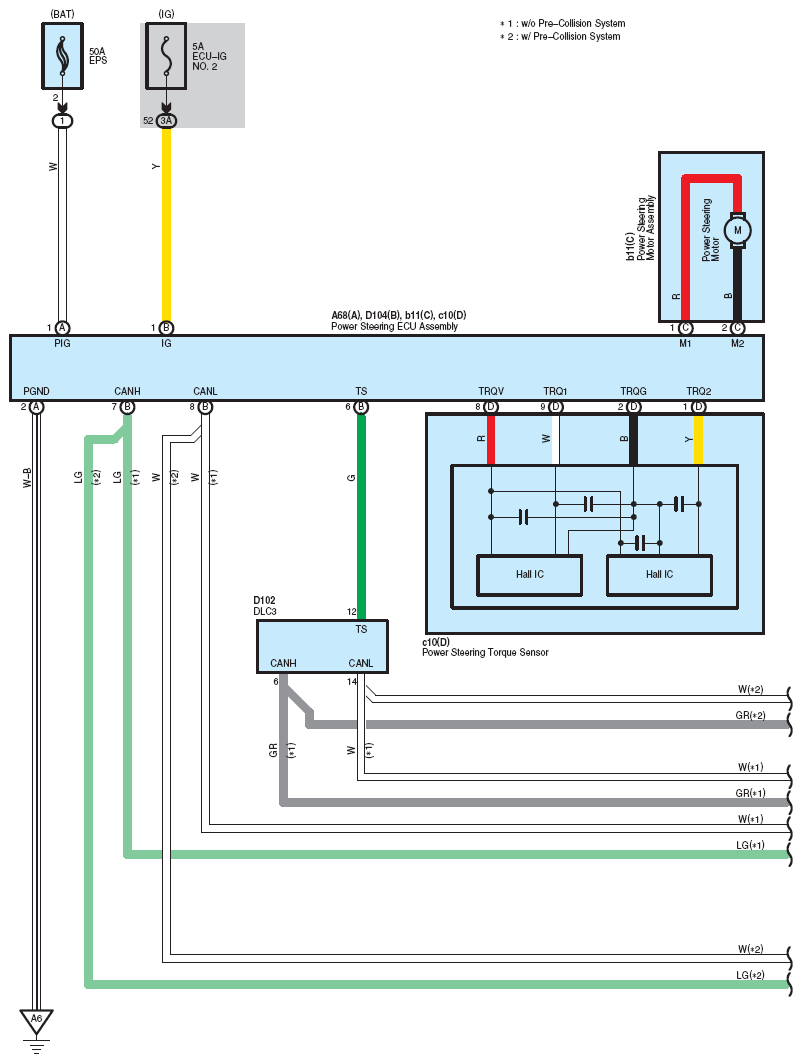

Fig 1: EPS - Hatchback (1 Of 3)

G12220019

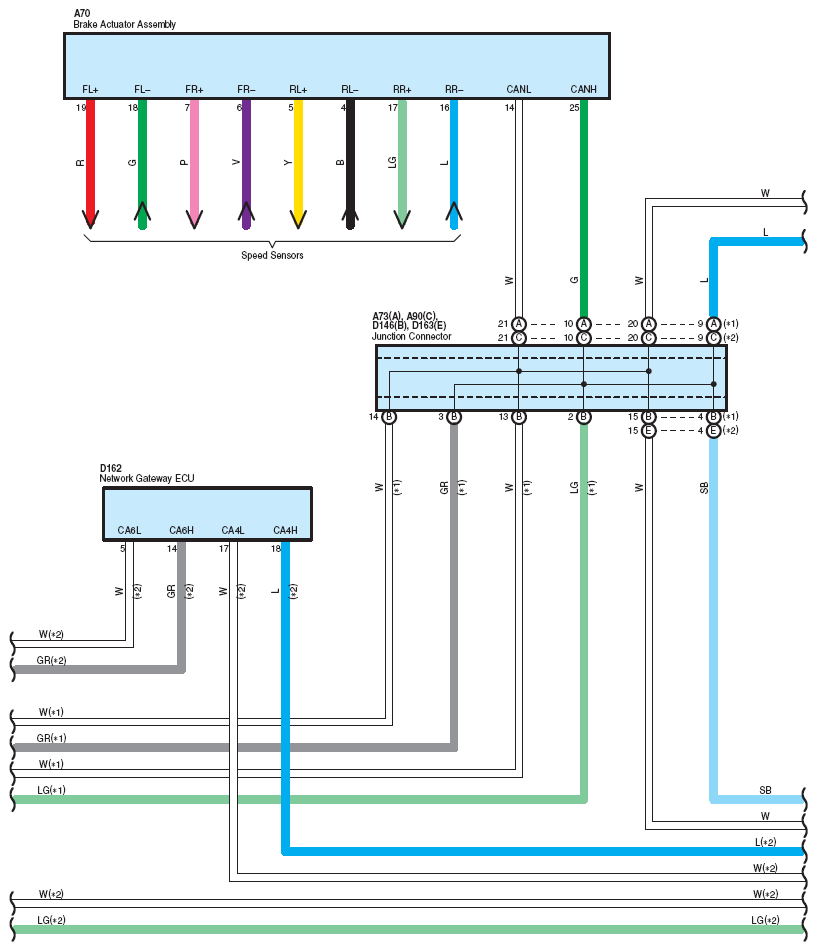

Fig 2: EPS - Hatchback (2 Of 3)

G12220020

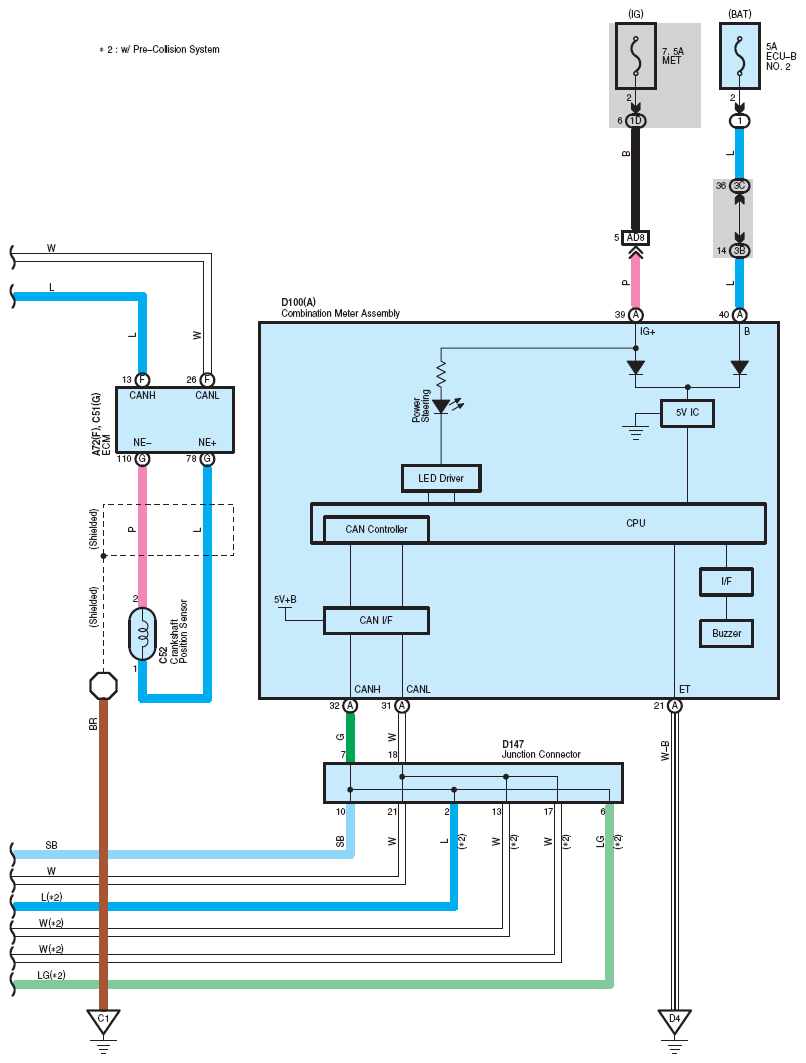

Fig 3: EPS - Hatchback (3 Of 3)

G12220021
