Body Electrical
>>
OEM System Circuits
>>
Wireless Charger System
>>
Connectors
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wireless Charger System: Connectors

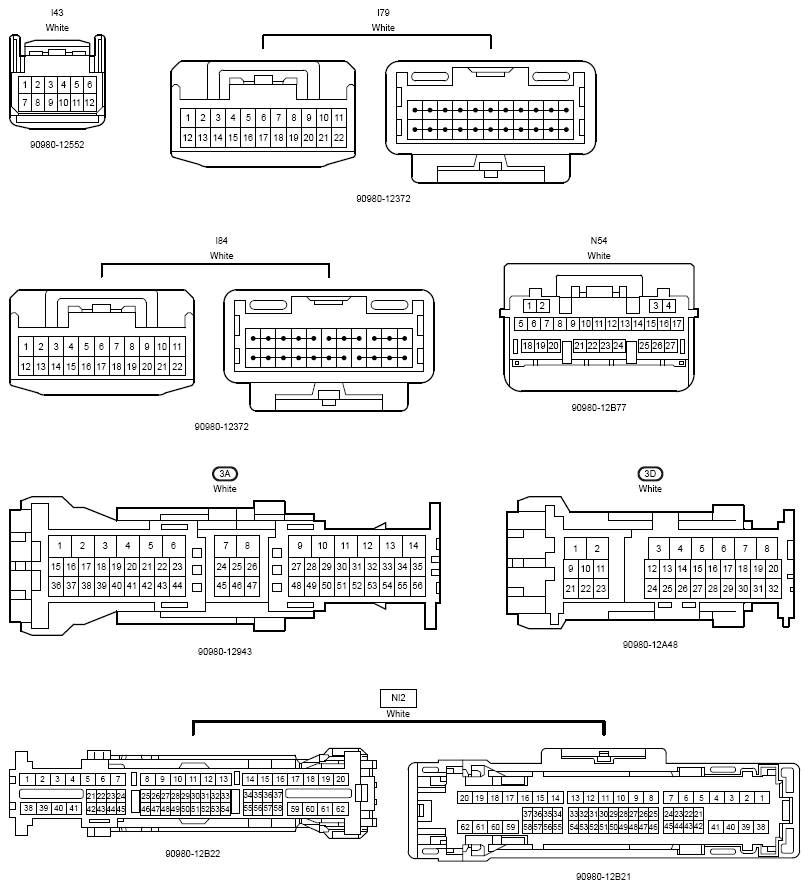

Fig 1: Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
