Air Conditioning, Remote Air Conditioning System
>>
System Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagrams

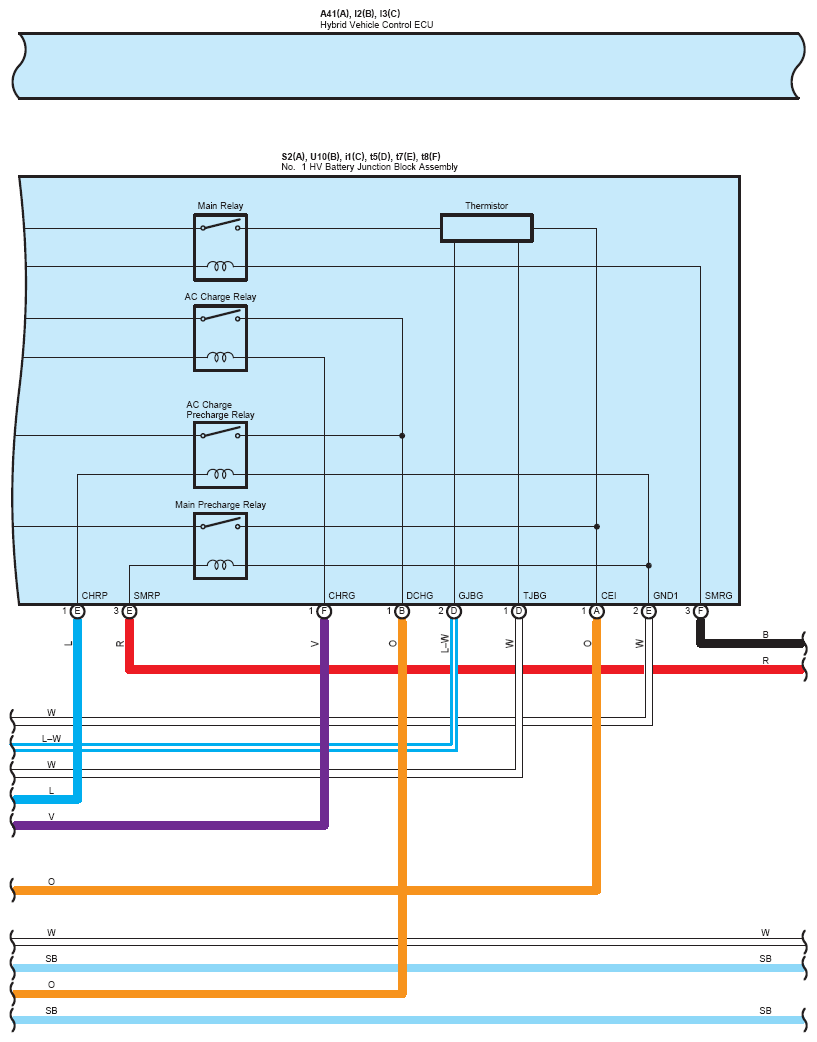

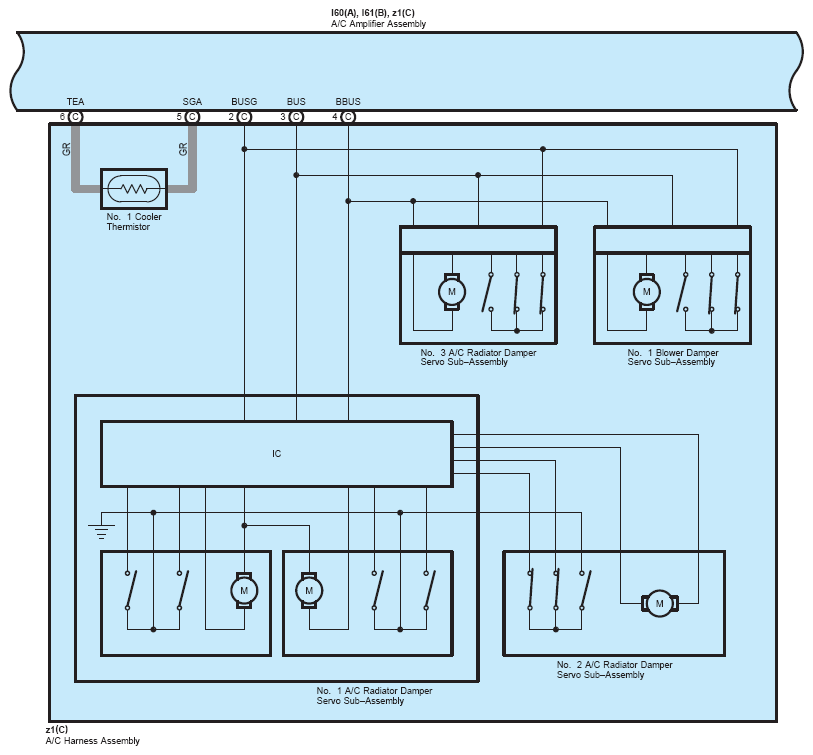

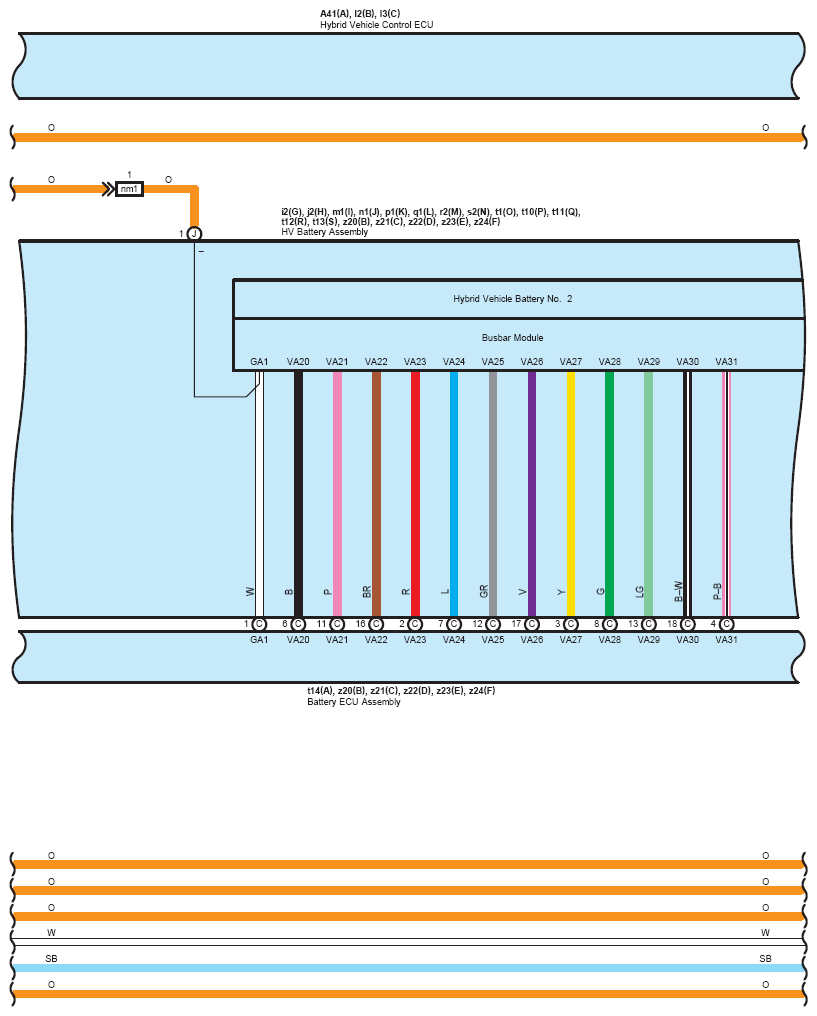

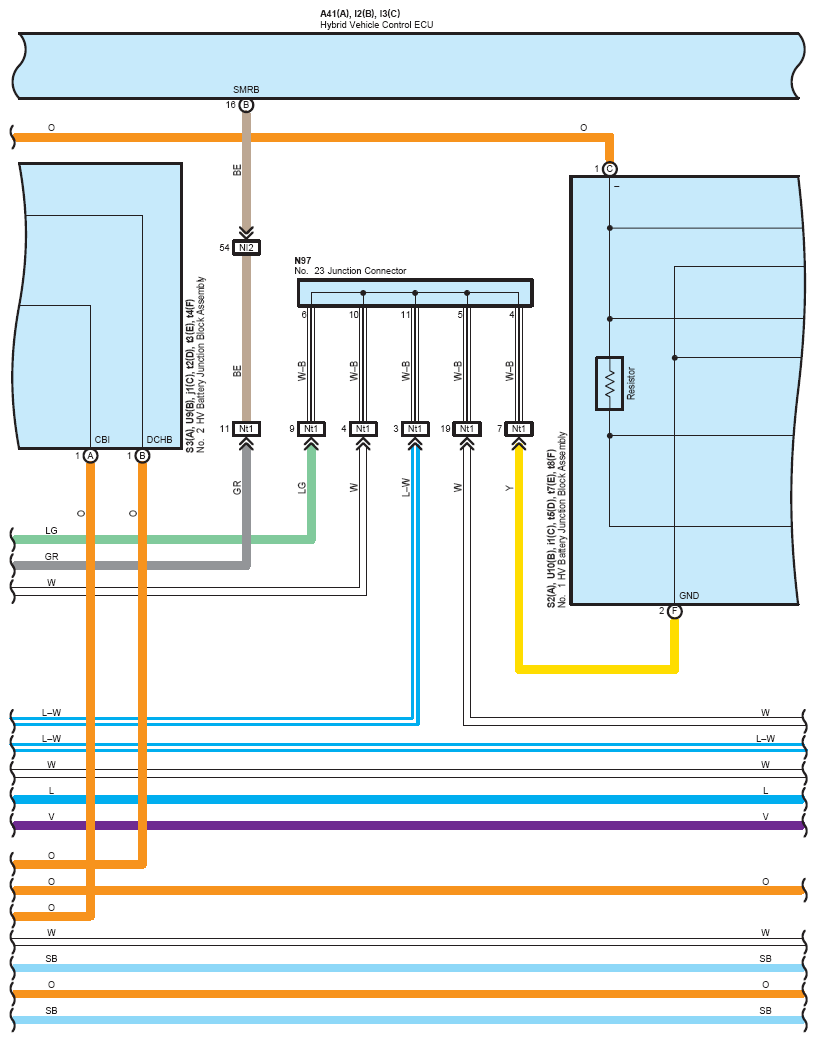

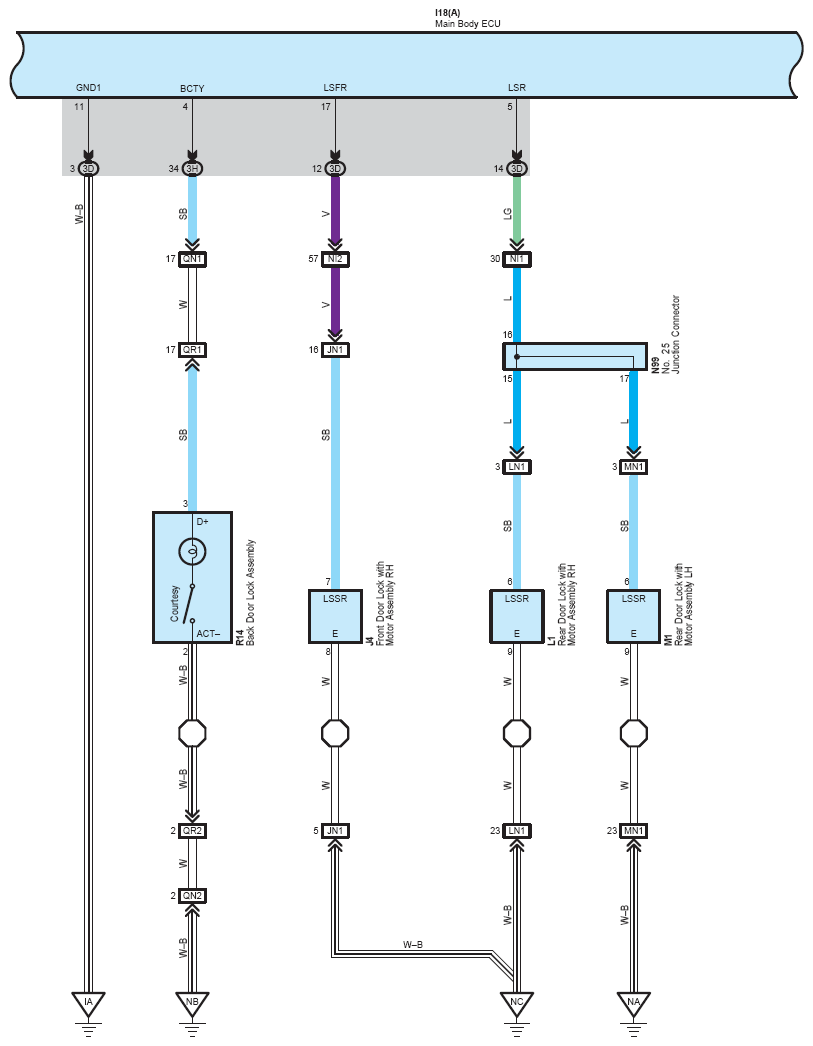

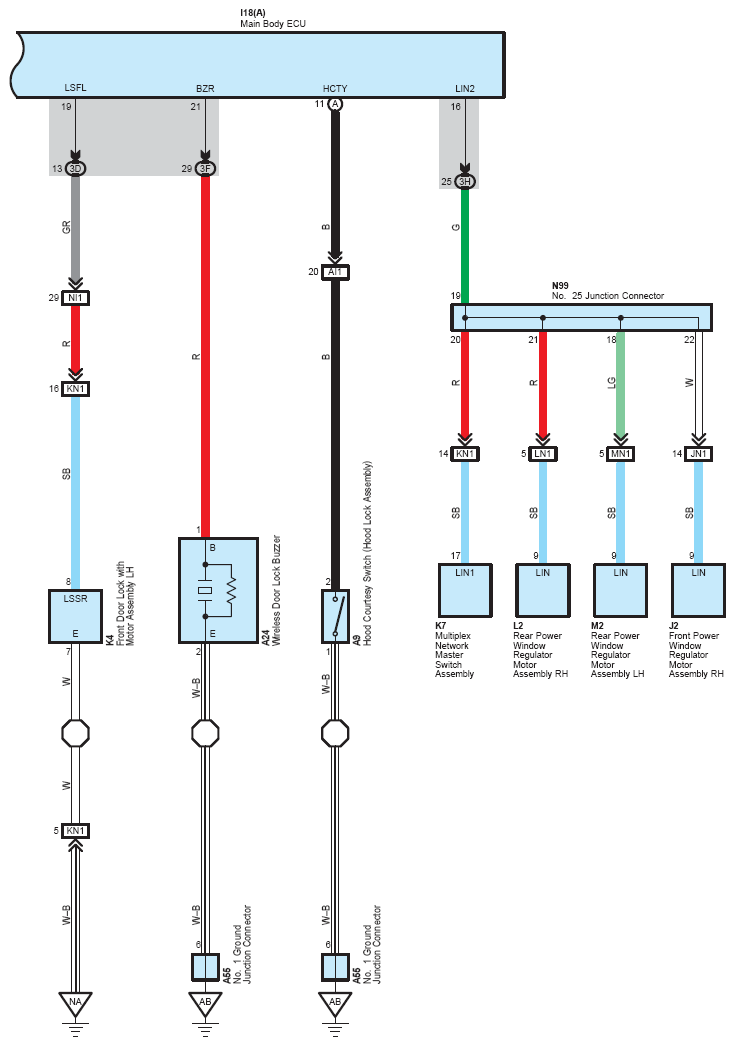

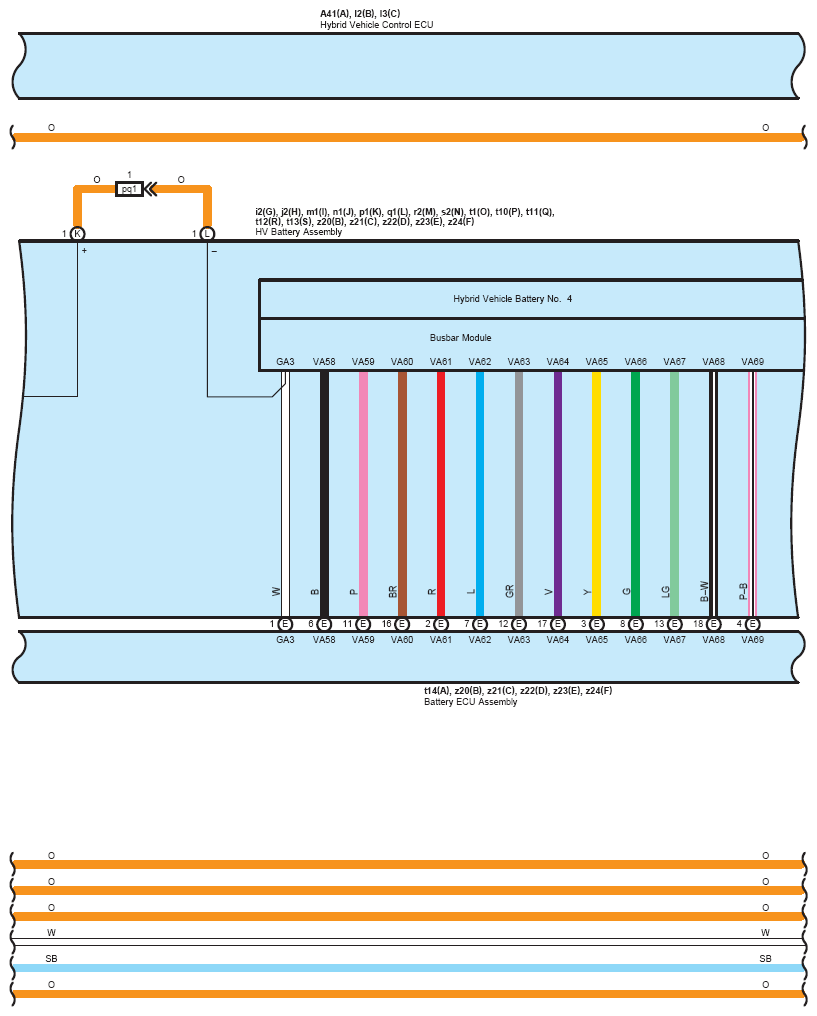

Fig 1: Air Conditioning, Remote Air Conditioning System (1 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

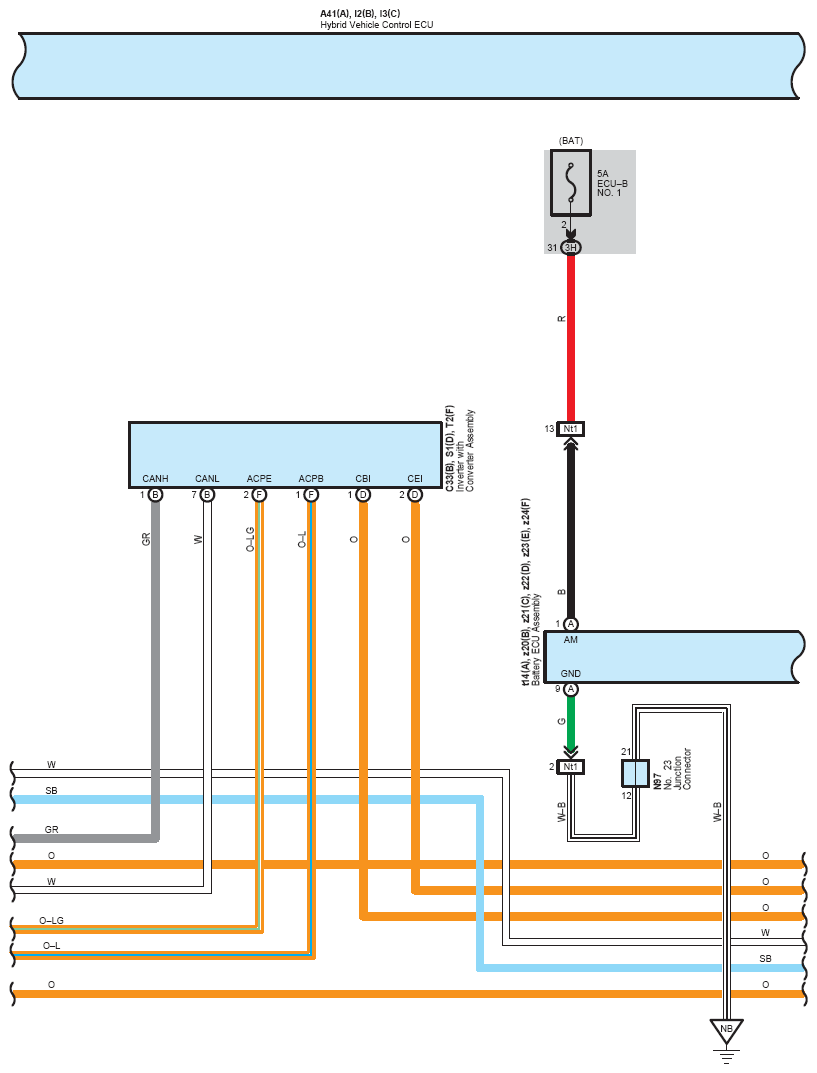

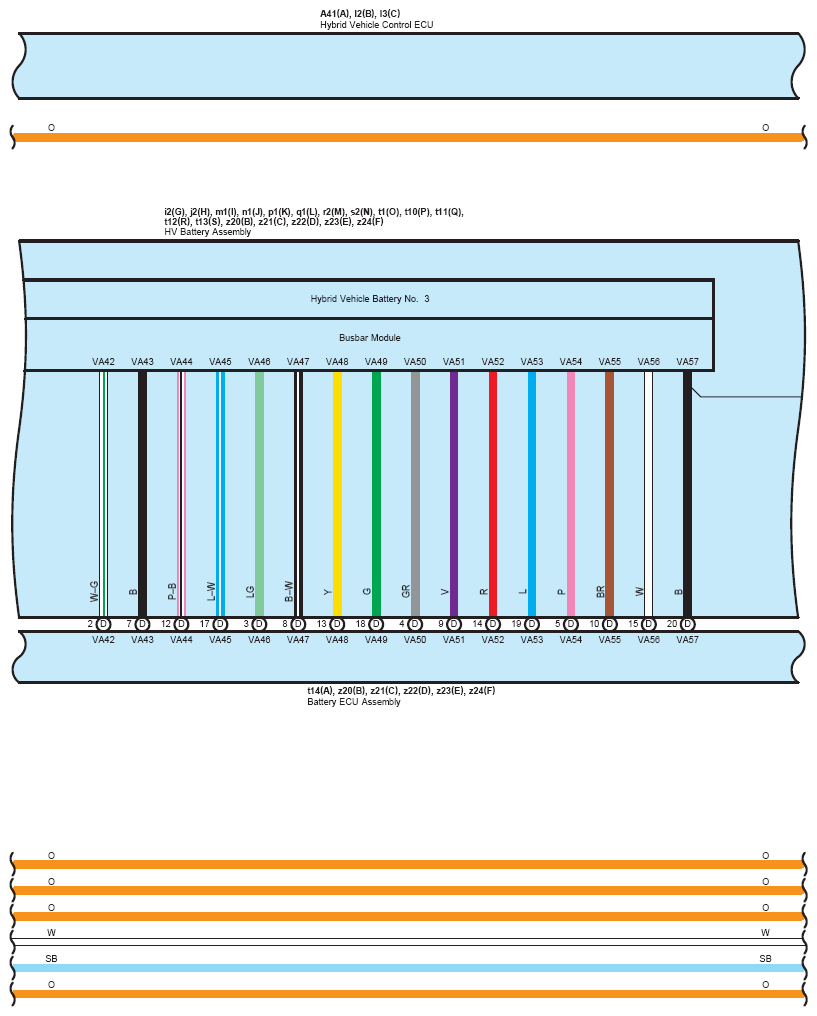

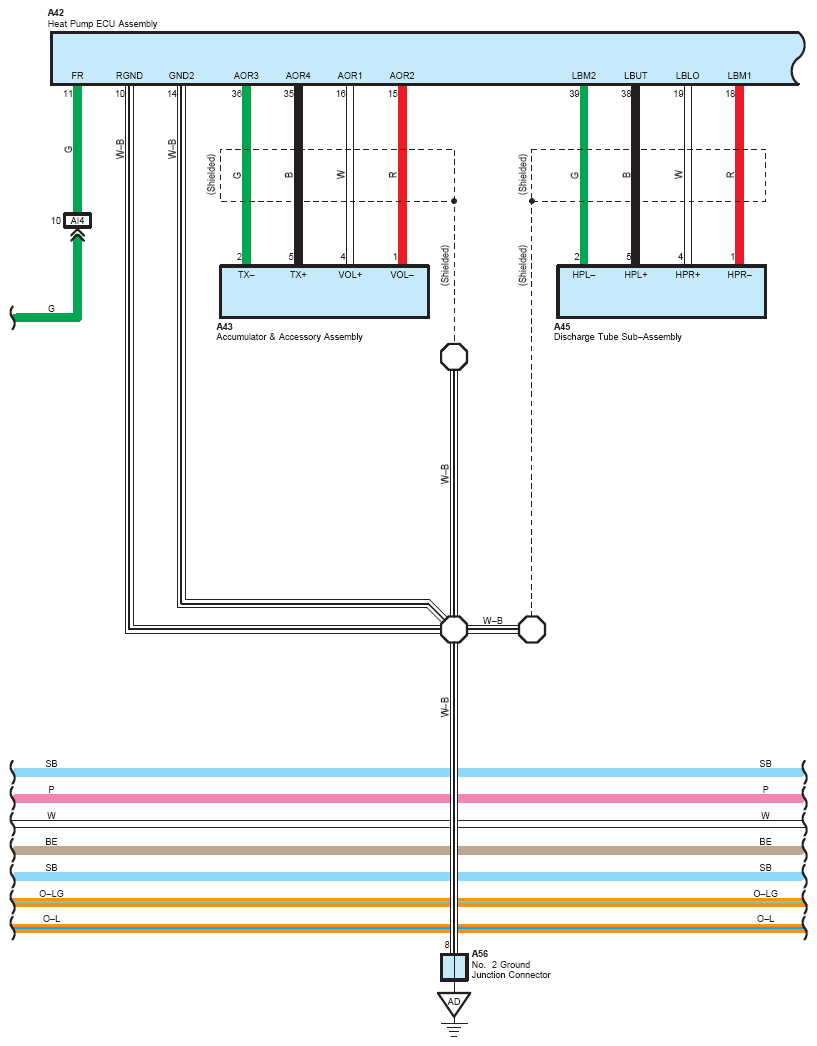

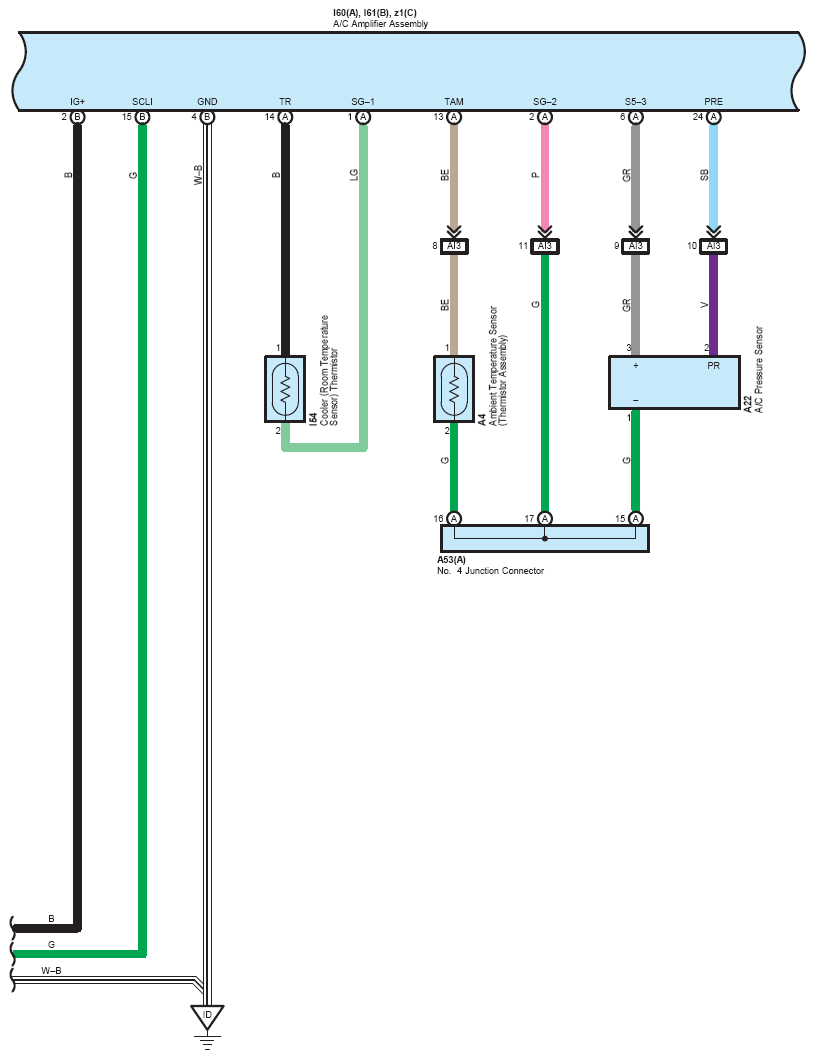

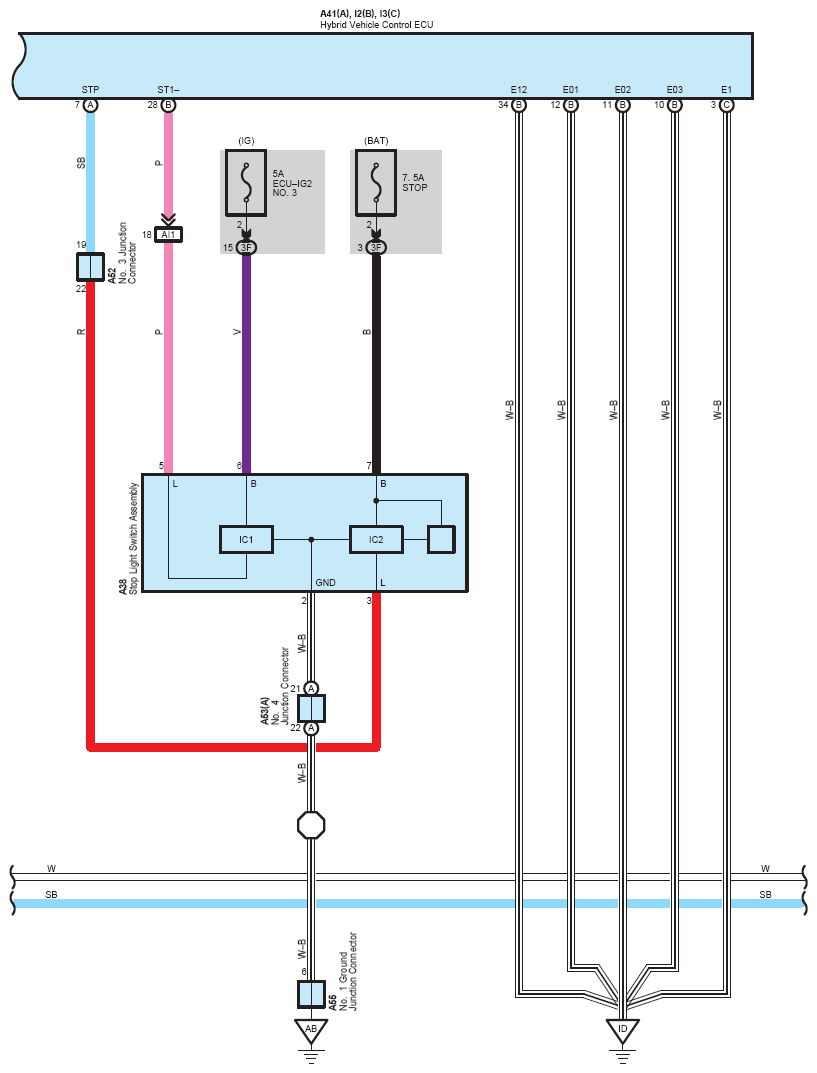

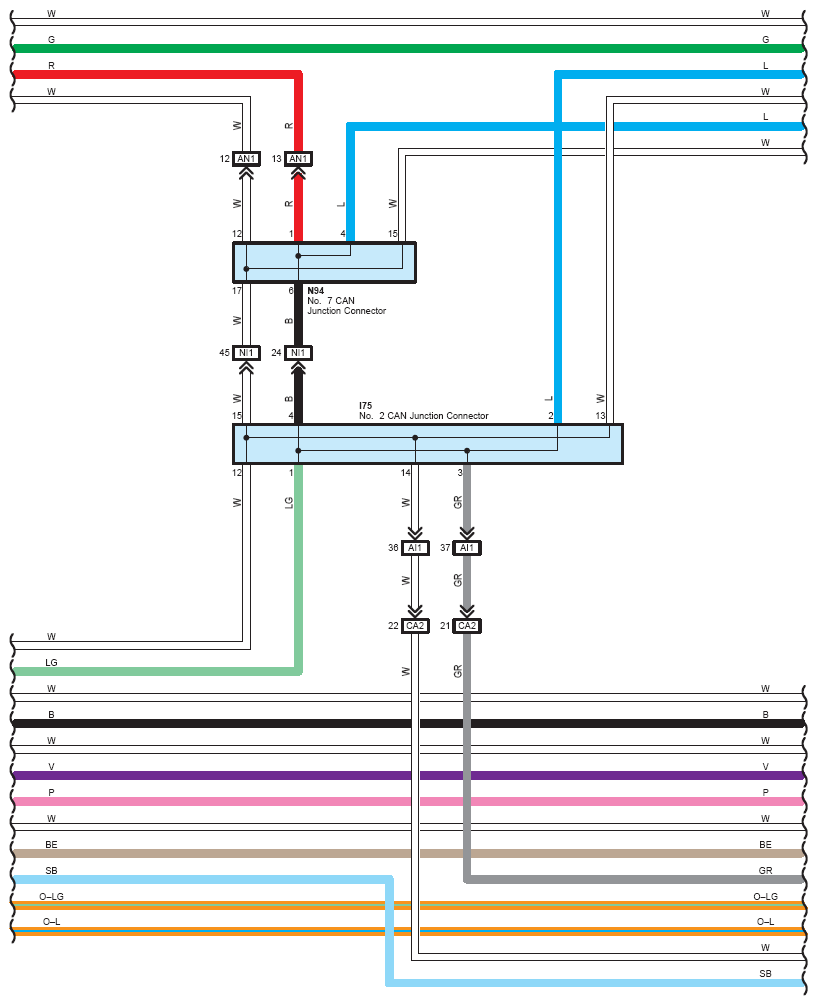

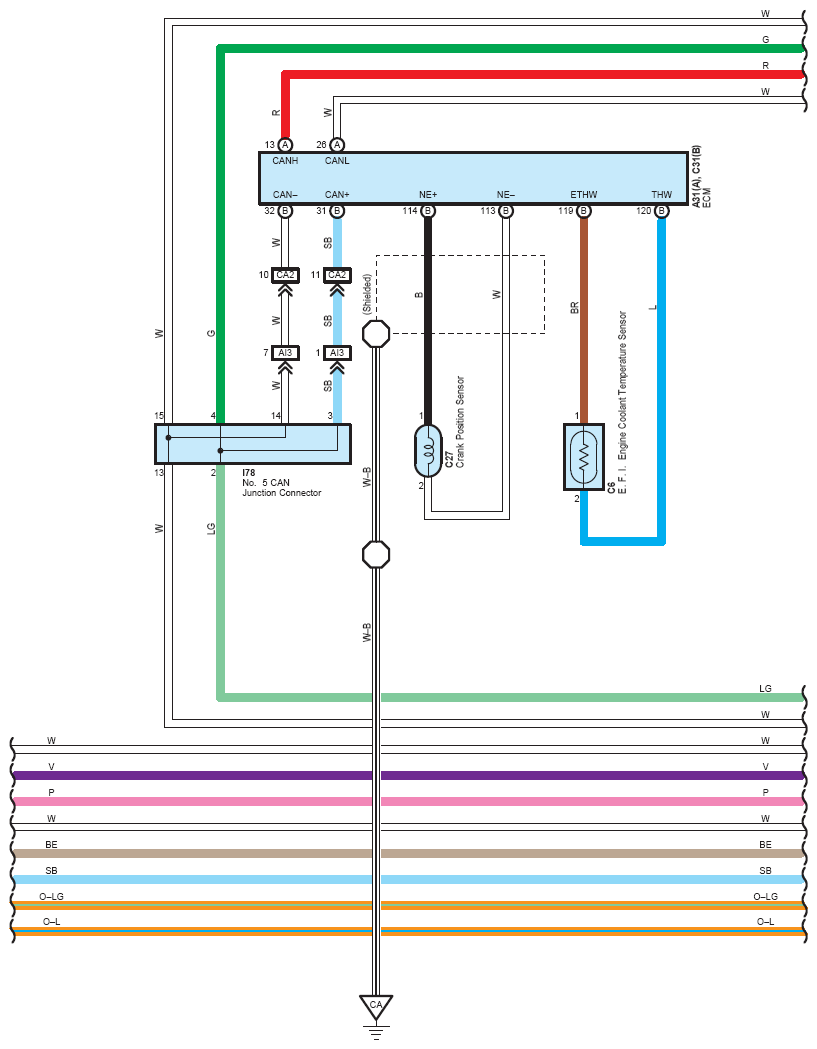

Fig 2: Air Conditioning, Remote Air Conditioning System (2 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

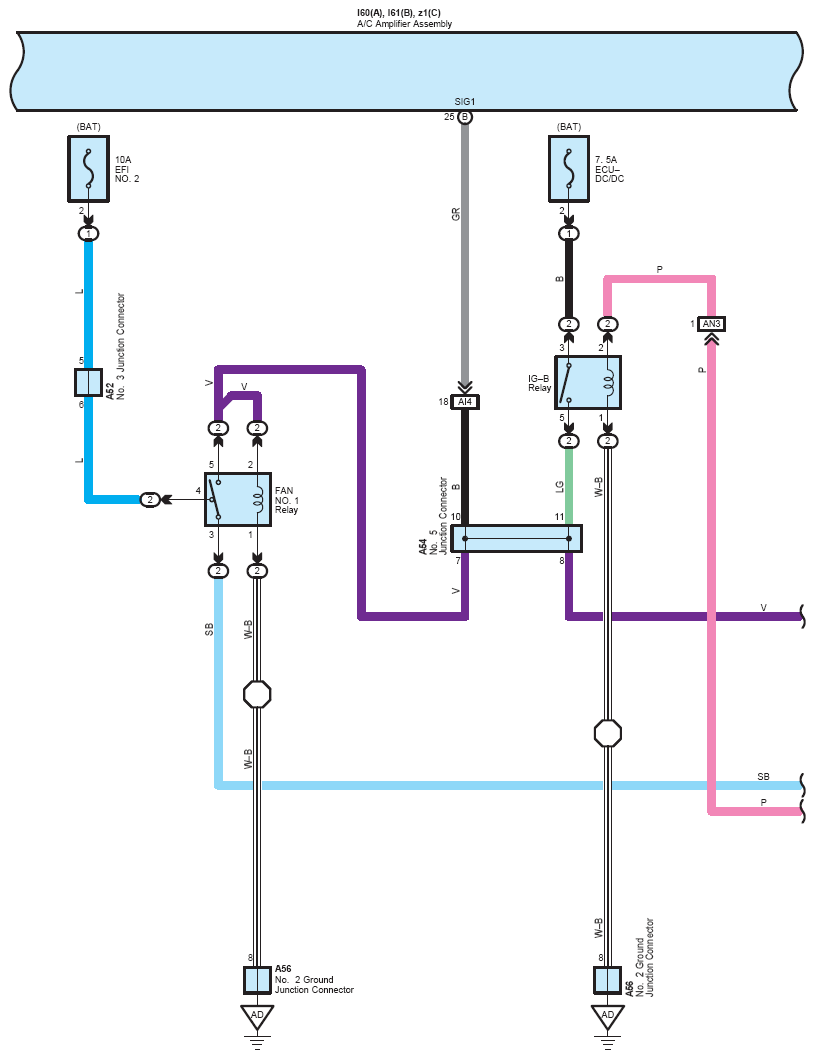

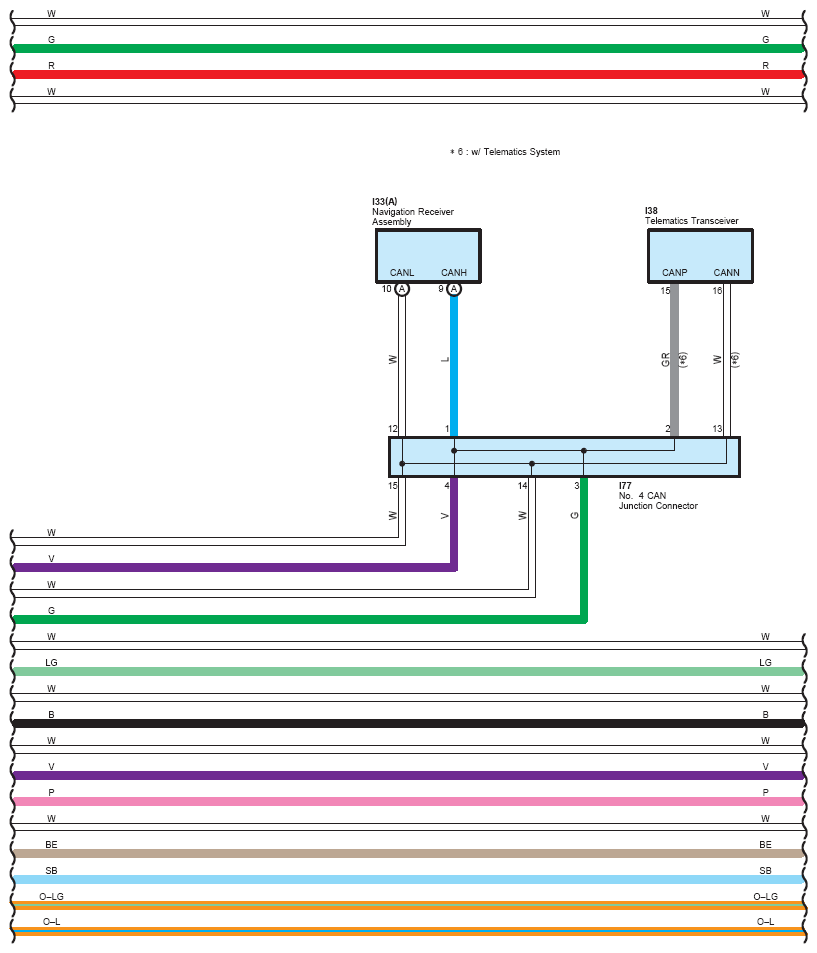

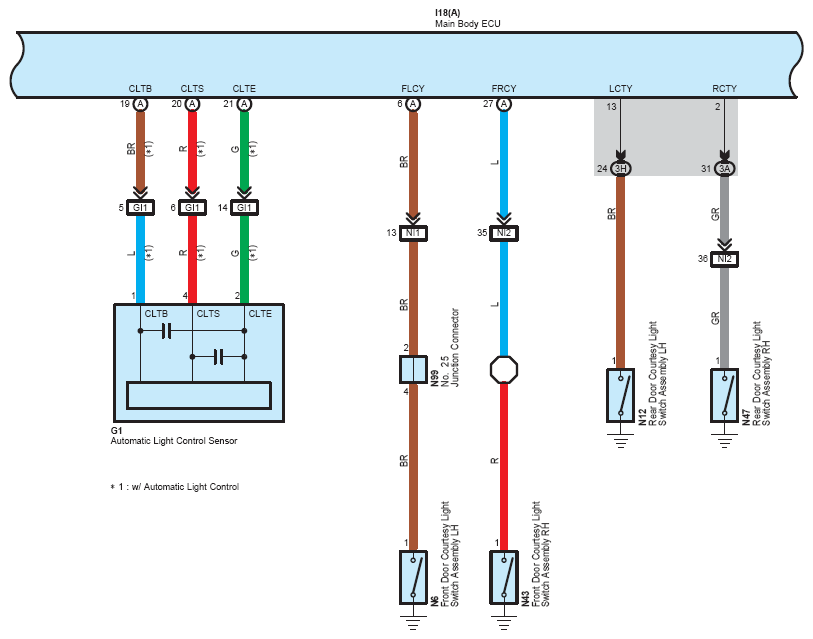

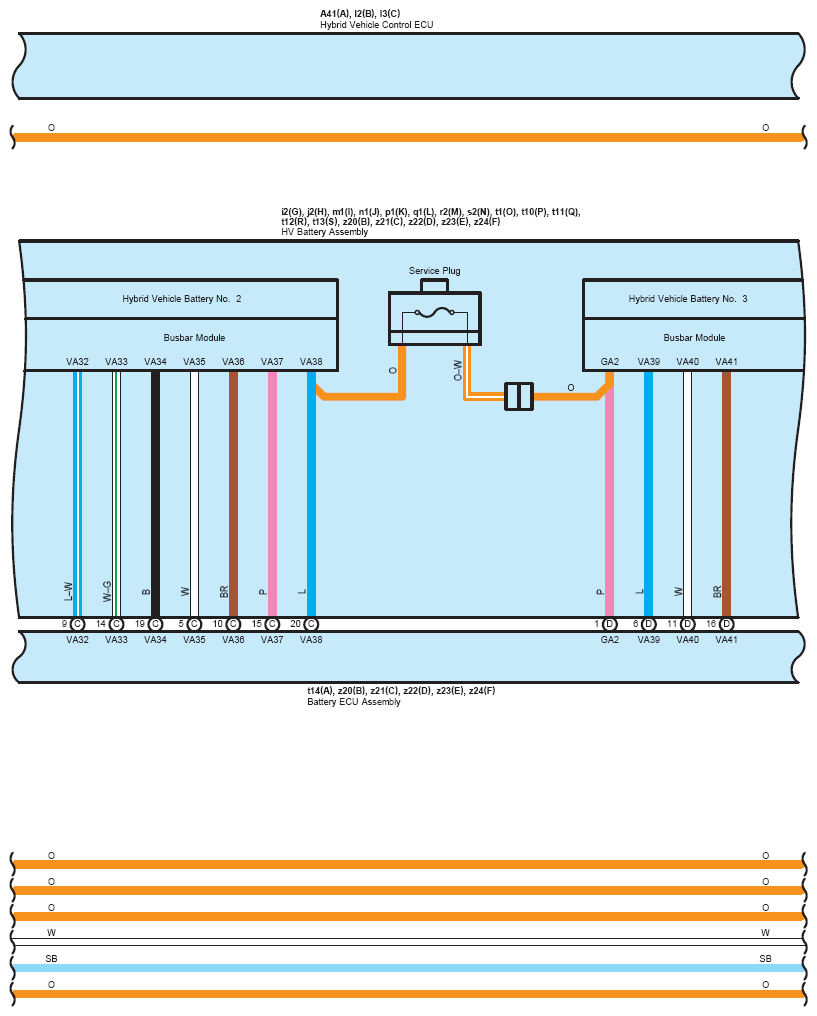

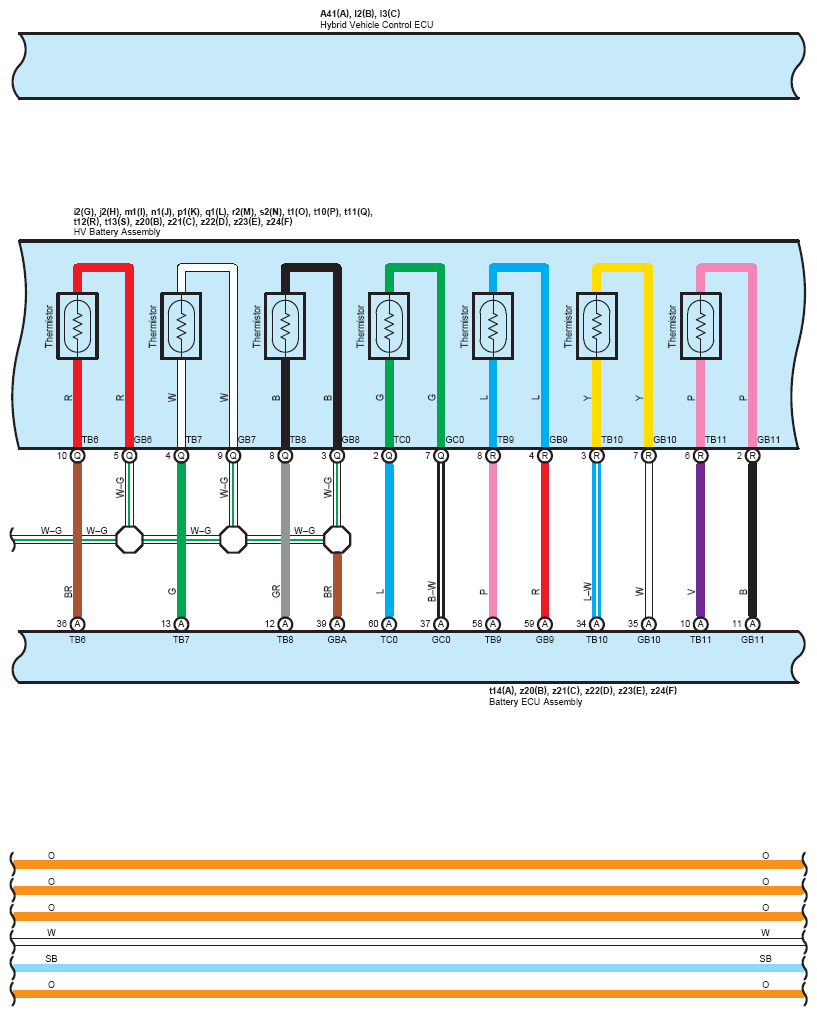

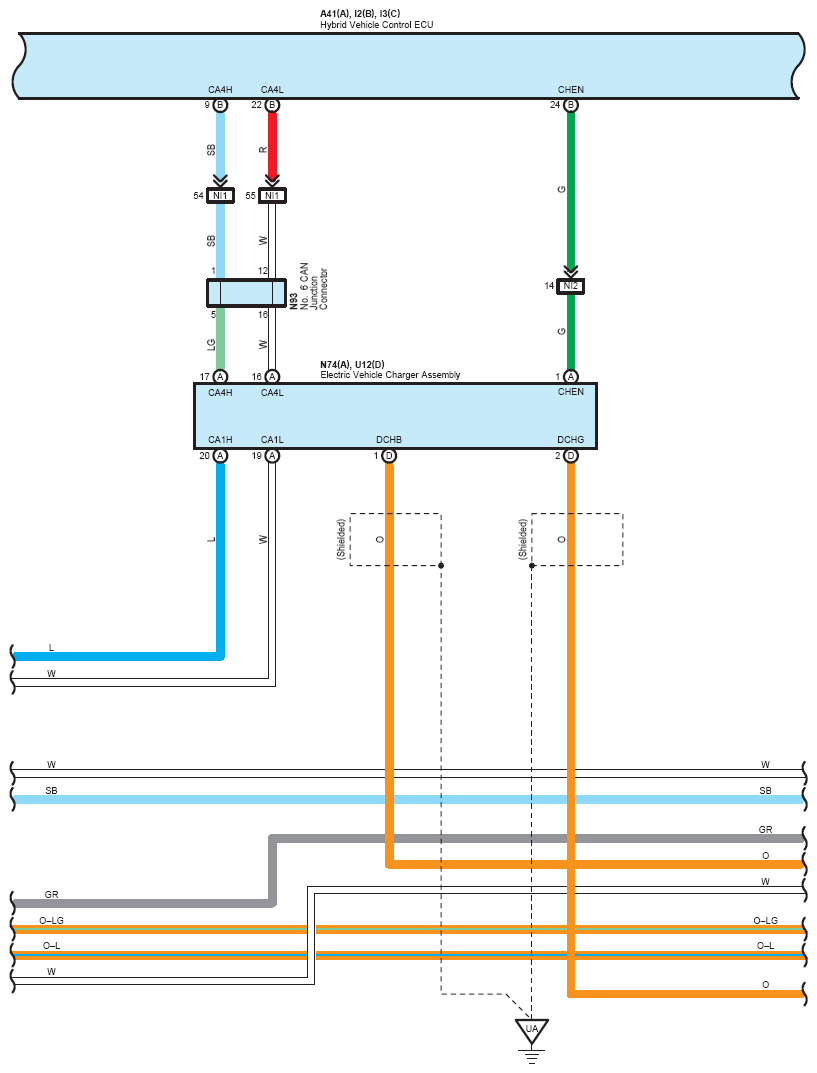

Fig 3: Air Conditioning, Remote Air Conditioning System (3 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

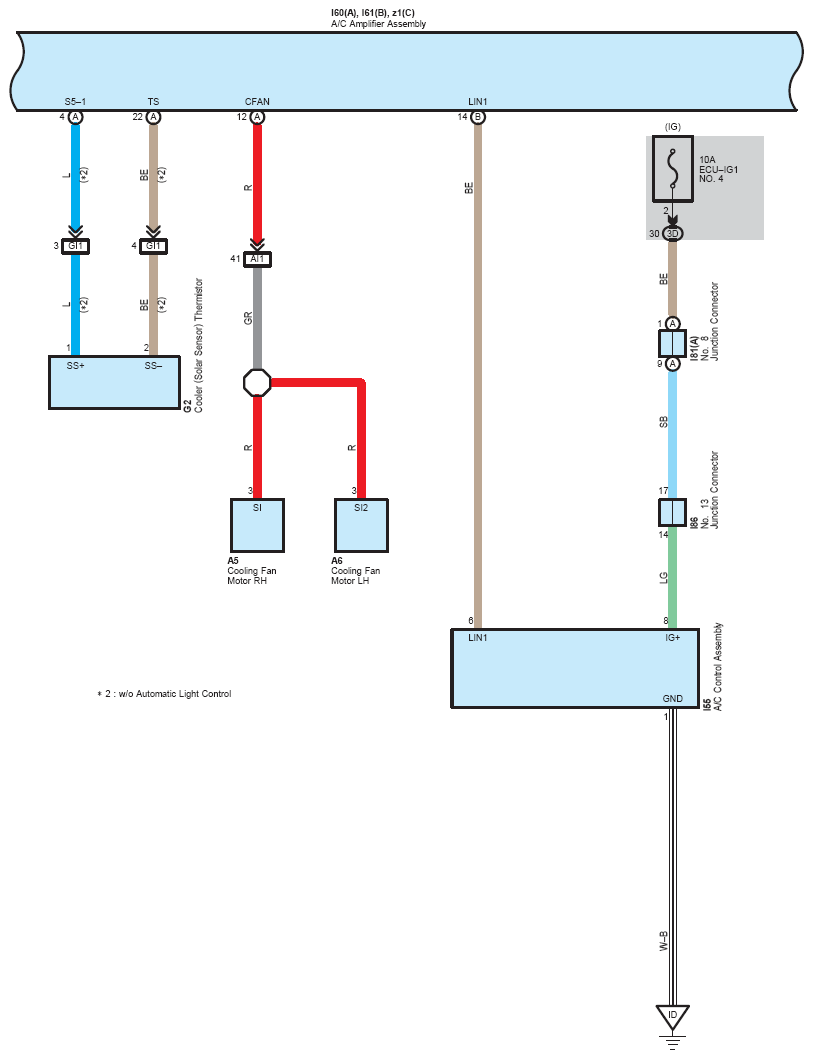

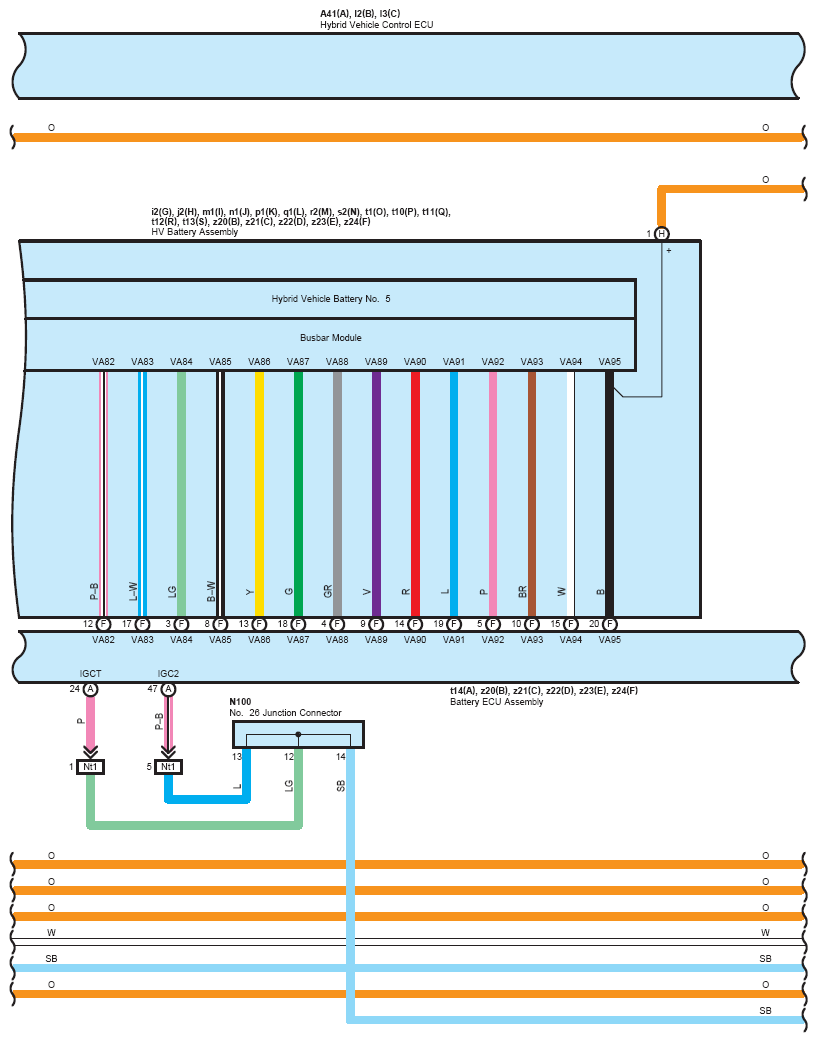

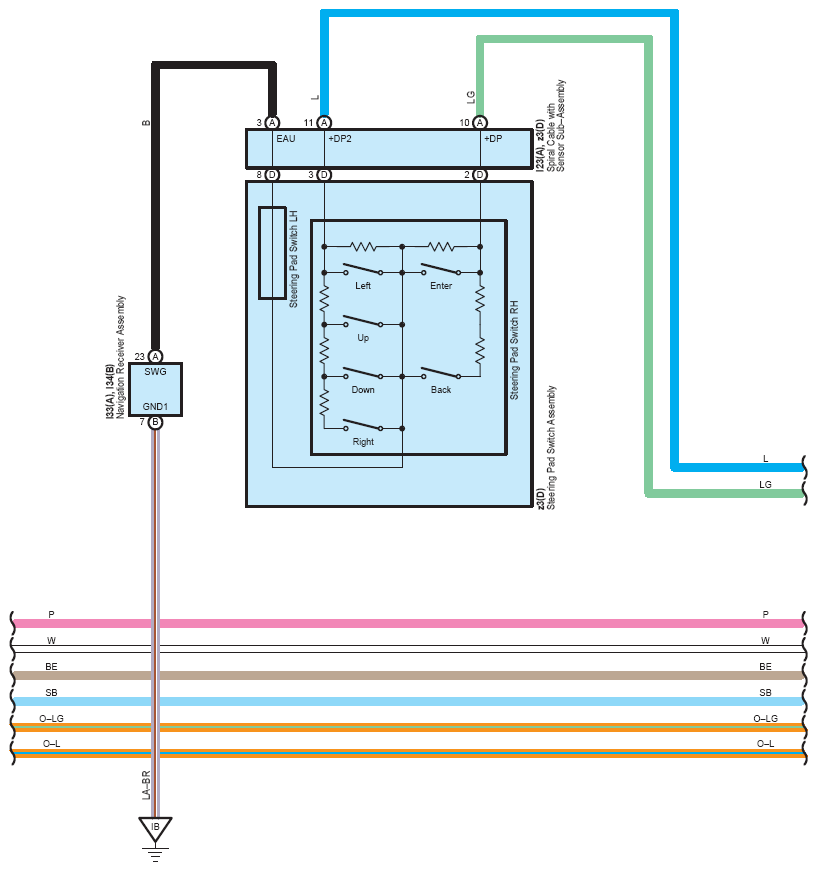

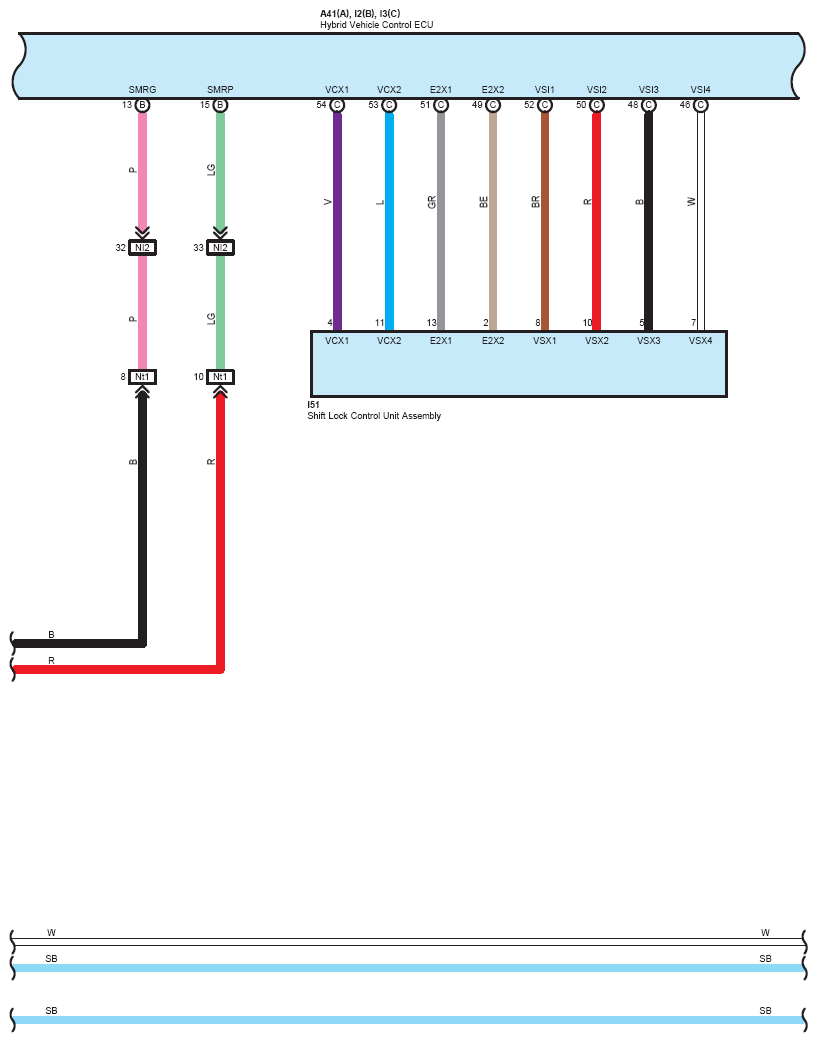

Fig 4: Air Conditioning, Remote Air Conditioning System (4 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

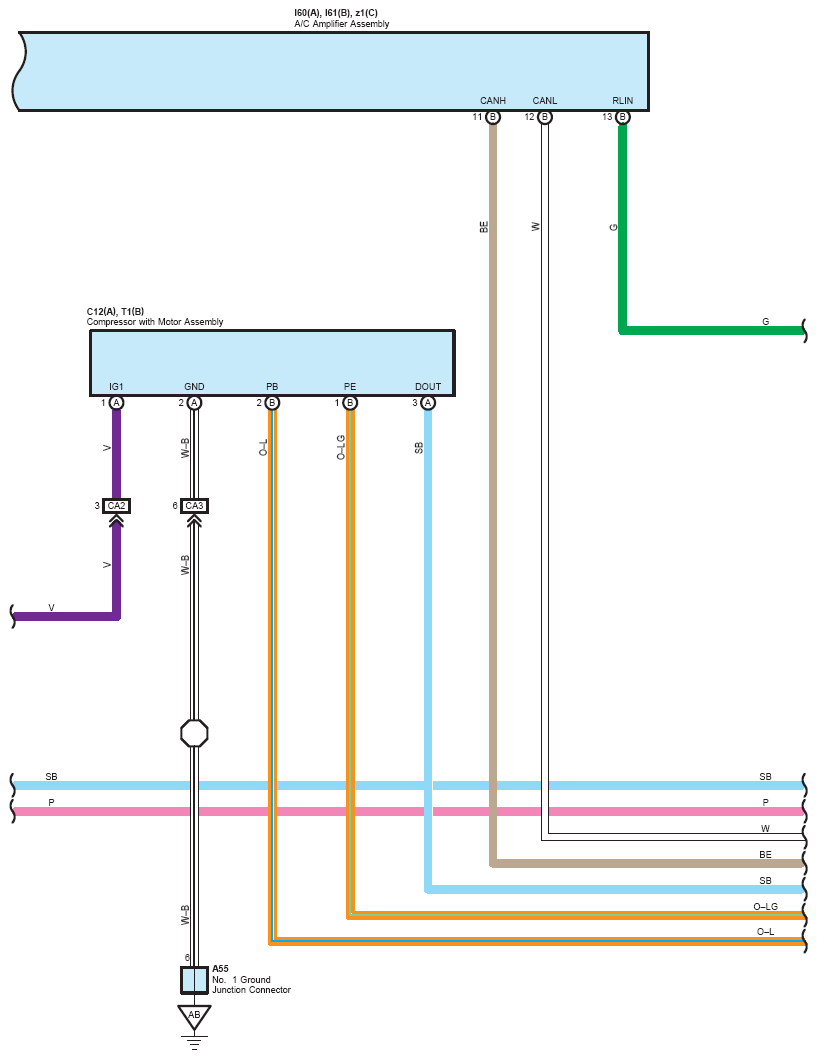

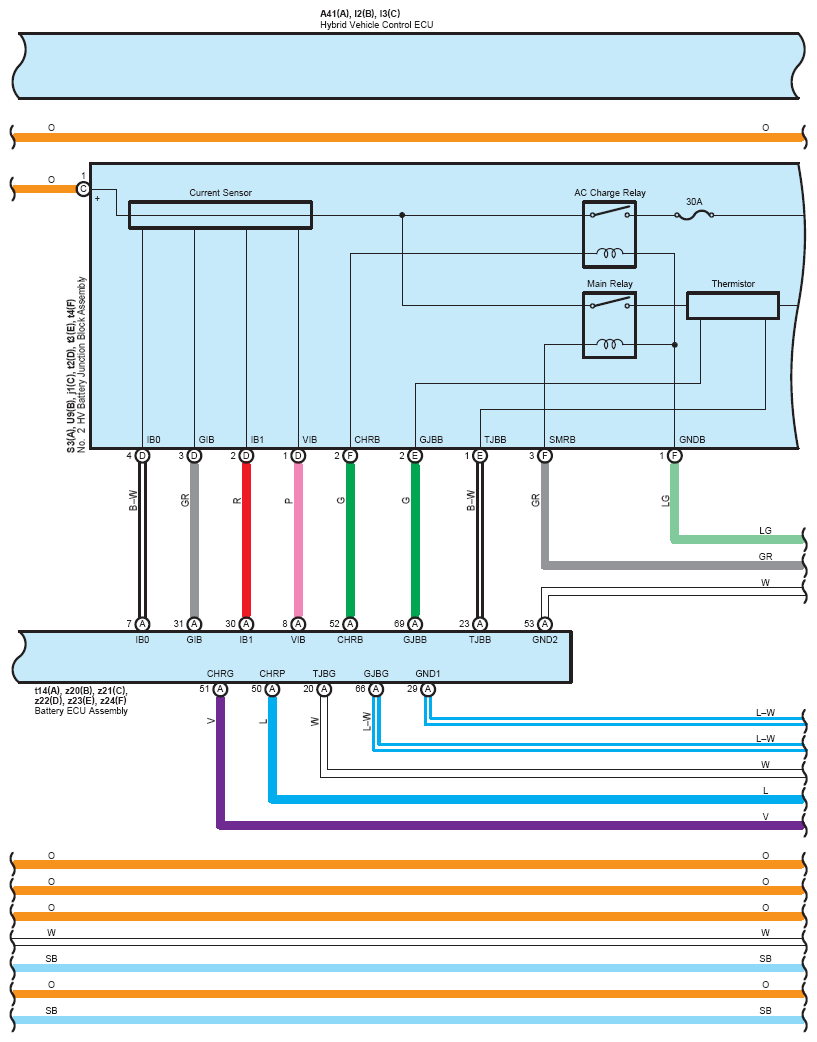

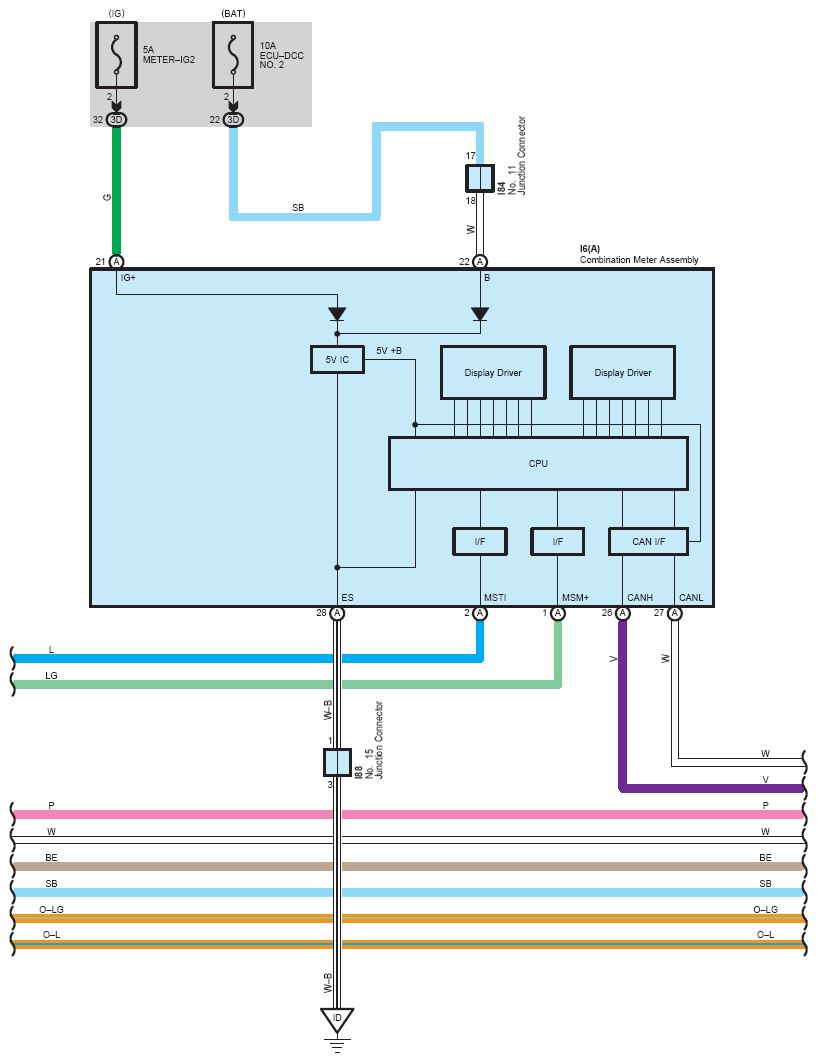

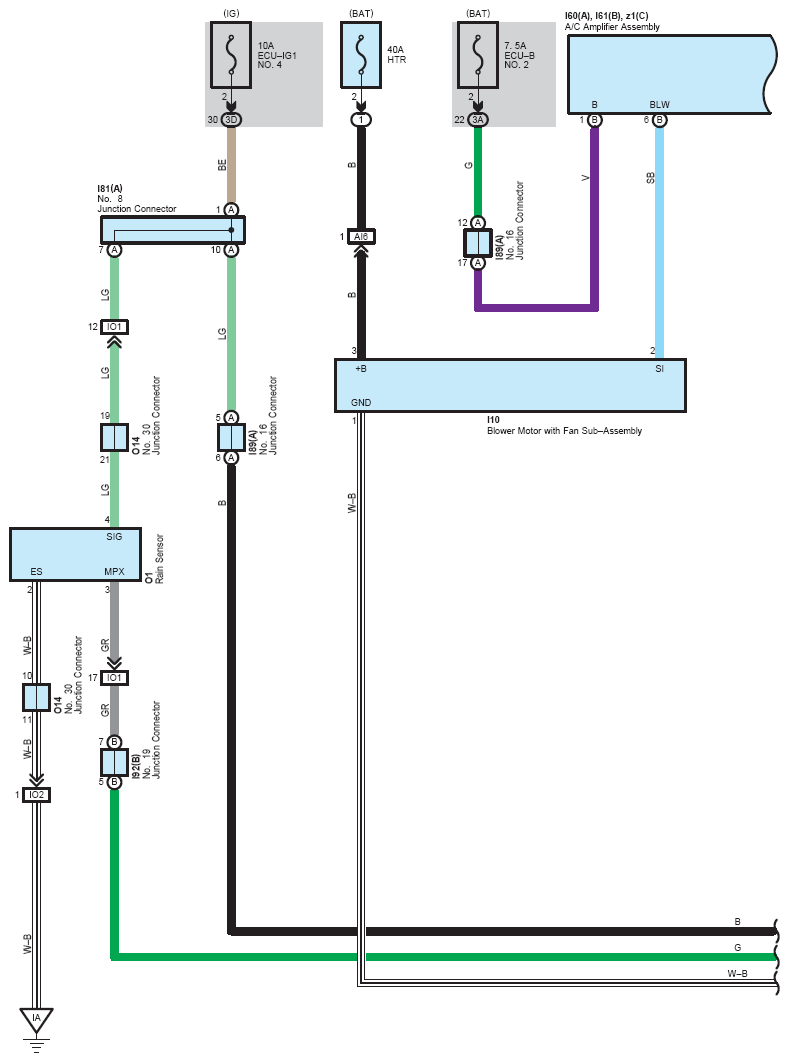

Fig 5: Air Conditioning, Remote Air Conditioning System (5 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

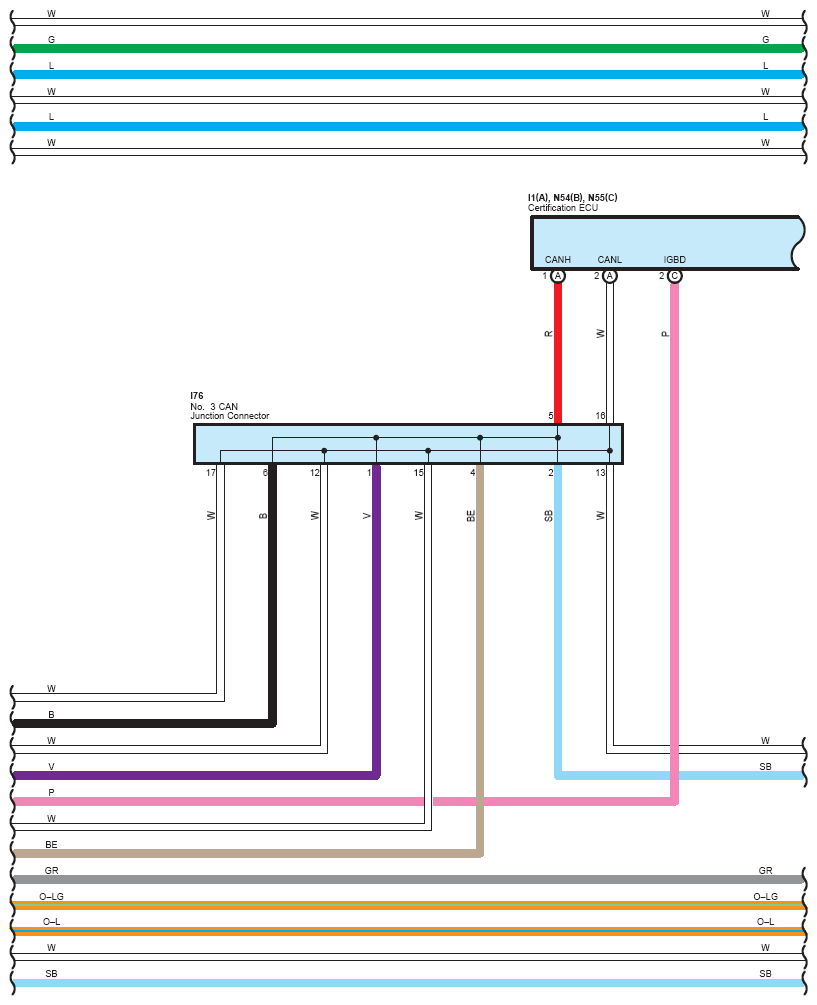

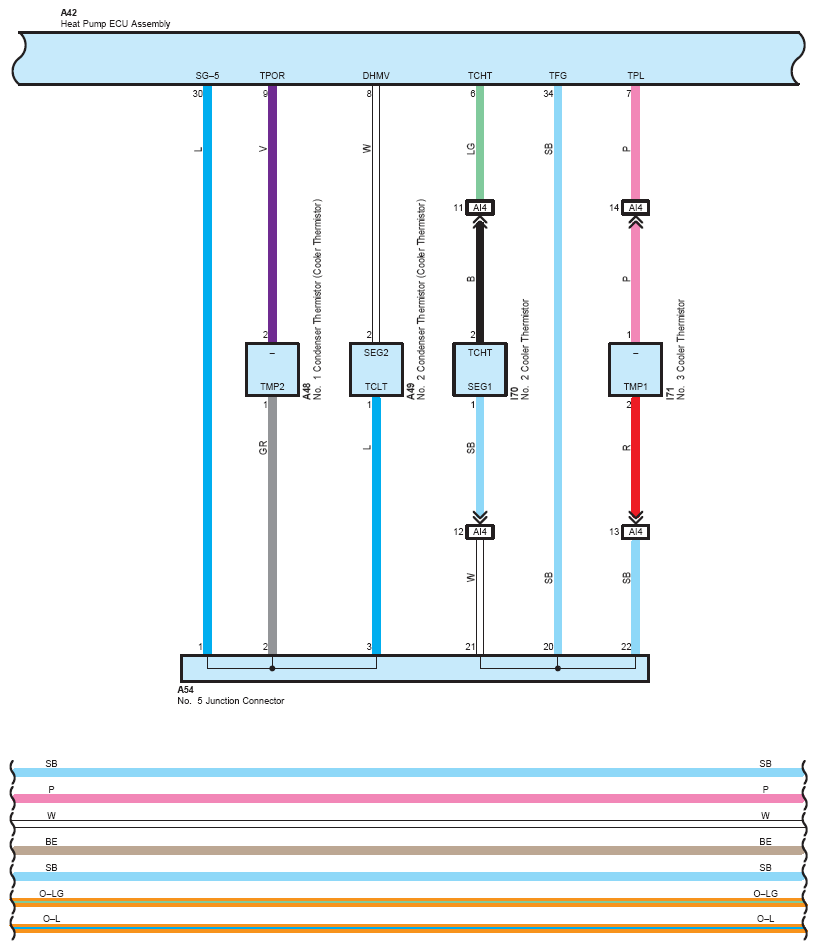

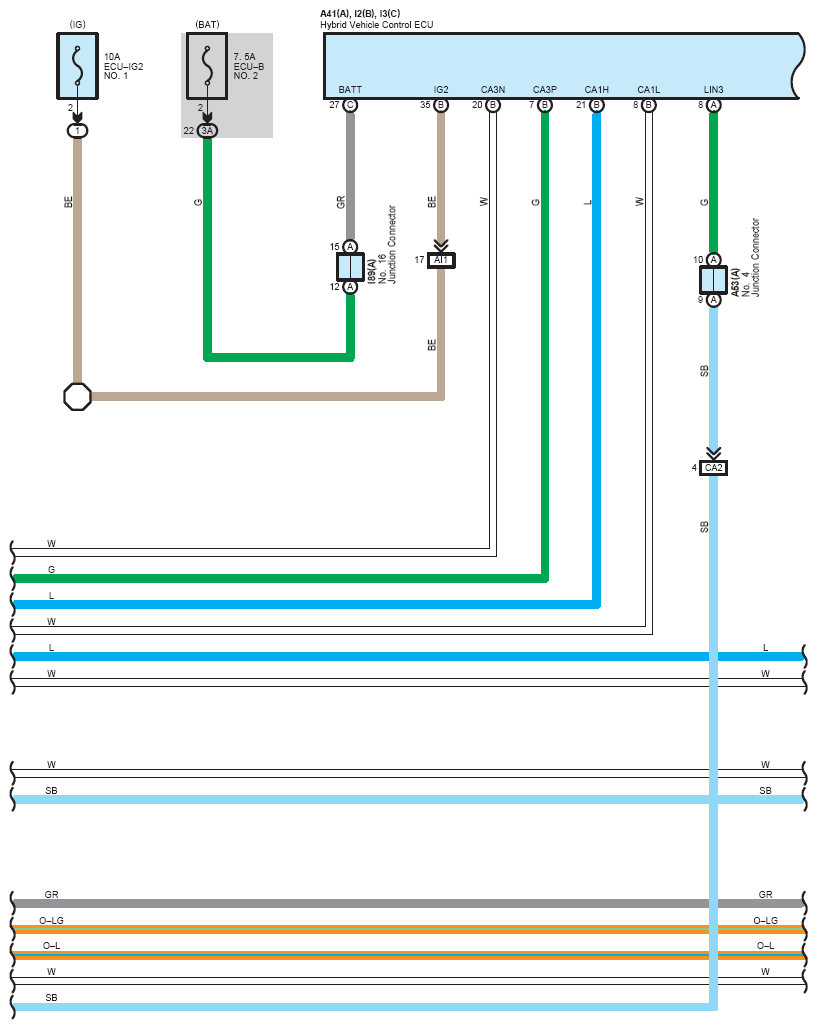

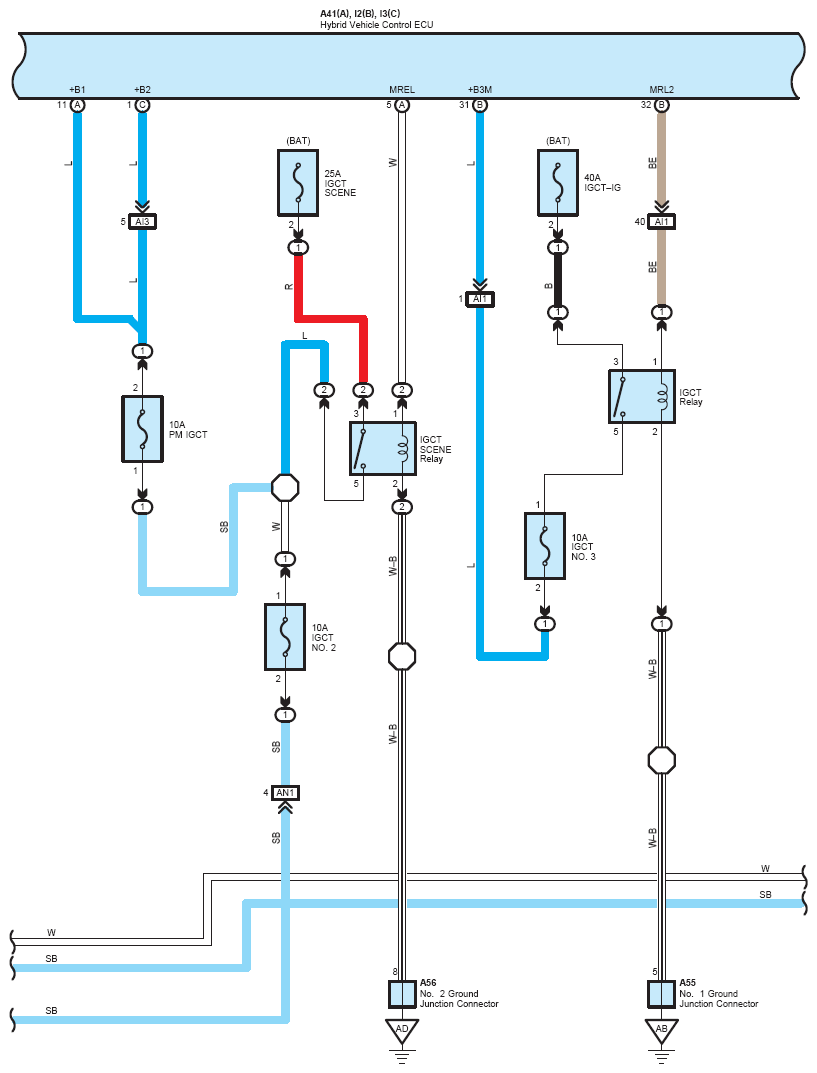

Fig 6: Air Conditioning, Remote Air Conditioning System (6 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

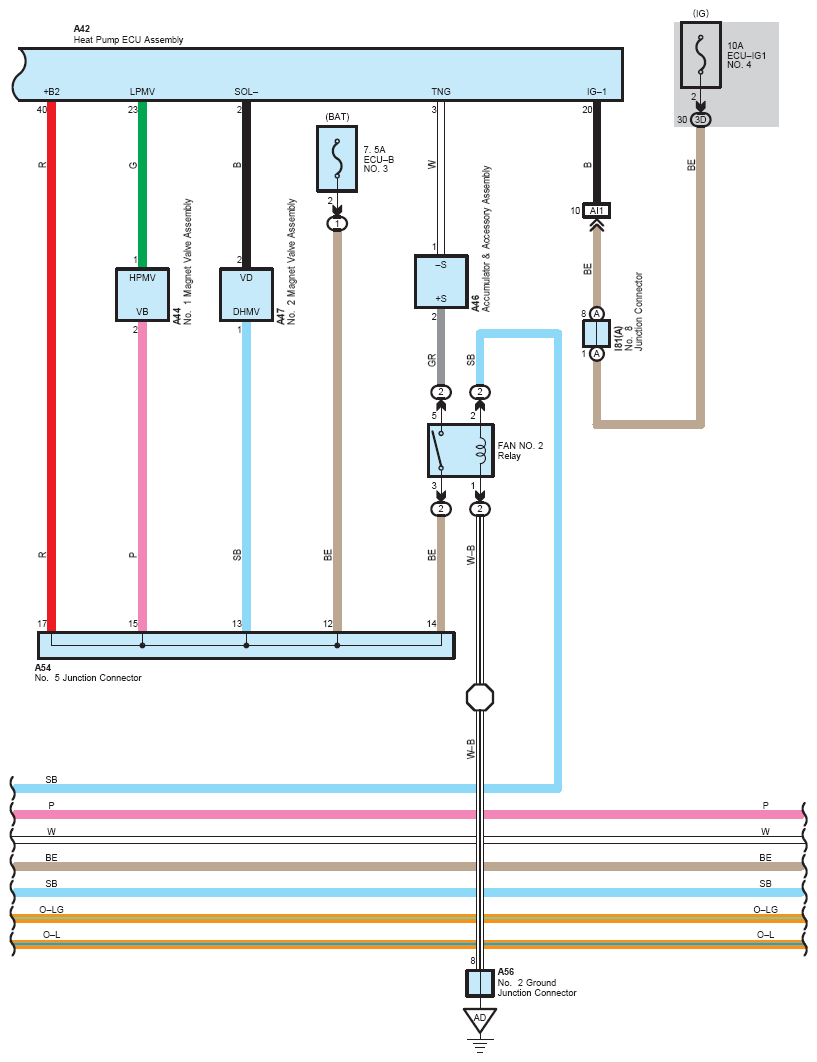

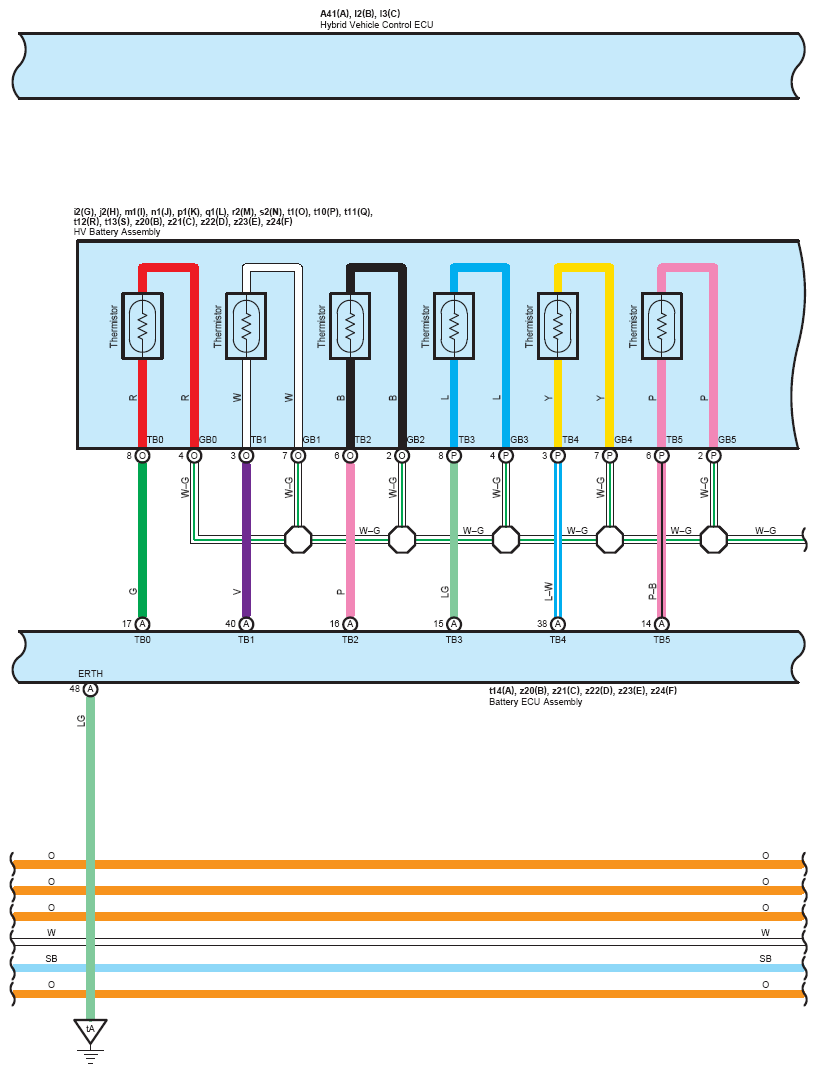

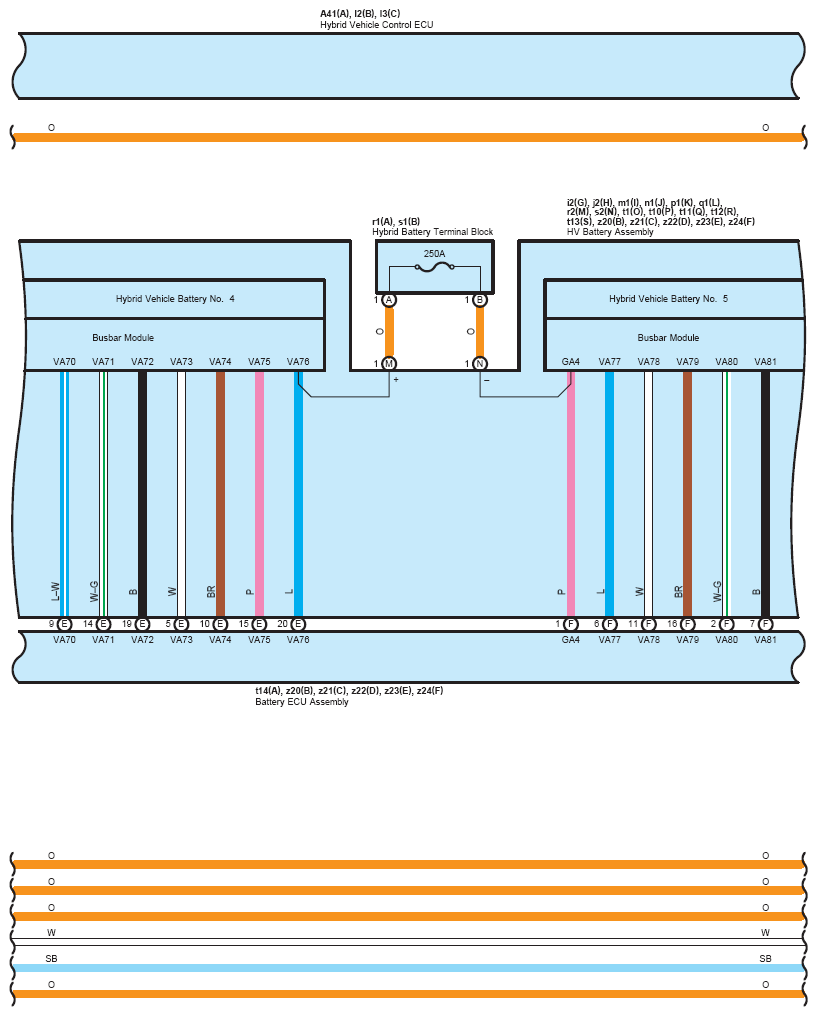

Fig 7: Air Conditioning, Remote Air Conditioning System (7 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

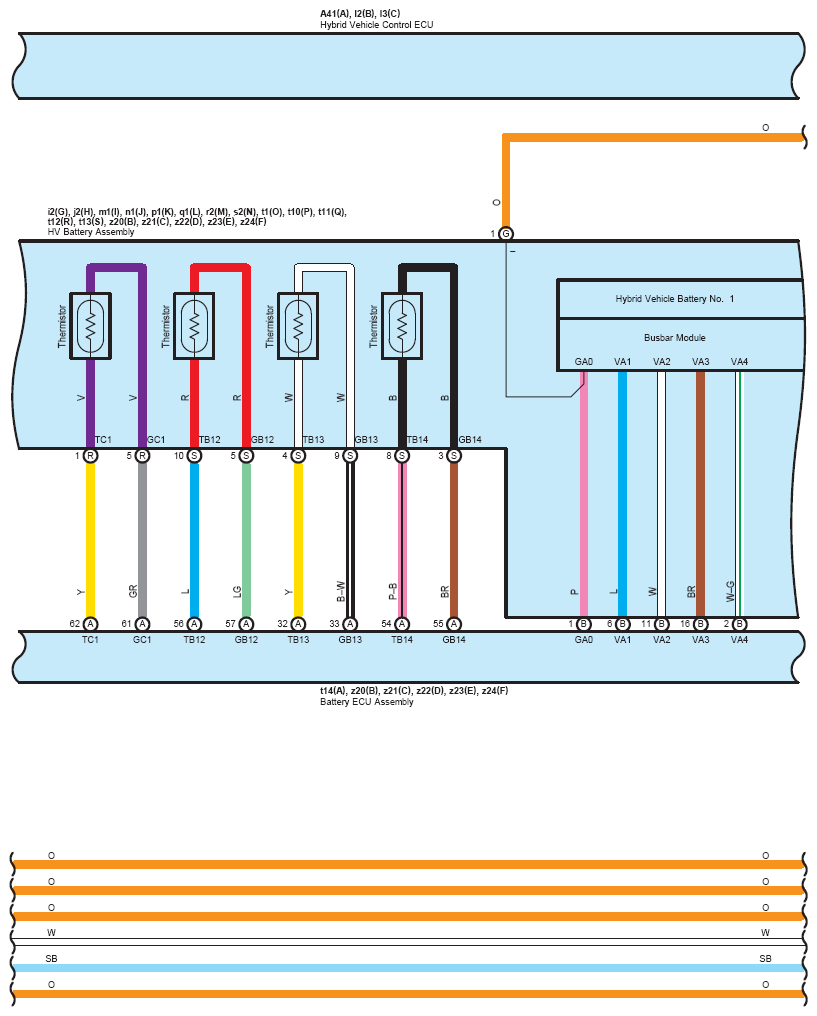

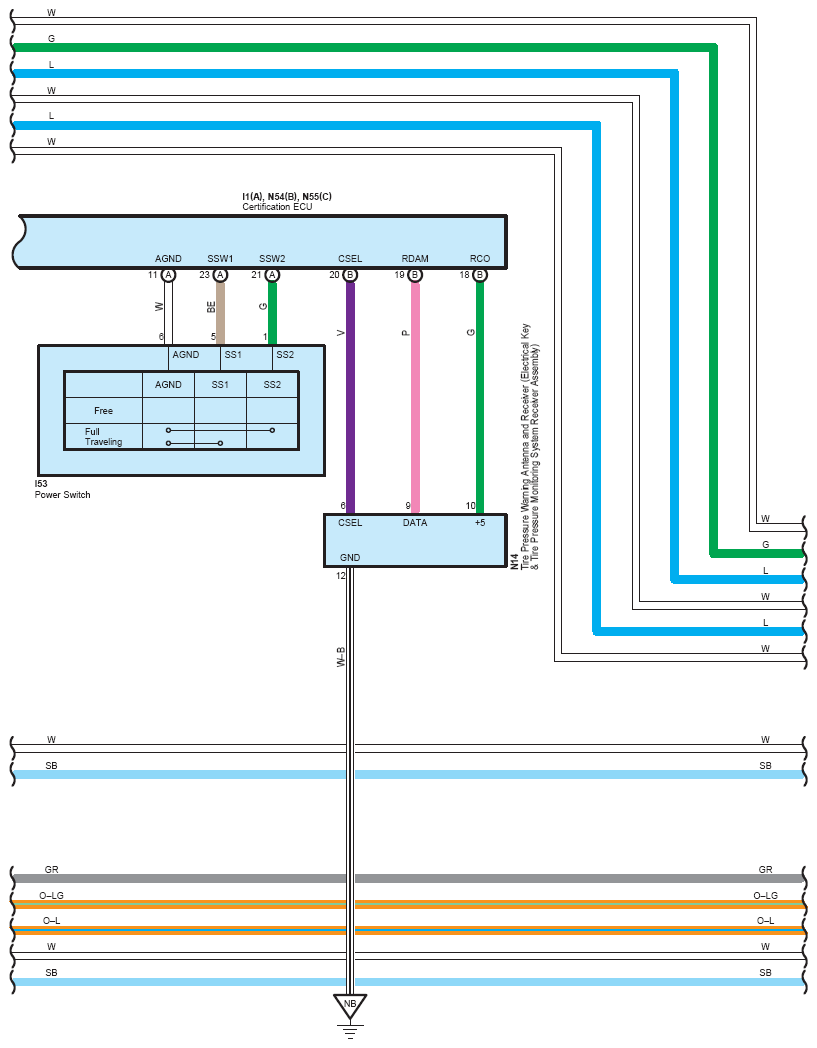

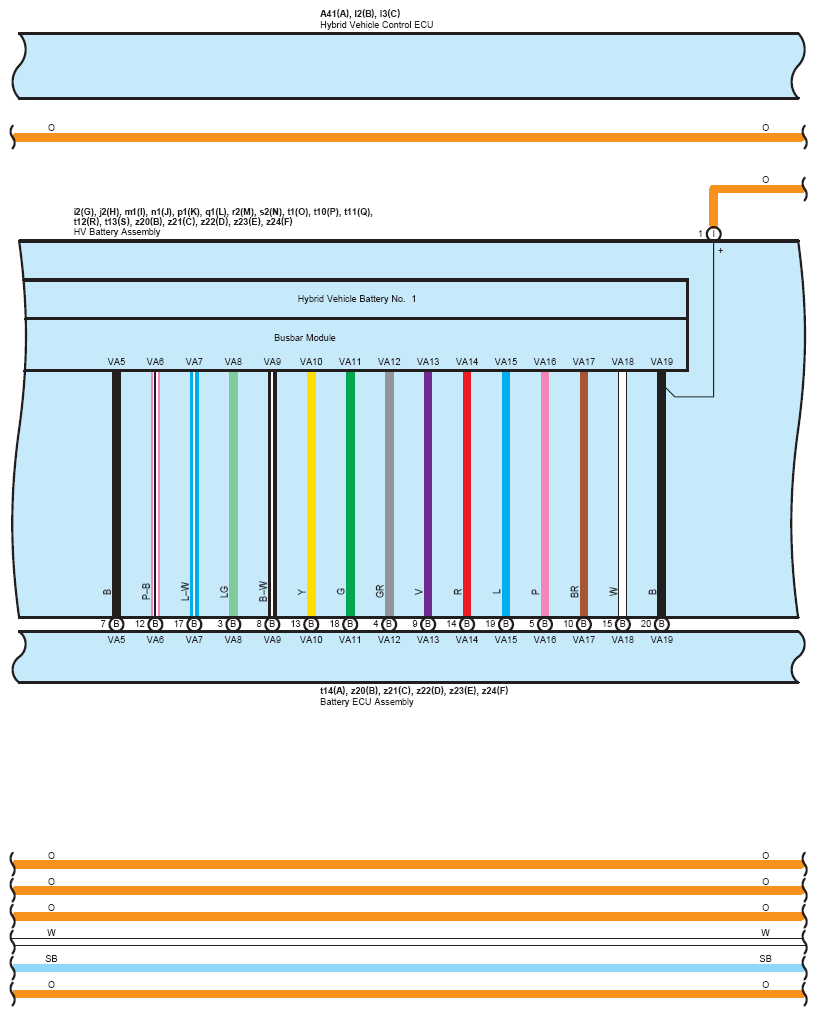

Fig 8: Air Conditioning, Remote Air Conditioning System (8 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Air Conditioning, Remote Air Conditioning System (9 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Air Conditioning, Remote Air Conditioning System (10 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Air Conditioning, Remote Air Conditioning System (11 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Air Conditioning, Remote Air Conditioning System (12 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Air Conditioning, Remote Air Conditioning System (13 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Air Conditioning, Remote Air Conditioning System (14 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Air Conditioning, Remote Air Conditioning System (15 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Air Conditioning, Remote Air Conditioning System (16 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Air Conditioning, Remote Air Conditioning System (17 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Air Conditioning, Remote Air Conditioning System (18 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Air Conditioning, Remote Air Conditioning System (19 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Air Conditioning, Remote Air Conditioning System (20 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Air Conditioning, Remote Air Conditioning System (21 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Air Conditioning, Remote Air Conditioning System (22 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 23: Air Conditioning, Remote Air Conditioning System (23 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 24: Air Conditioning, Remote Air Conditioning System (24 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 25: Air Conditioning, Remote Air Conditioning System (25 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 26: Air Conditioning, Remote Air Conditioning System (26 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 27: Air Conditioning, Remote Air Conditioning System (27 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 28: Air Conditioning, Remote Air Conditioning System (28 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 29: Air Conditioning, Remote Air Conditioning System (29 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 30: Air Conditioning, Remote Air Conditioning System (30 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 31: Air Conditioning, Remote Air Conditioning System (31 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 32: Air Conditioning, Remote Air Conditioning System (32 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 33: Air Conditioning, Remote Air Conditioning System (33 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 34: Air Conditioning, Remote Air Conditioning System (34 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 35: Air Conditioning, Remote Air Conditioning System (35 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 36: Air Conditioning, Remote Air Conditioning System (36 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 37: Air Conditioning, Remote Air Conditioning System (37 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 38: Air Conditioning, Remote Air Conditioning System (38 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 39: Air Conditioning, Remote Air Conditioning System (39 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 40: Air Conditioning, Remote Air Conditioning System (40 Of 40)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
