System Diagrams

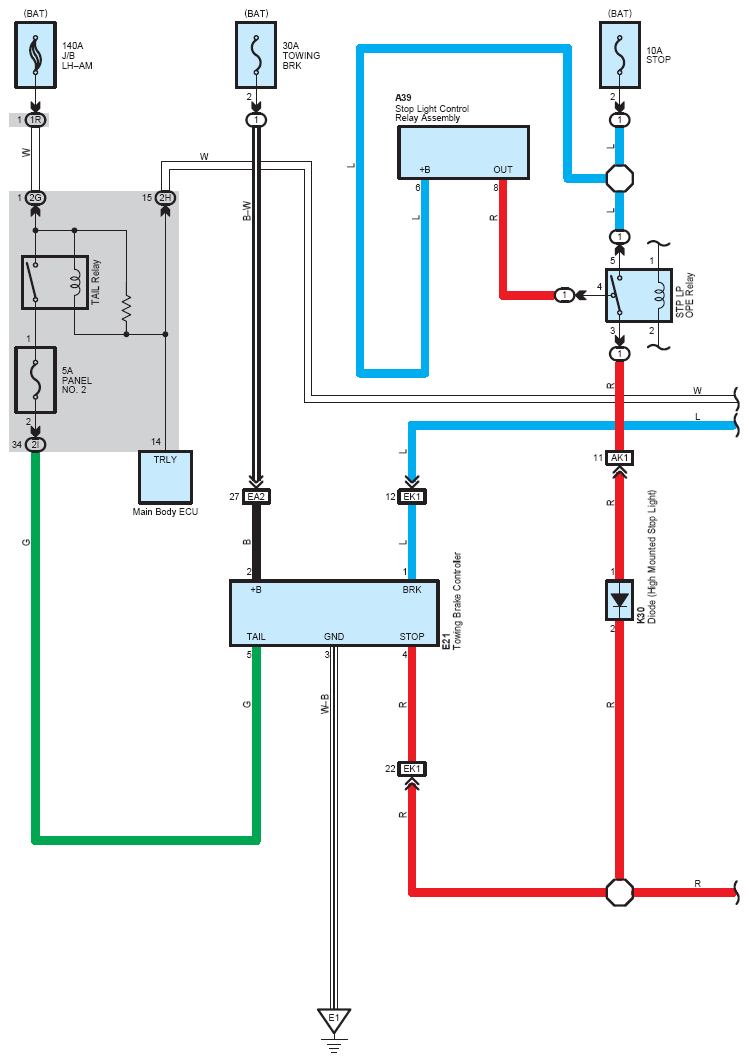

Fig 1: Trailer Towing (1 Of 4)
G12206818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

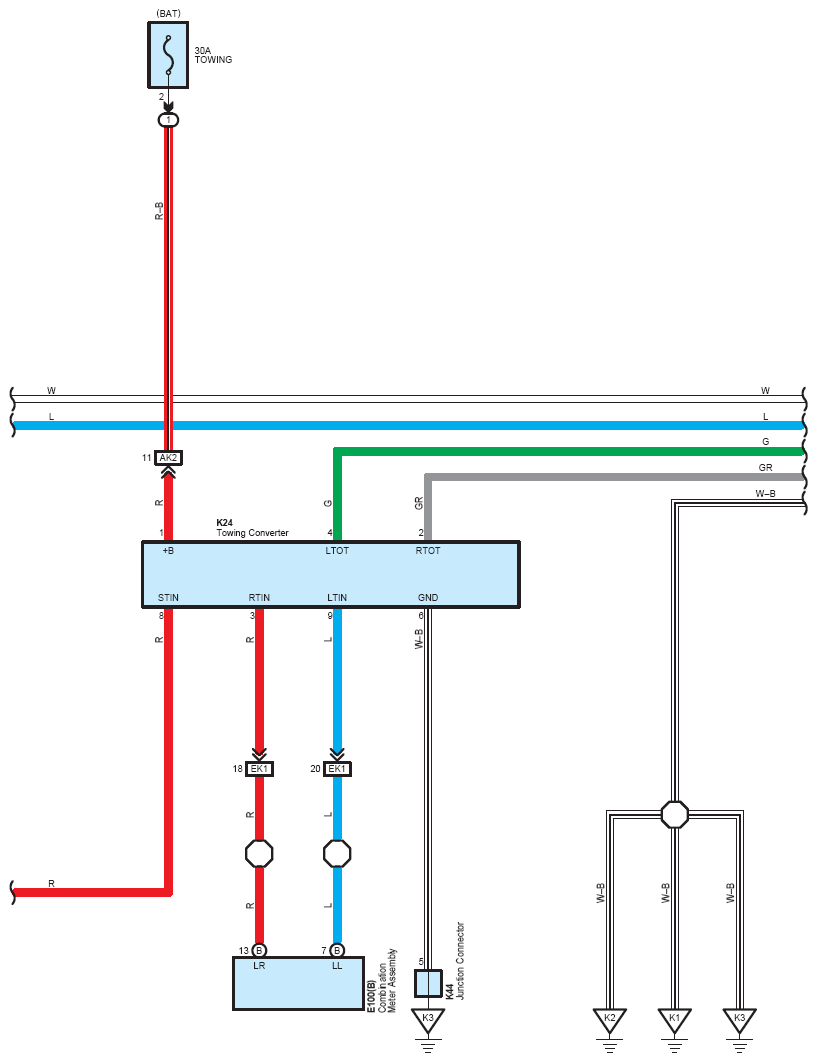

Fig 2: Trailer Towing (2 Of 4)
G12206819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

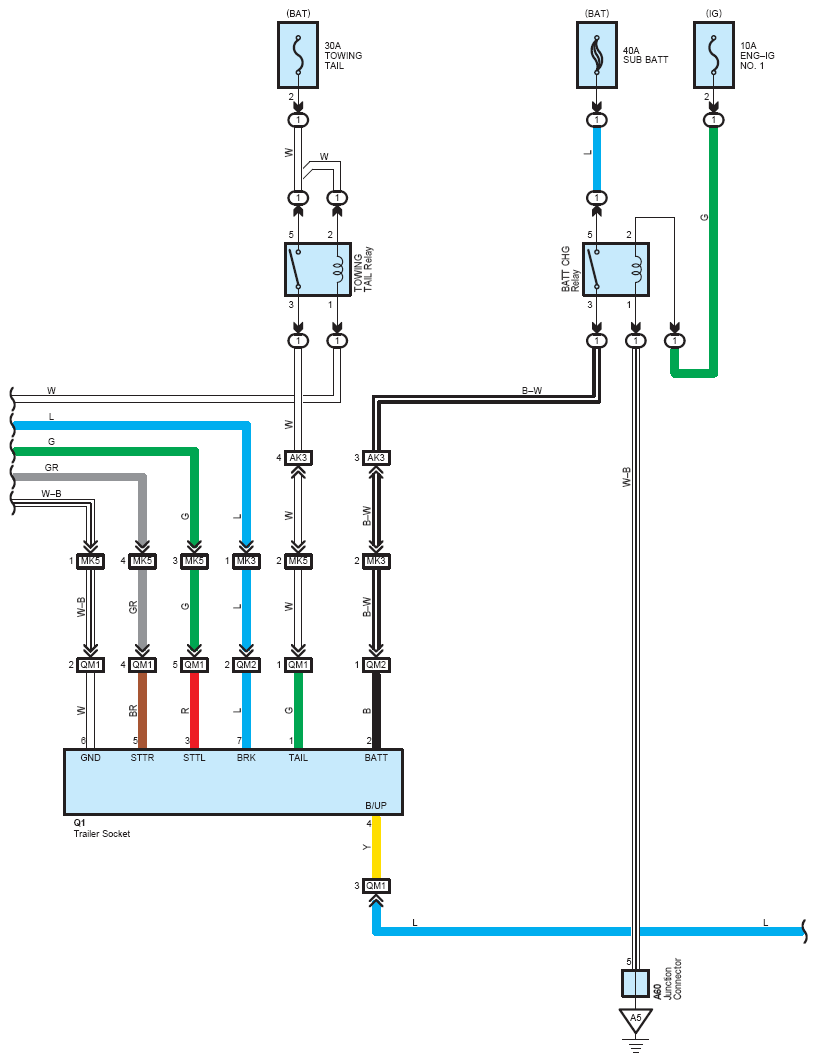

Fig 3: Trailer Towing (3 Of 4)
G12206820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Trailer Towing (4 Of 4)
G12206821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
