Back-Up Light: Connectors

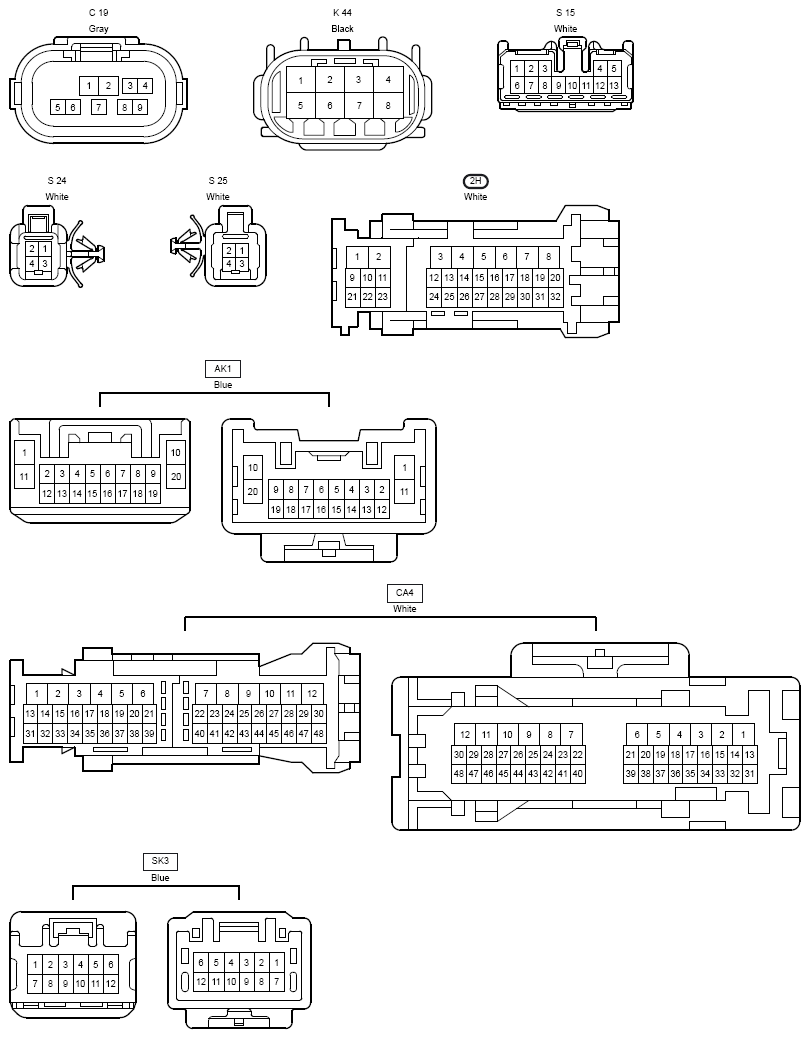

Fig 1: Connectors

G12206365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
