OEM System Circuits: Ignition: Connectors

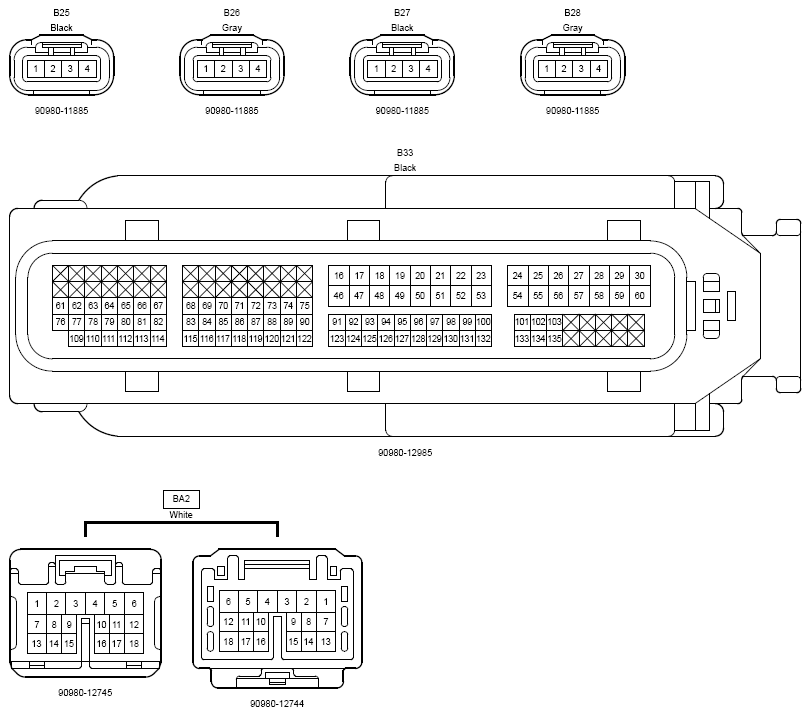

Fig 1: Connectors

G12199599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
