System Diagrams

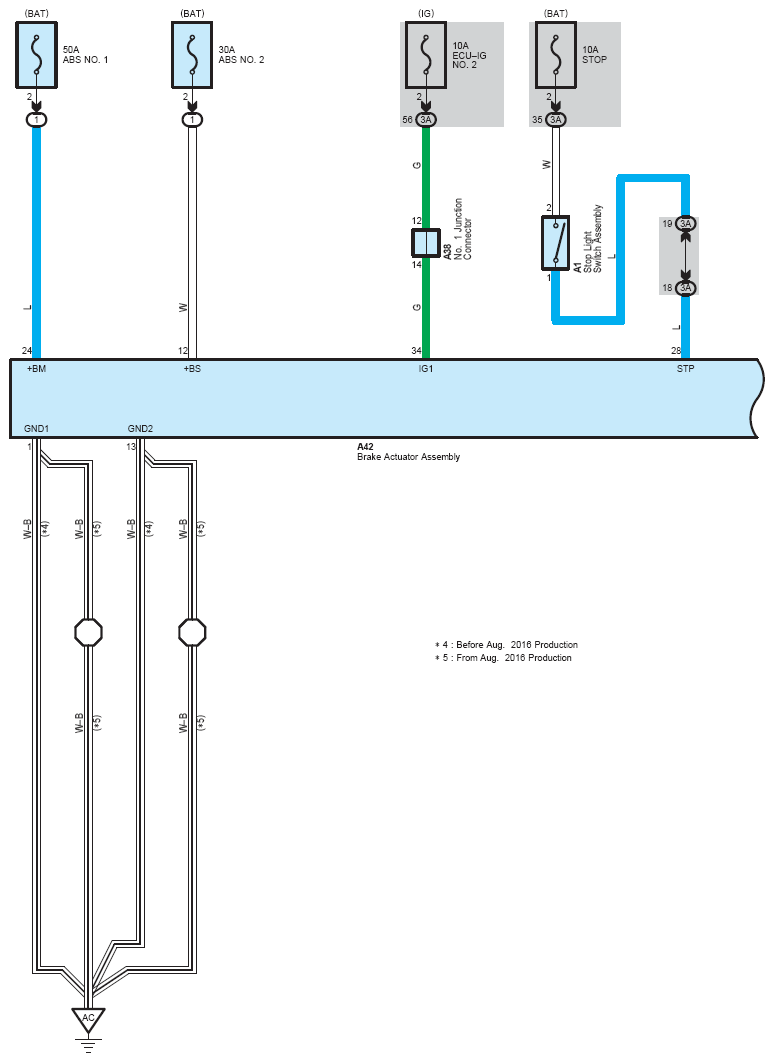

Fig 1: ABS (W/O VSC) (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

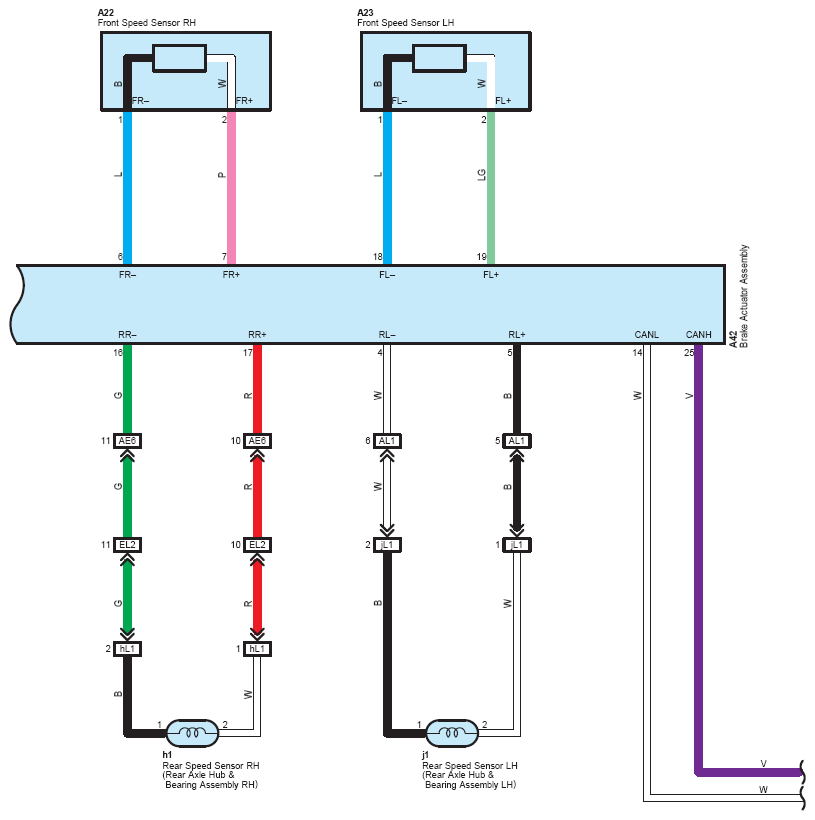

Fig 2: ABS (W/O VSC) (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

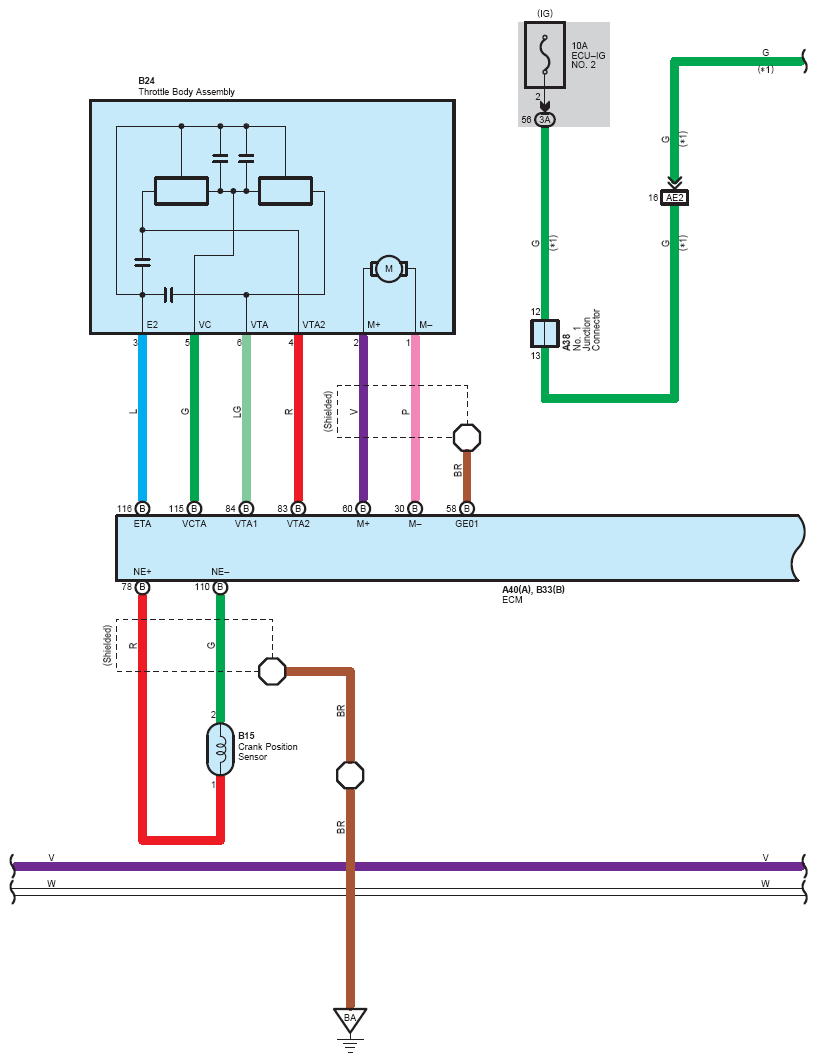

Fig 3: ABS (W/O VSC) (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

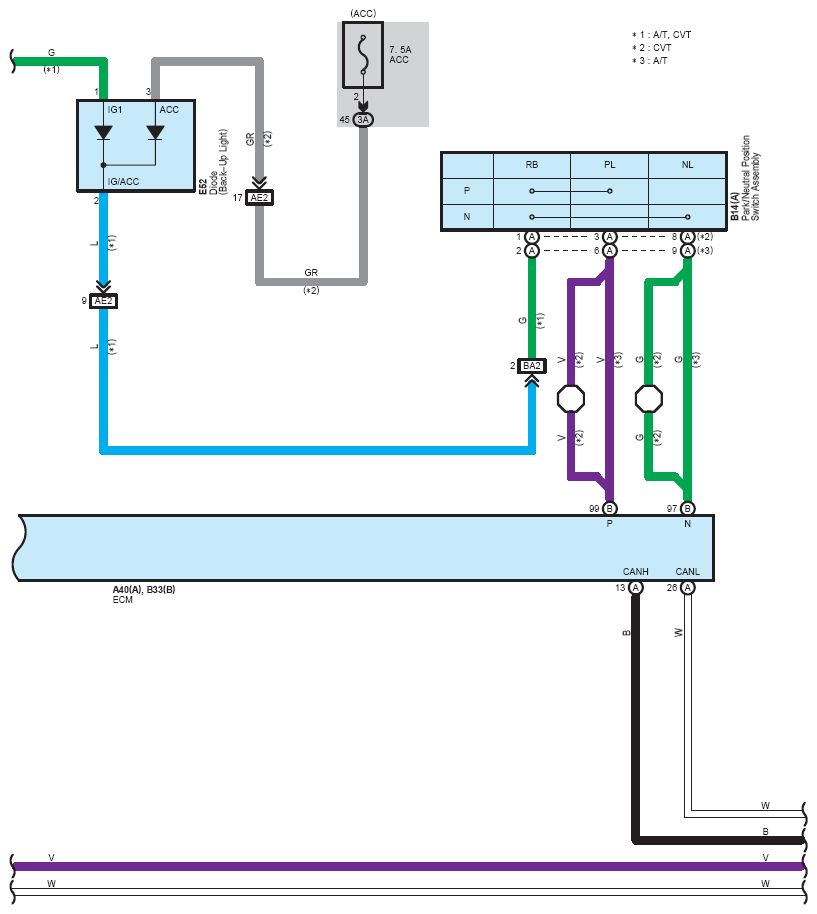

Fig 4: ABS (W/O VSC) (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

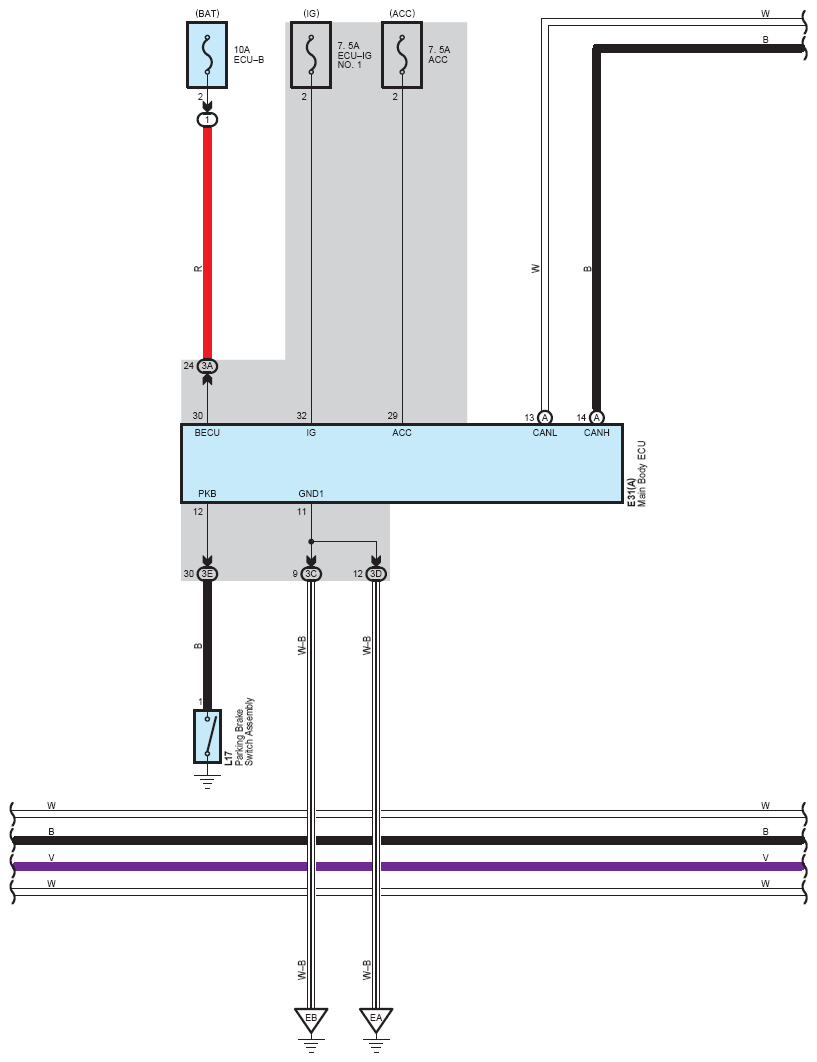

Fig 5: ABS (W/O VSC) (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: ABS (W/O VSC) (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

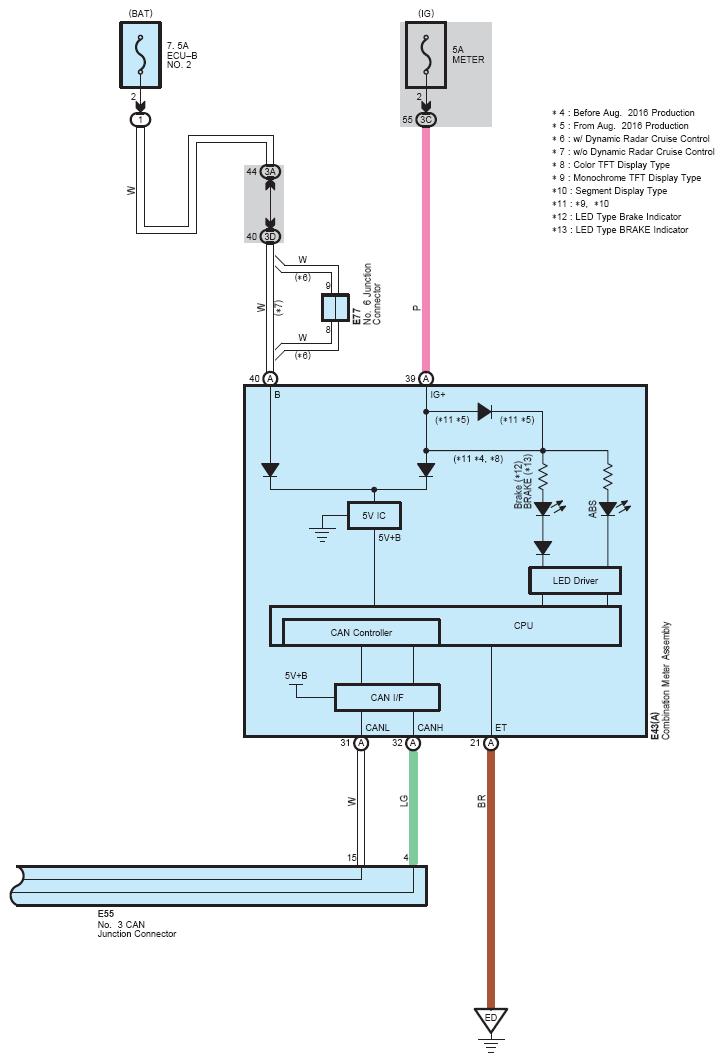

Fig 7: ABS (W/O VSC) (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
