Removal [08/2013 - ]: Procedure

  1. REMOVE REAR ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 Refer to PROCEDURE - Step 4 Refer to PROCEDURE - Step 4

  3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

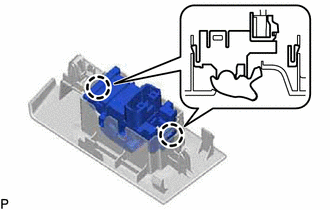

    1. Disengage the 2 claws and remove the rear power window regulator switch assembly.
      GTY448846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
