System Diagrams

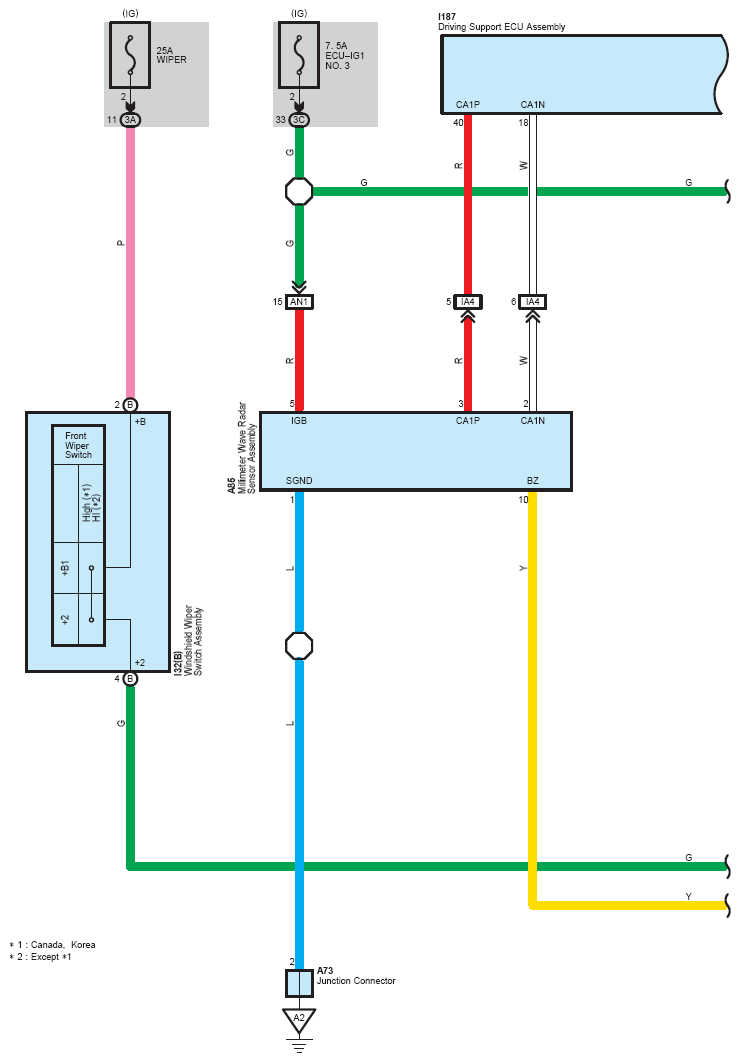

Fig 1: Pre-Collision System - (1 Of 4)

G12200369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

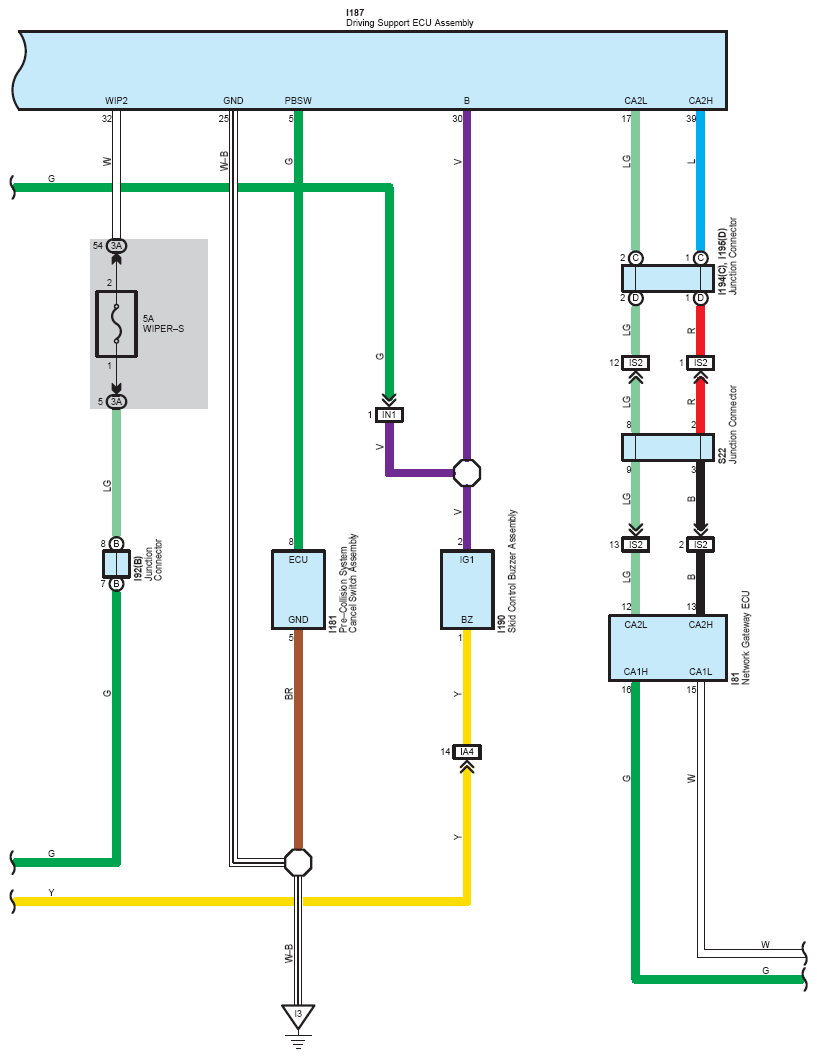

Fig 2: Pre-Collision System - (2 Of 4)

G12200370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

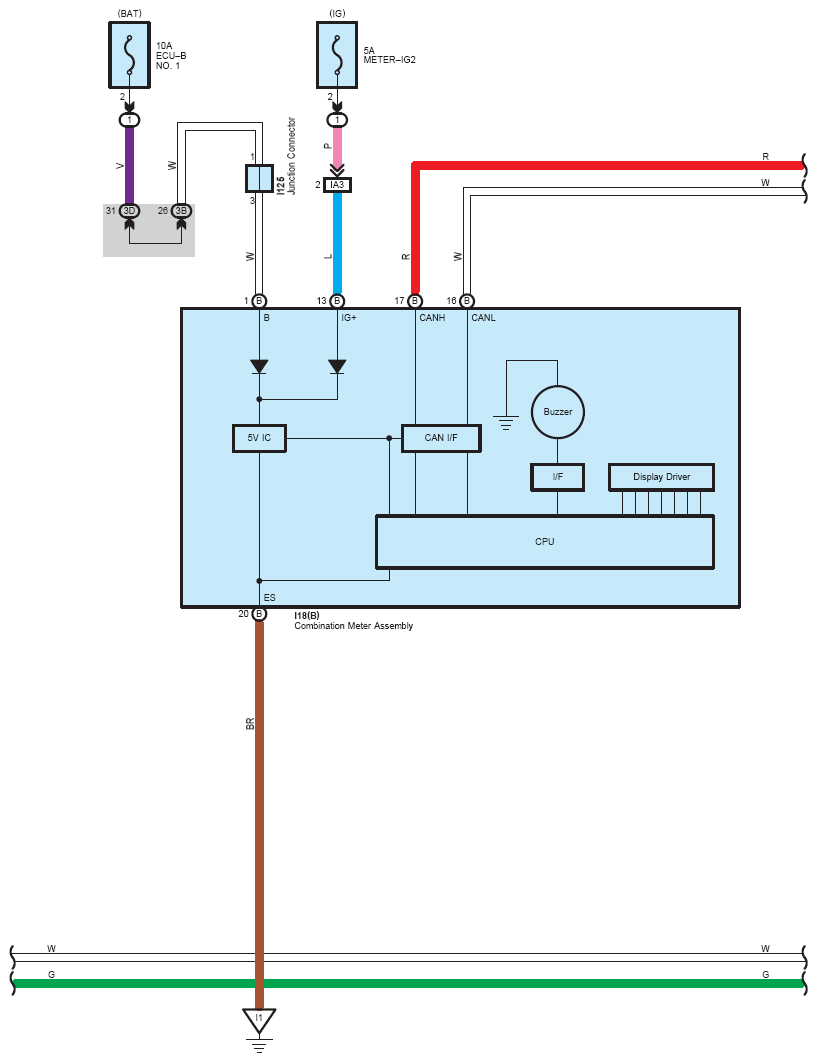

Fig 3: Pre-Collision System - (3 Of 4)

G12200371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

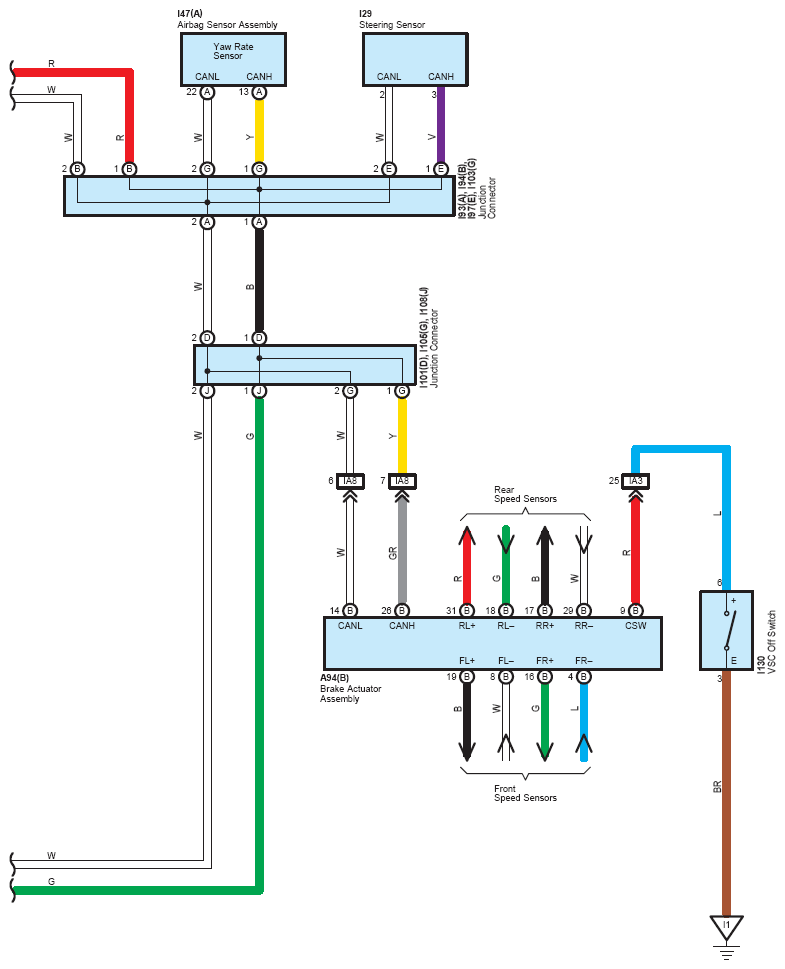

Fig 4: Pre-Collision System - (4 Of 4)

G12200372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
