System Diagrams

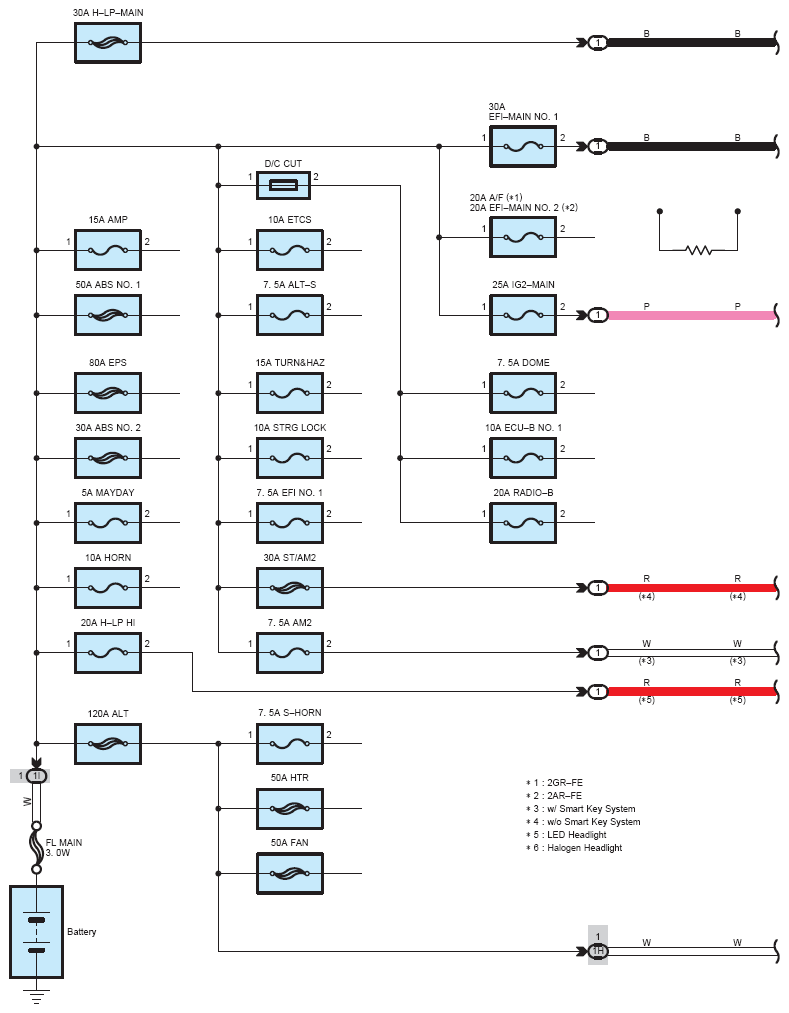

Fig 1: Power Outlet - (1 Of 5)
G12200378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

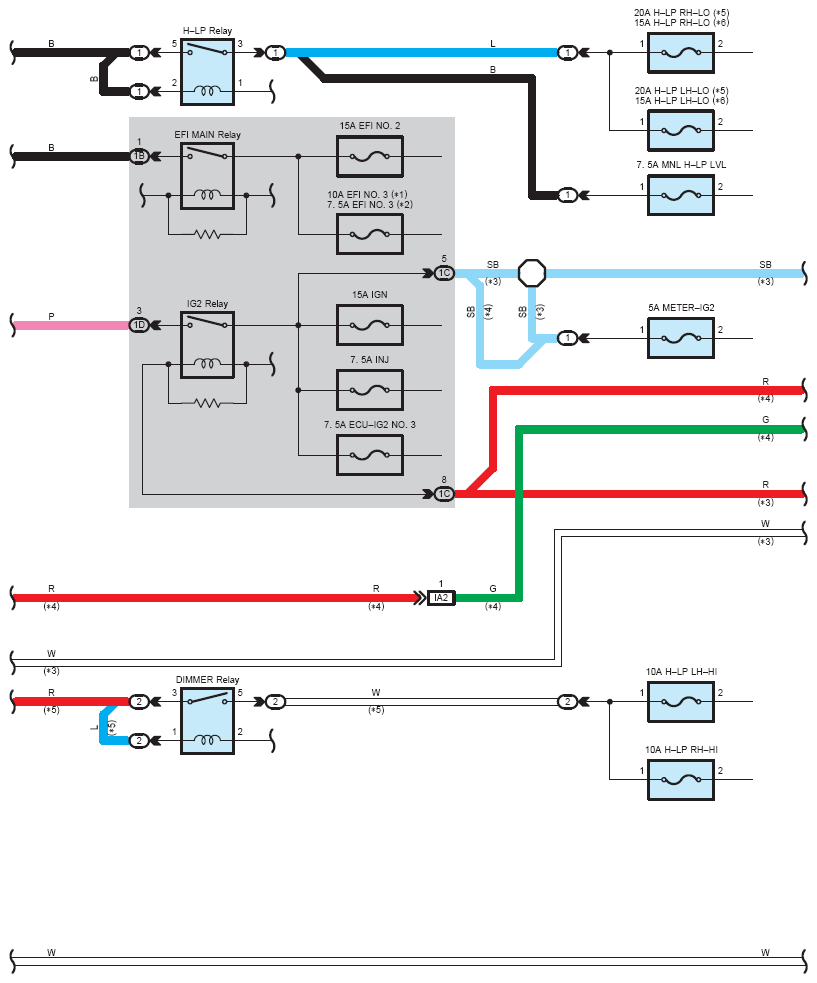

Fig 2: Power Outlet - (2 Of 5)
G12200379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

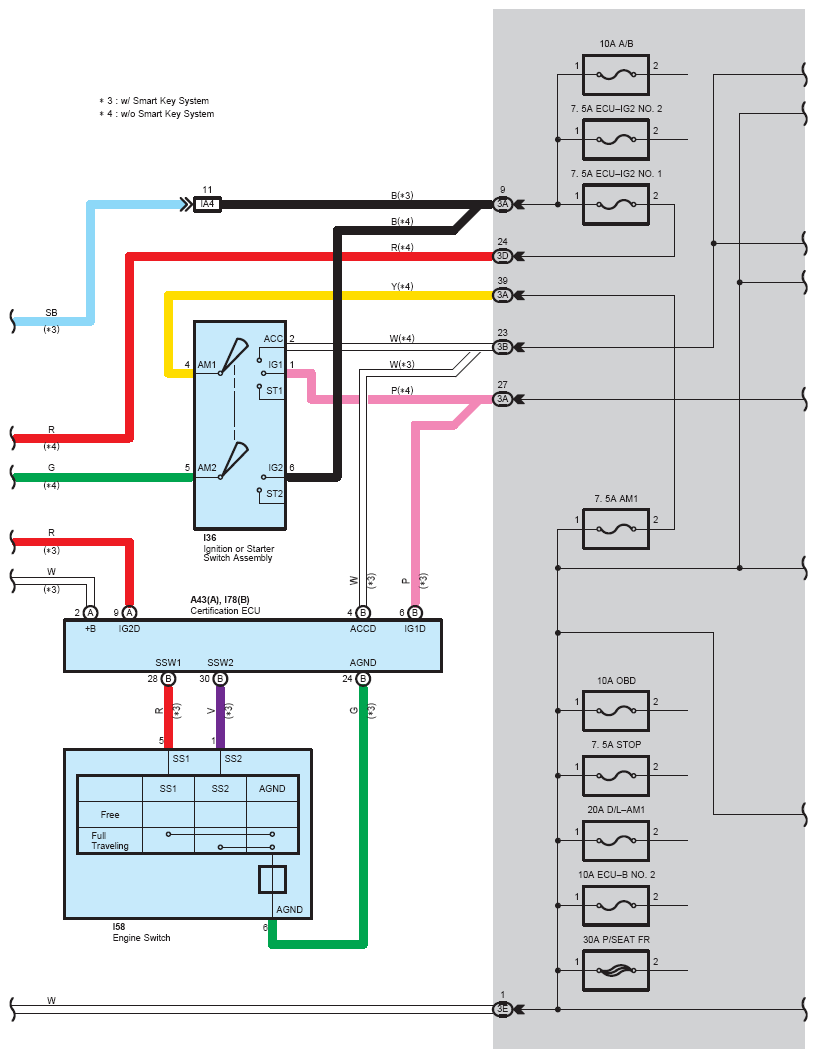

Fig 3: Power Outlet - (3 Of 5)
G12200380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

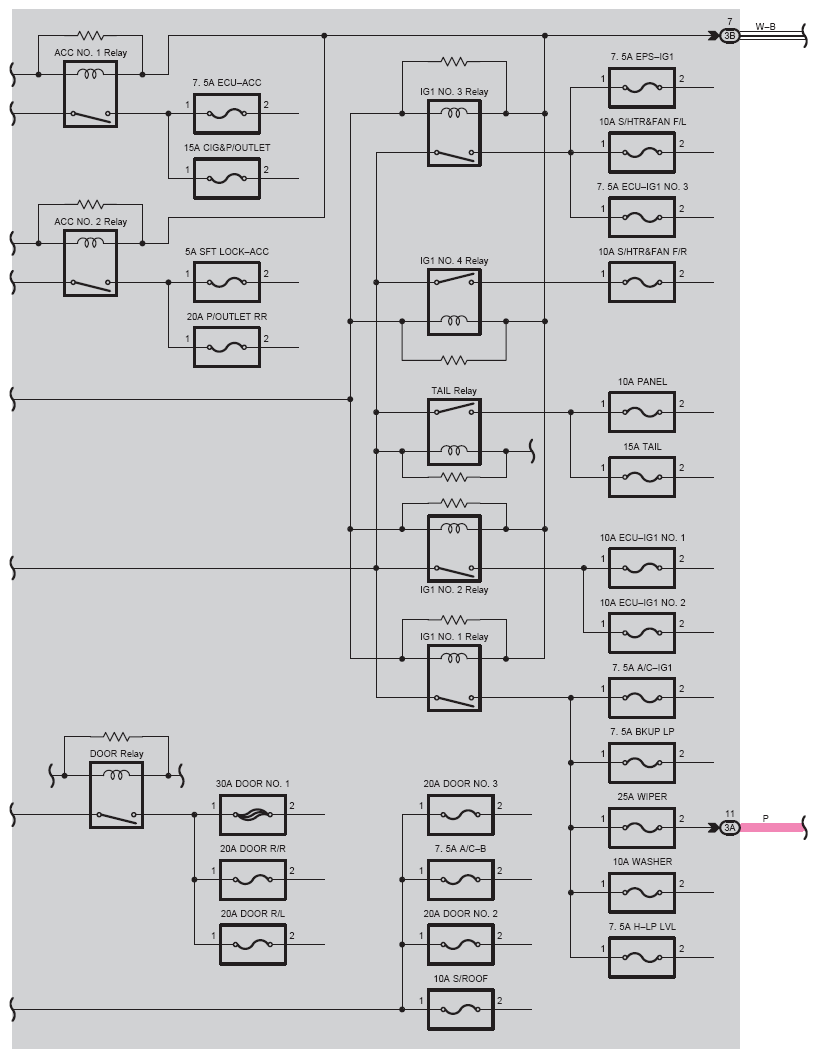

Fig 4: Power Outlet - (4 Of 5)
G12200381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

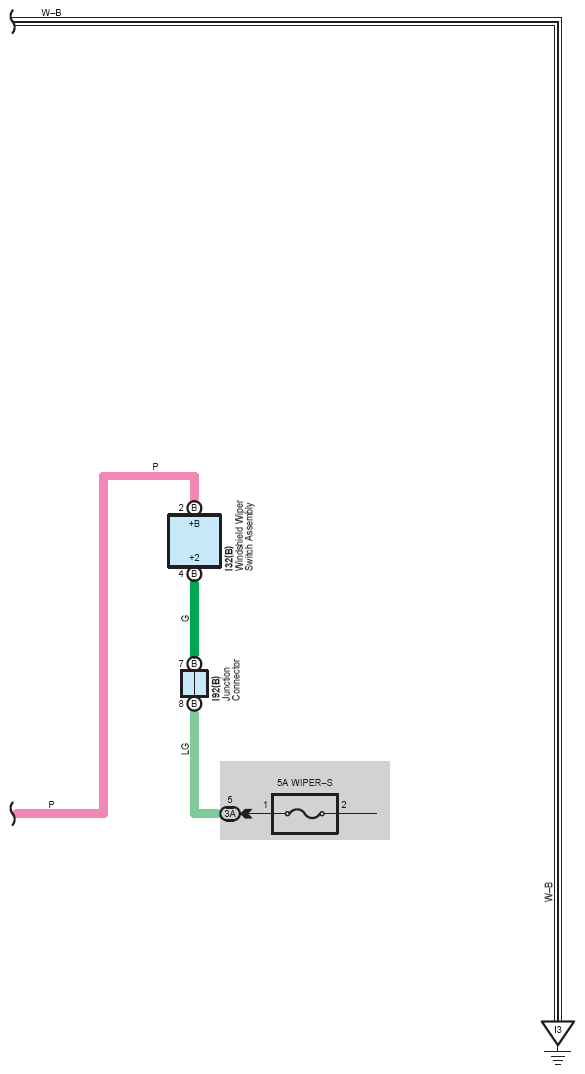

Fig 5: Power Outlet - (5 Of 5)
G12200382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
