Power Source: Connectors

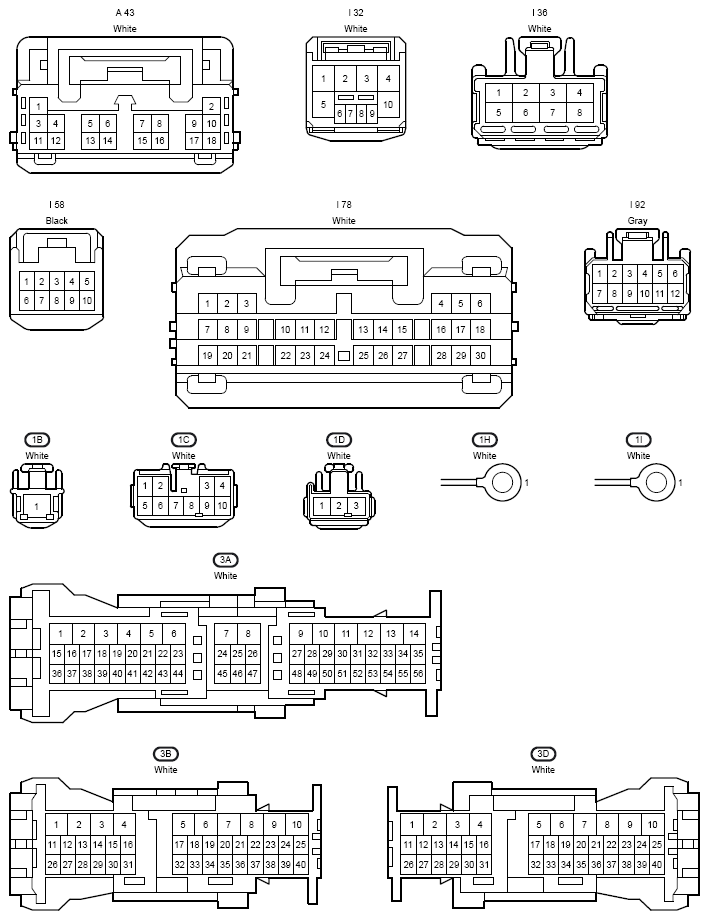

Fig 1: Connectors - (1 Of 2)
G12200383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

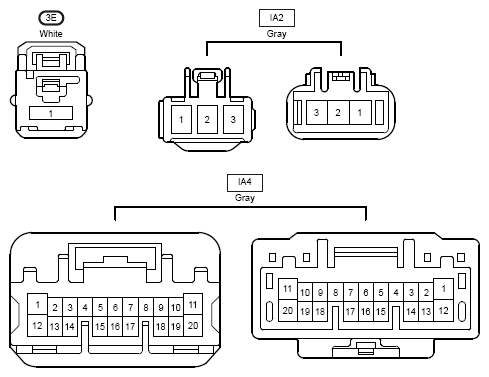

Fig 2: Connectors - (2 Of 2)
G12200384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
