System Diagrams

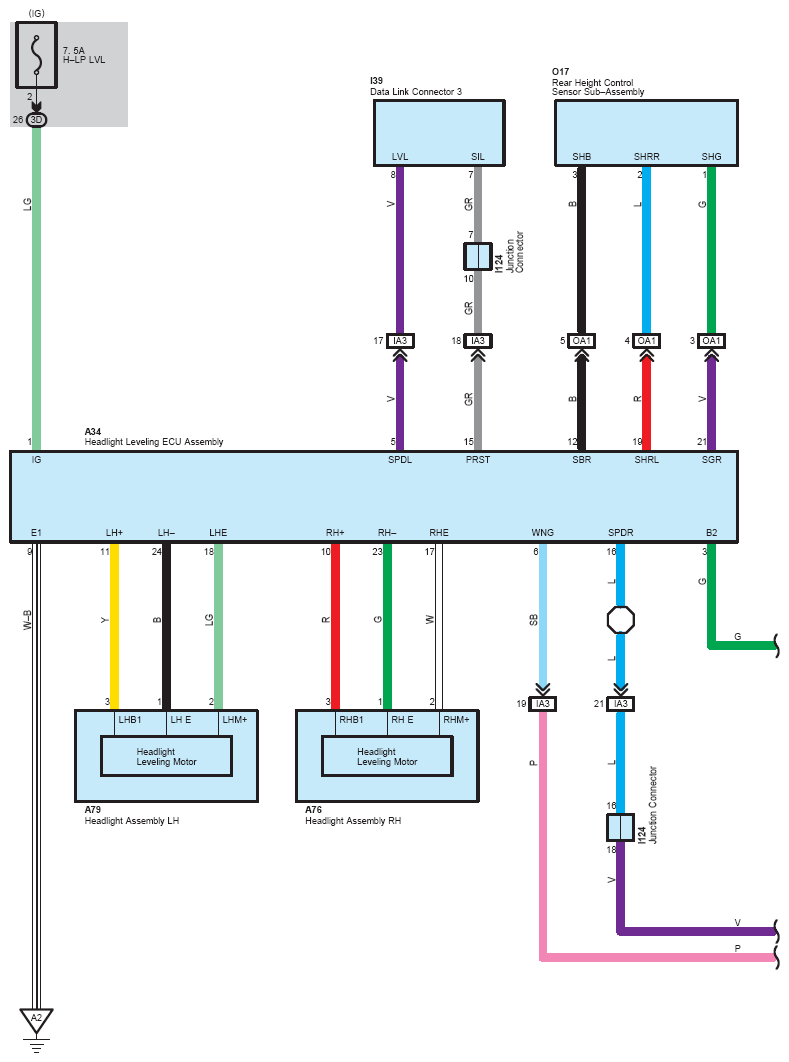

Fig 1: Headlight Beam Level Control - (1 Of 4)
G12200305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

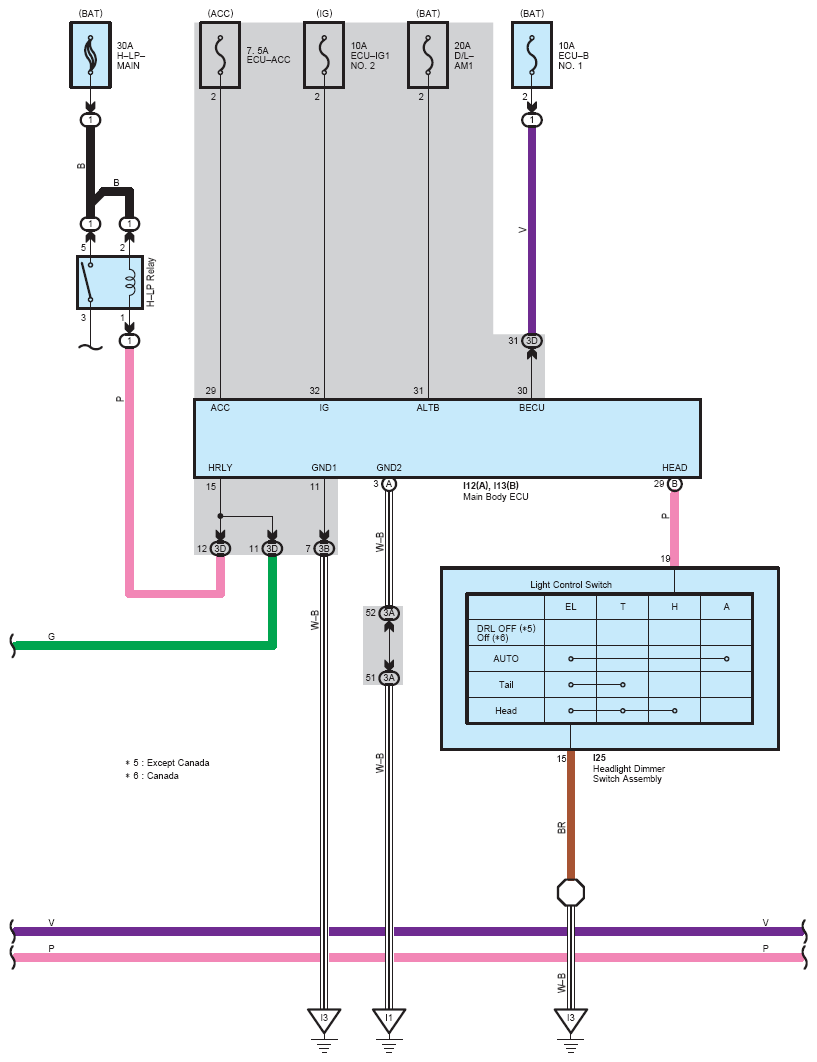

Fig 2: Headlight Beam Level Control - (2 Of 4)
G12200306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

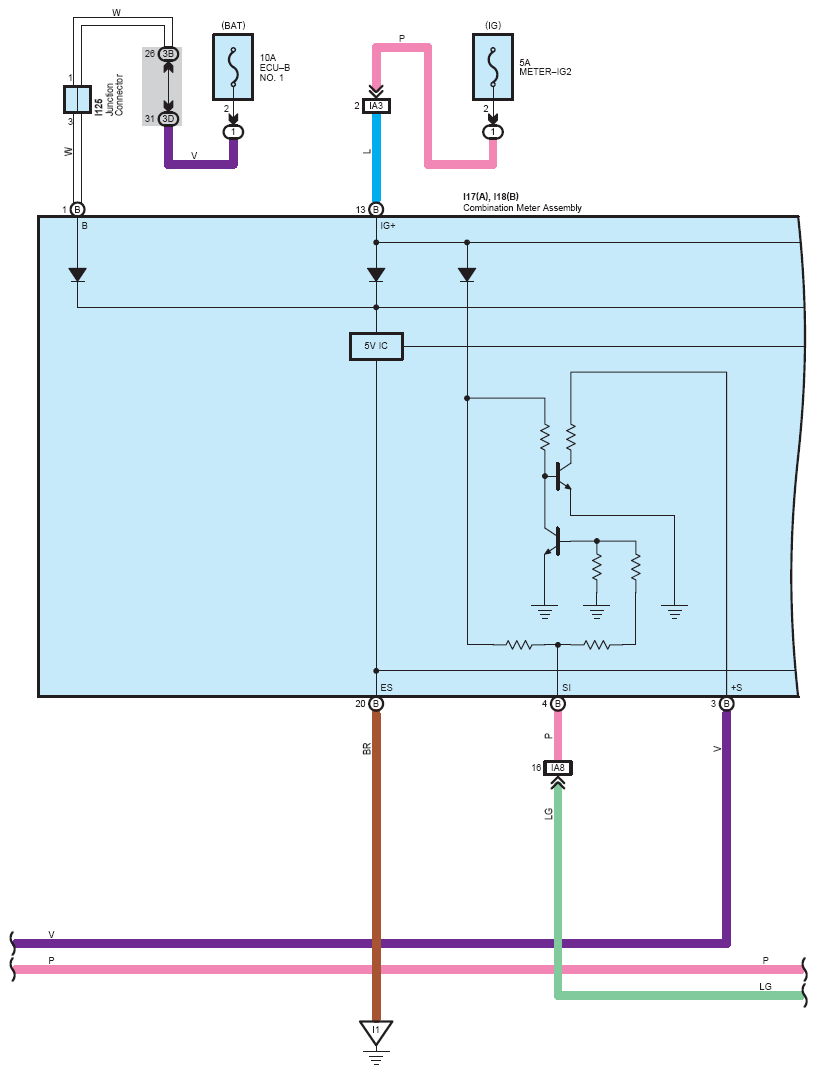

Fig 3: Headlight Beam Level Control - (3 Of 4)
G12200307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

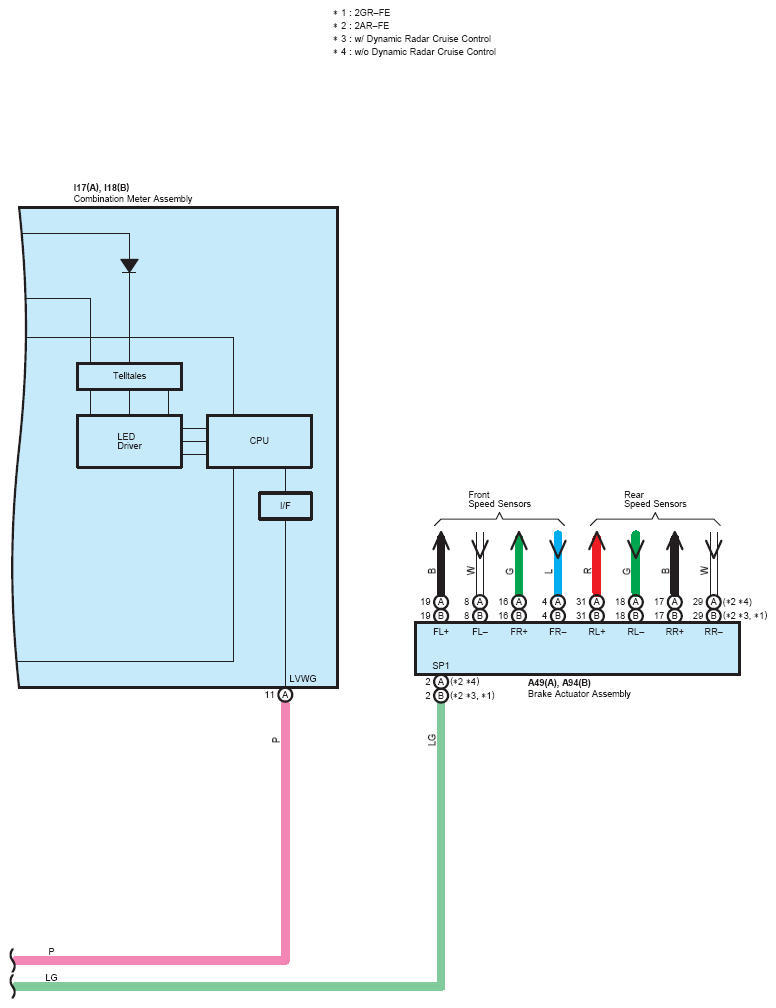

Fig 4: Headlight Beam Level Control - (4 Of 4)
G12200308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
