System Diagrams

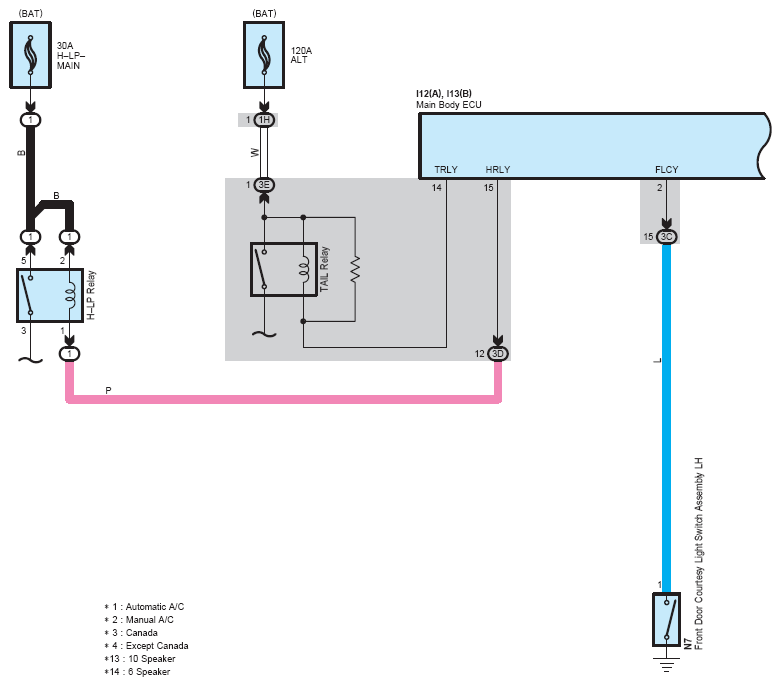

Fig 1: Automatic Light Control, Light Auto Turn Off System - (1 Of 4)
G12200065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

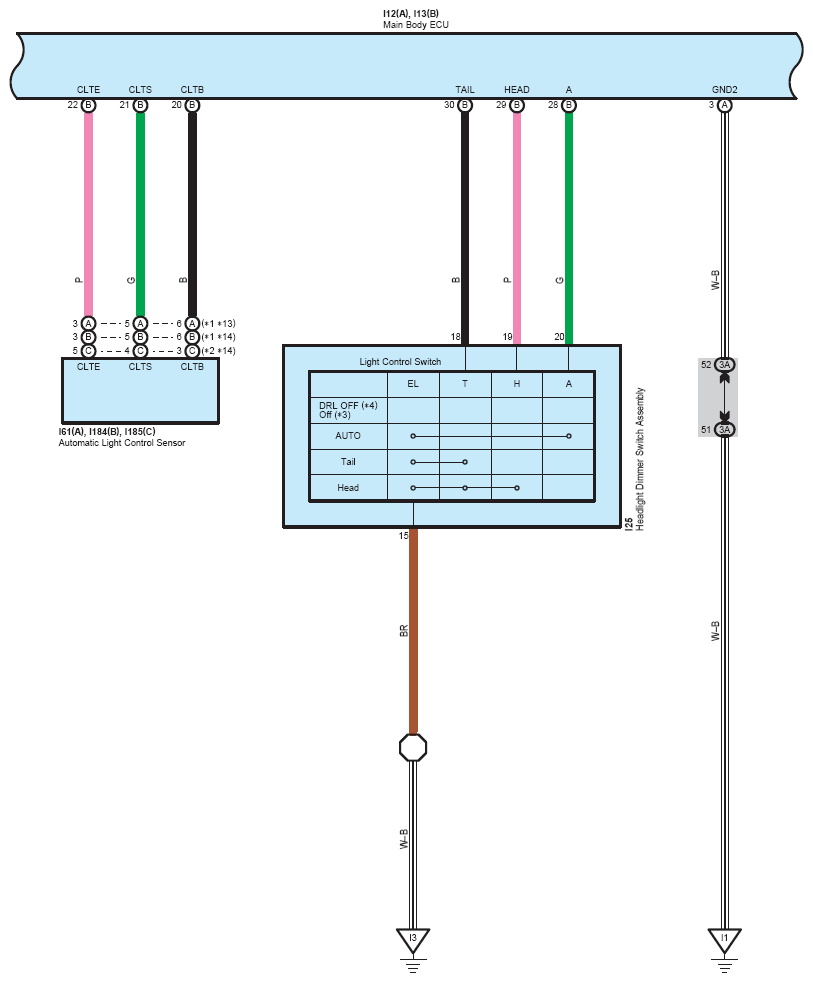

Fig 2: Automatic Light Control, Light Auto Turn Off System - (2 Of 4)
G12200066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

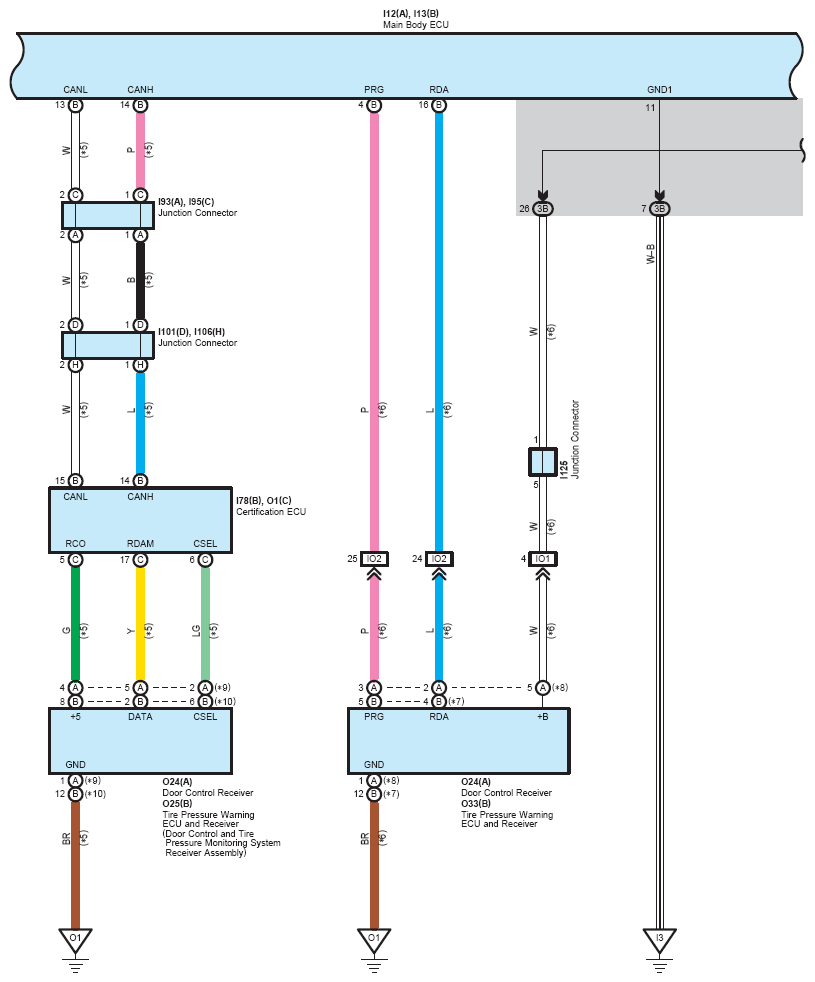

Fig 3: Automatic Light Control, Light Auto Turn Off System - (3 Of 4)
G12200067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

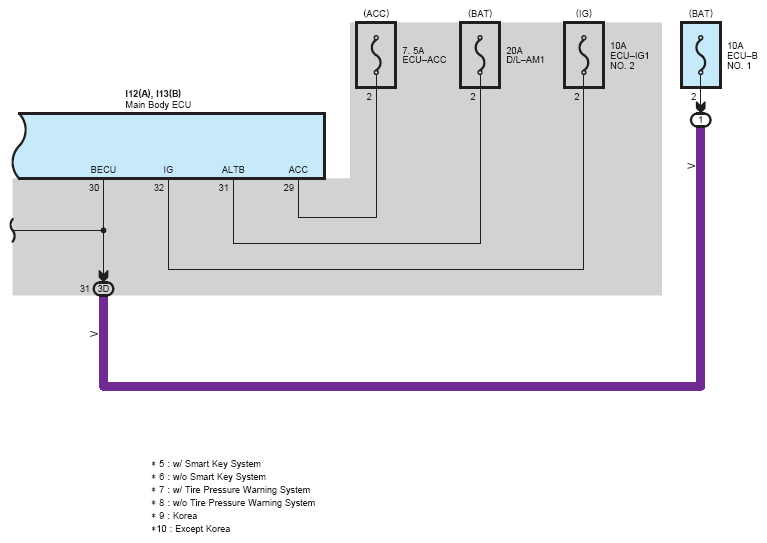

Fig 4: Automatic Light Control, Light Auto Turn Off System - (4 Of 4)
G12200068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
