Automatic Light Control, Light Auto Turn Off System: Connectors

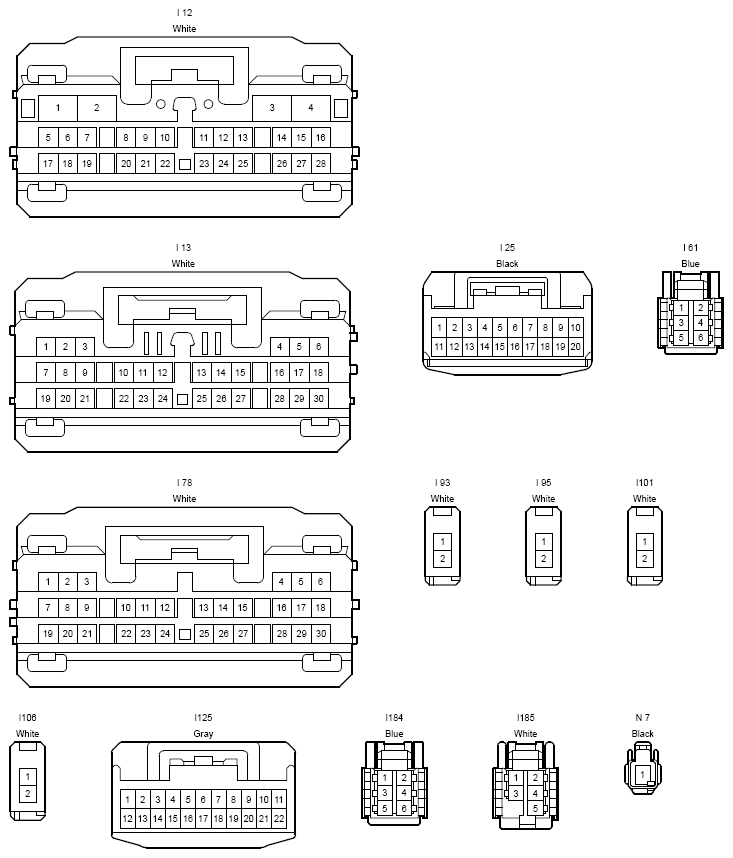

Fig 1: Connectors - (1 Of 3)
G12200069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

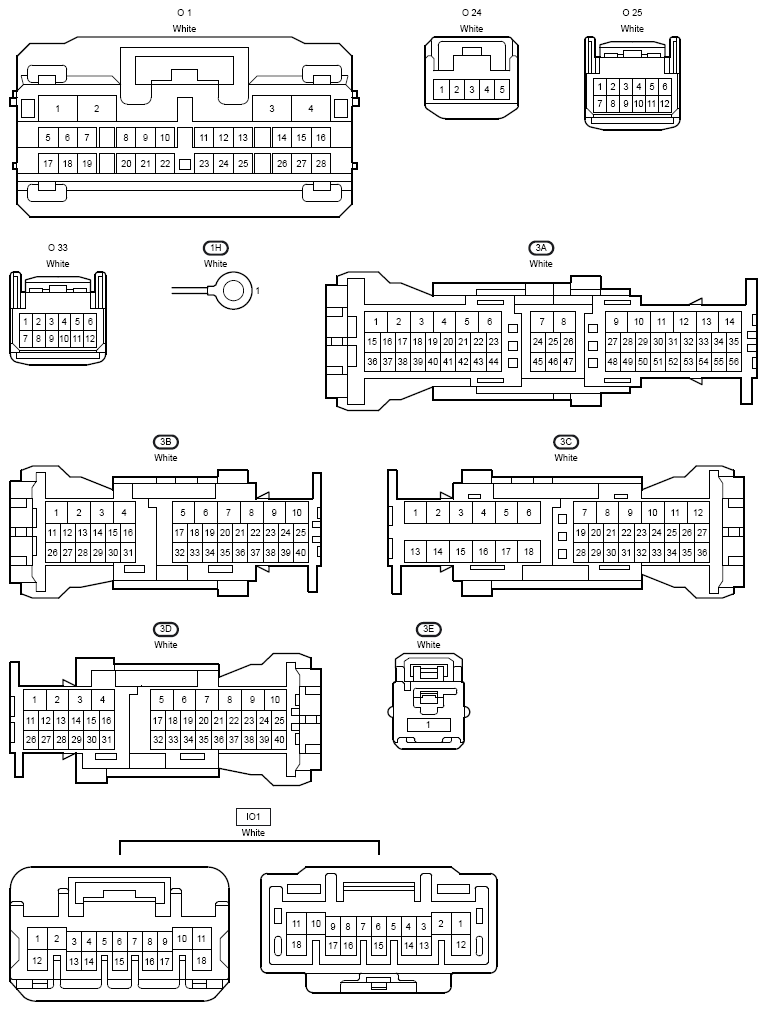

Fig 2: Connectors - (2 Of 3)
G12200070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

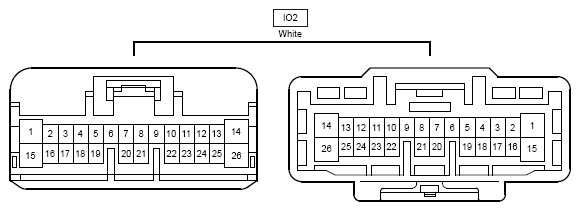

Fig 3: Connectors - (3 Of 4)
G12200071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
