System Diagrams — 2017 Toyota 86 Base, Standard Trans Service Manual ~ LEMON Manuals

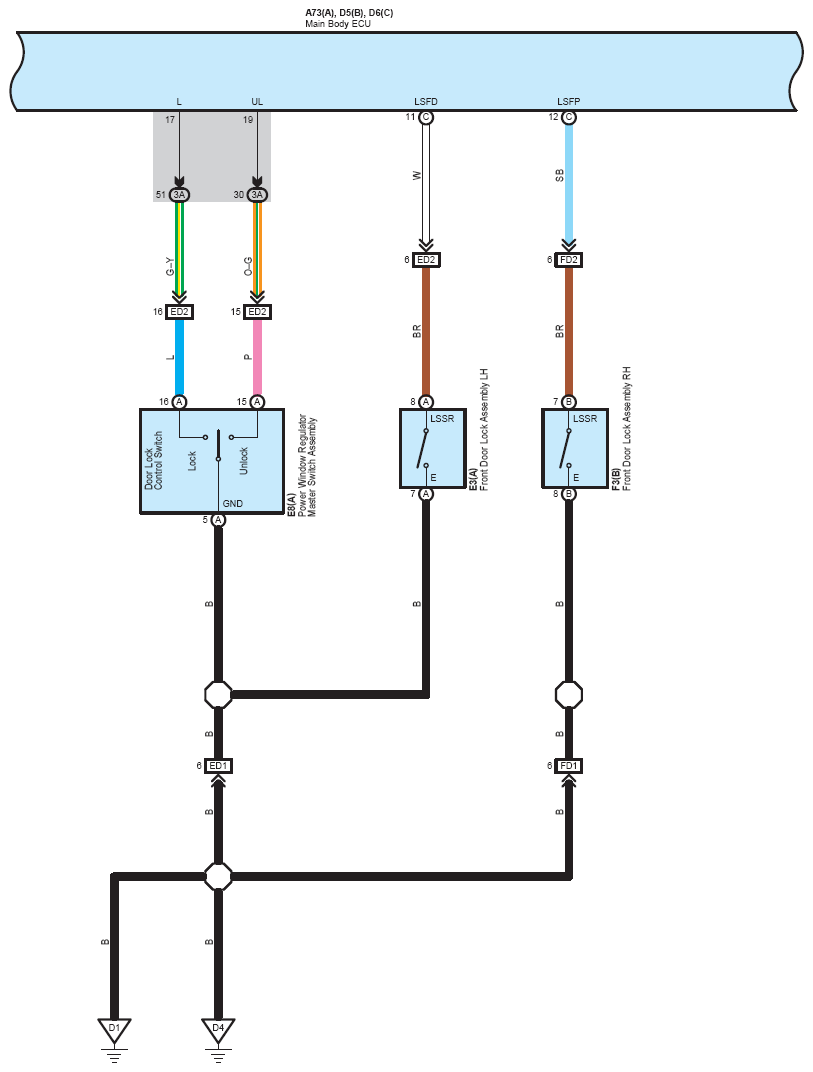

Fig 1: Theft Deterrent (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

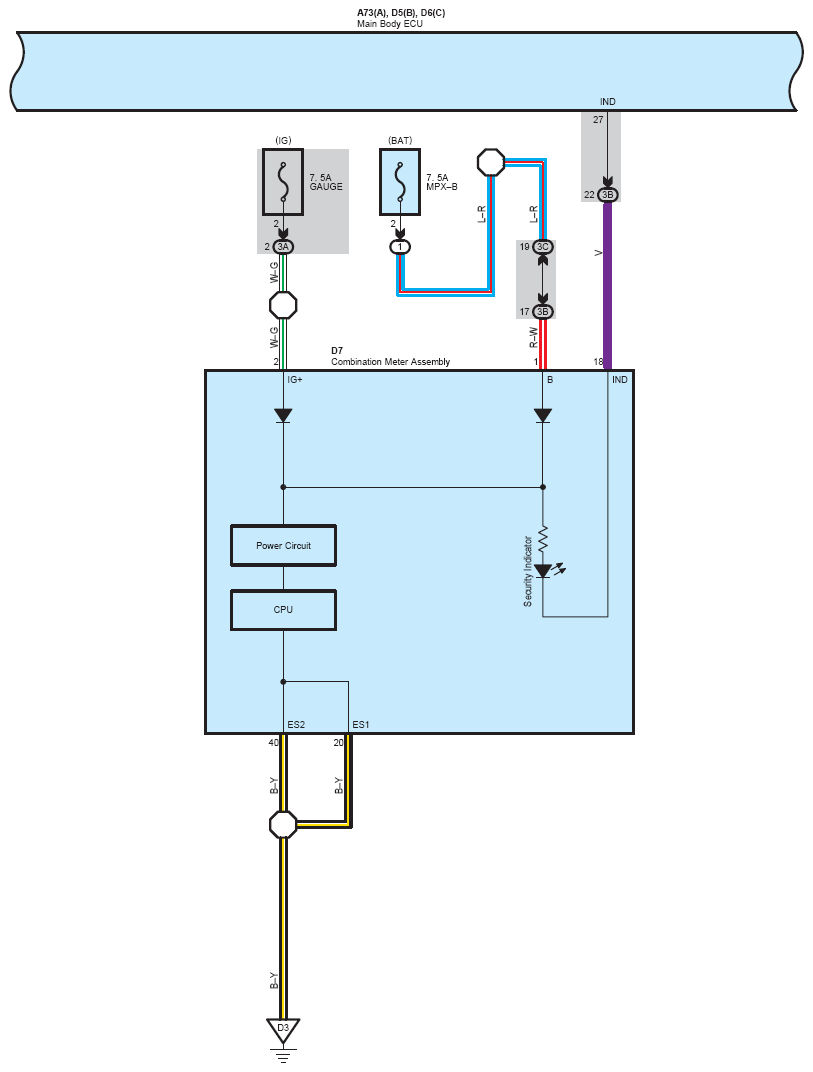

Fig 2: Theft Deterrent (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

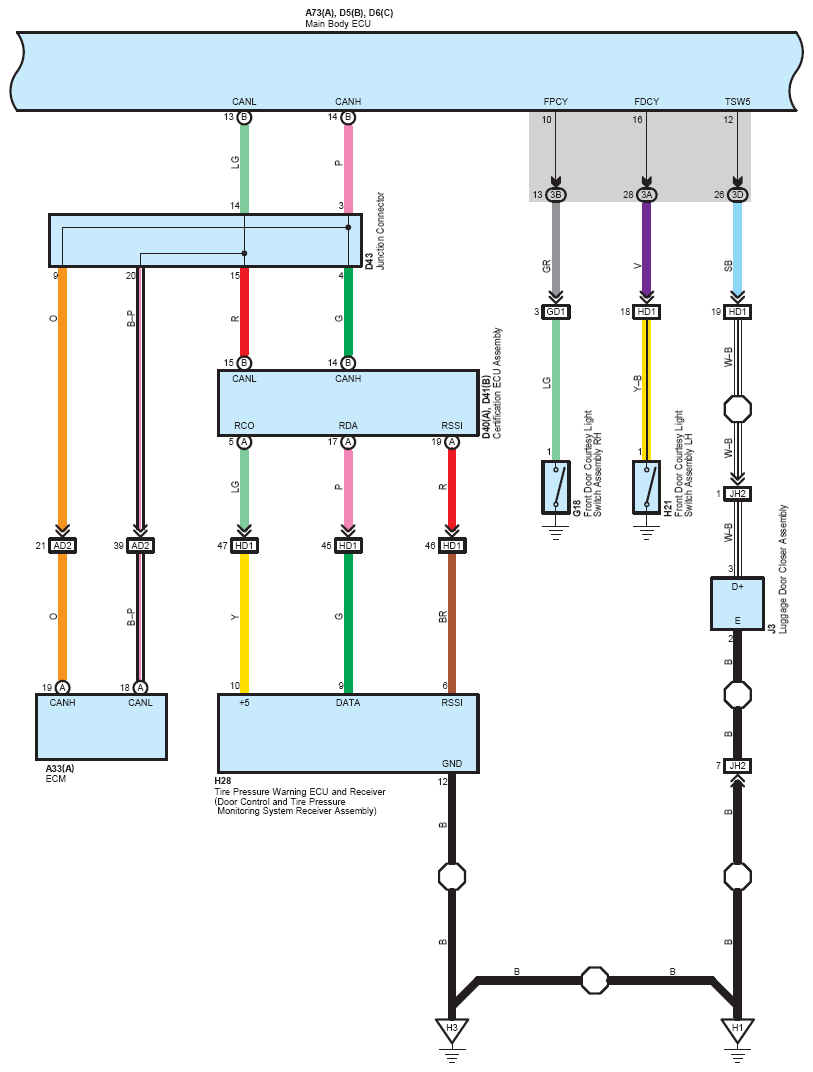

Fig 3: Theft Deterrent (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

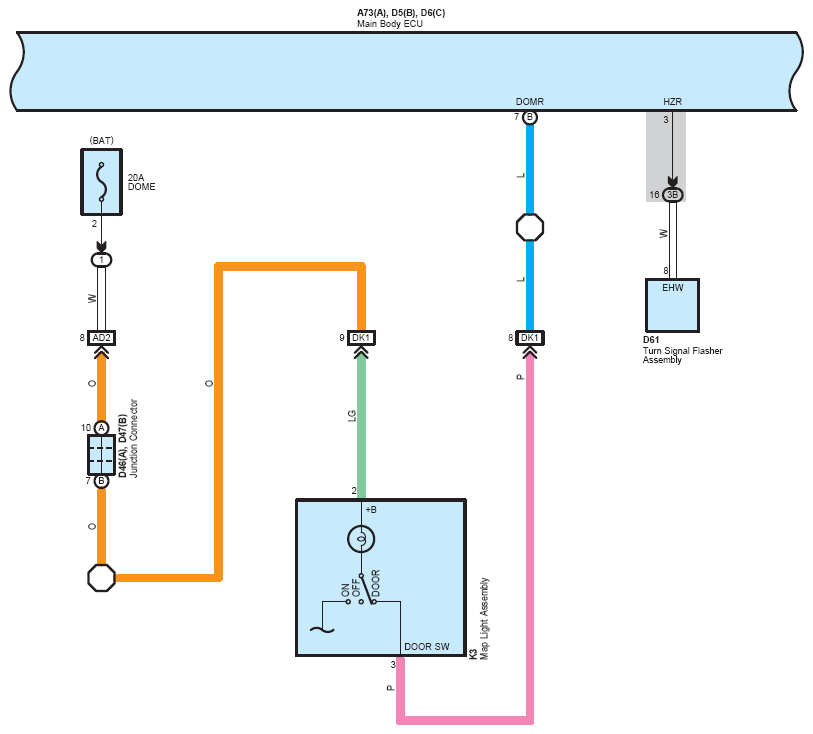

Fig 4: Theft Deterrent (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

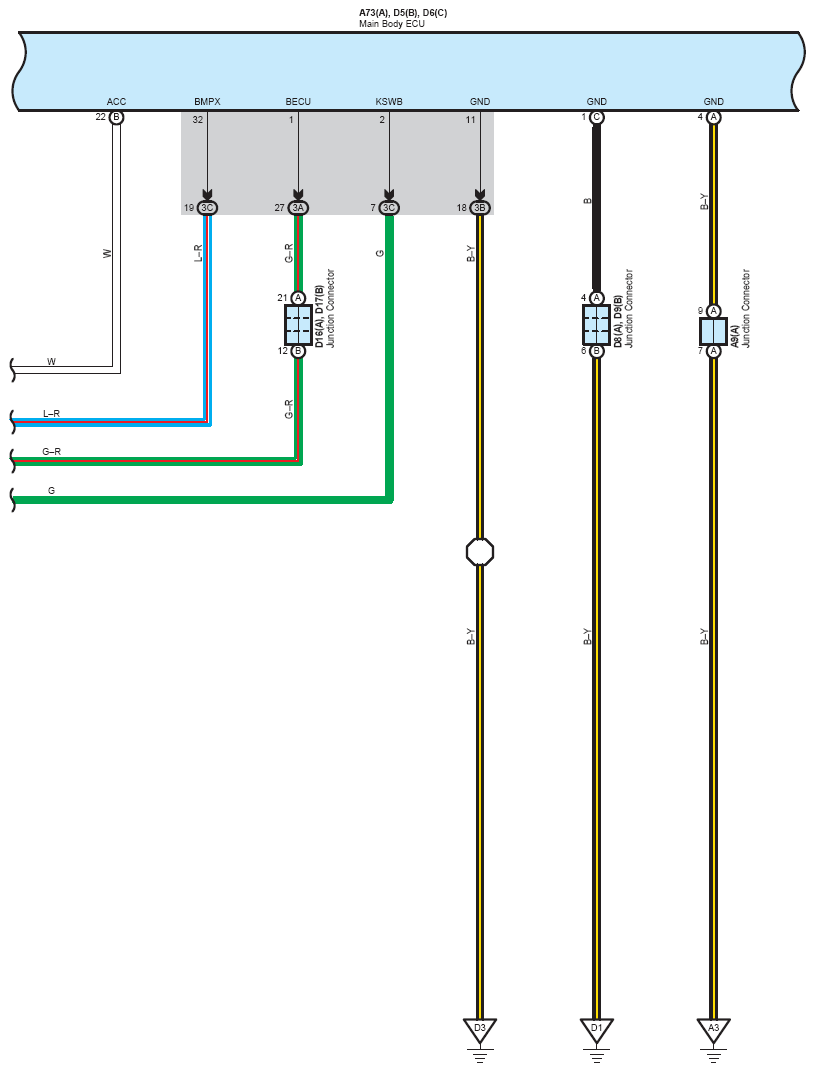

Fig 5: Theft Deterrent (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Theft Deterrent (6 Of 8)

Fig 7: Theft Deterrent (7 Of 8)

Fig 8: Theft Deterrent (8 Of 8)
