86 Base, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Front Wiper And Washer
>>
System Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagrams

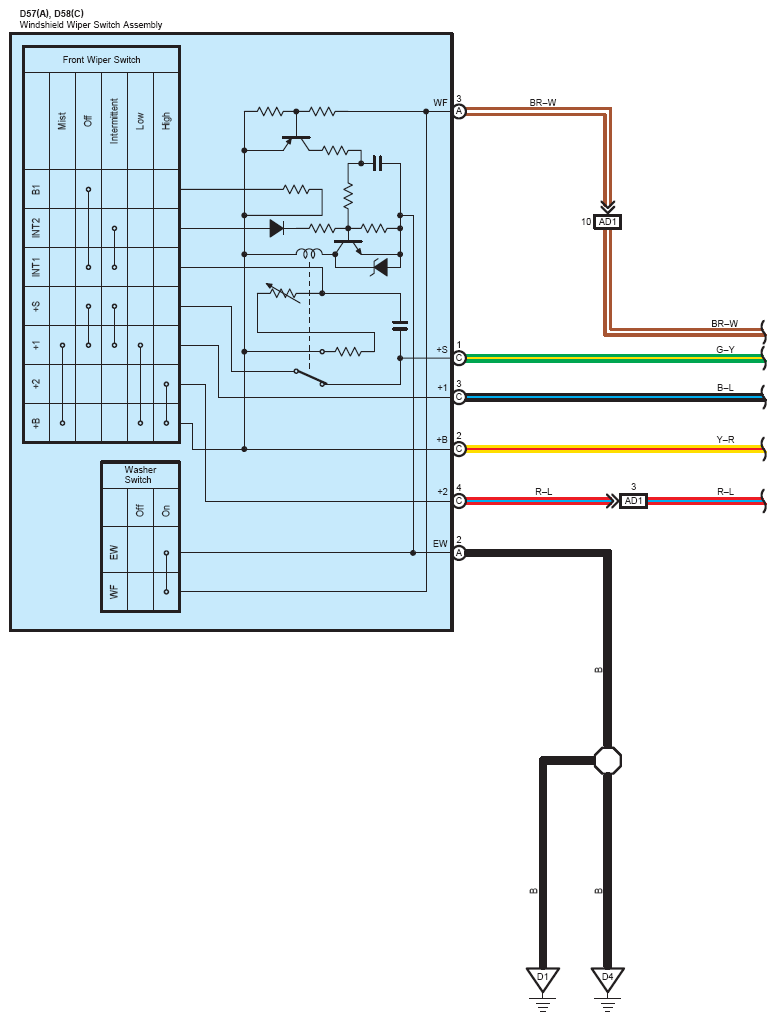

Fig 1: Front Wiper And Washer (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

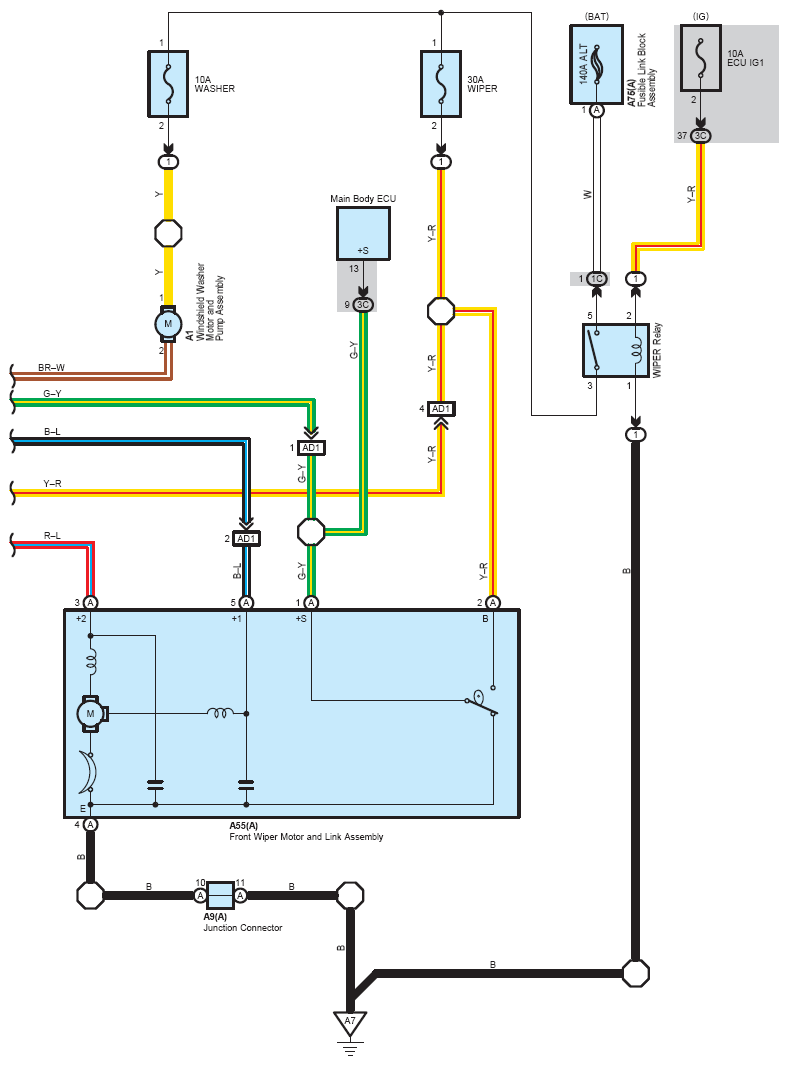

Fig 2: Front Wiper And Washer (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
