Components [03/2017 - ]

Fig 1: Steering Column Assembly Replacement Components (1 Of 5) With Torque Specifications
GTY706137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

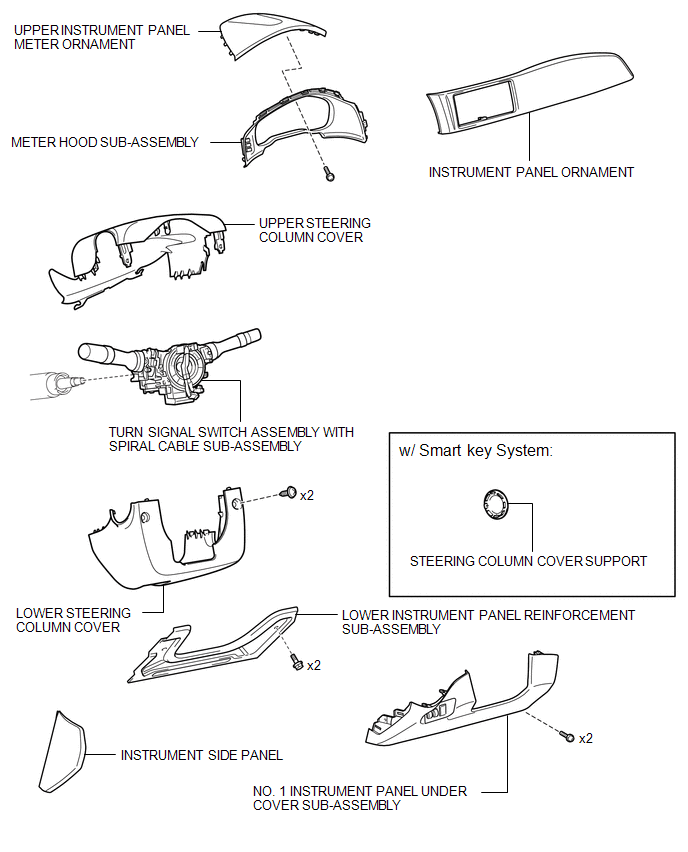

Fig 2: Steering Column Assembly Replacement Components (2 Of 5)
GTY712444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

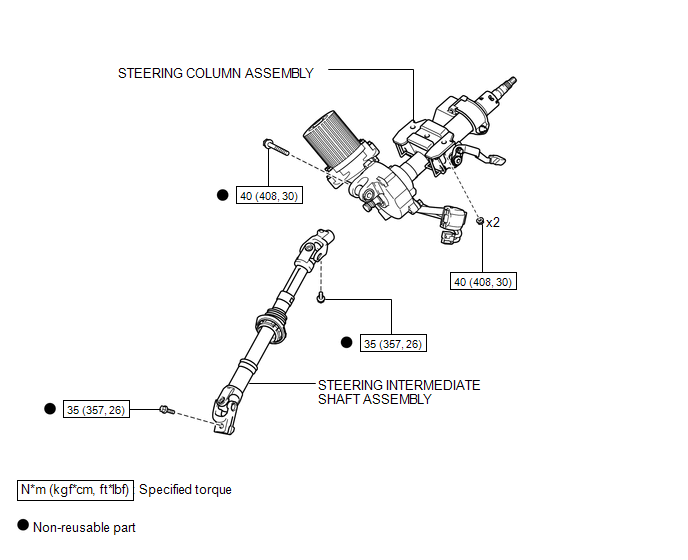

Fig 3: Steering Column Assembly Replacement Components (3 Of 5) With Torque Specifications
GTY716539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

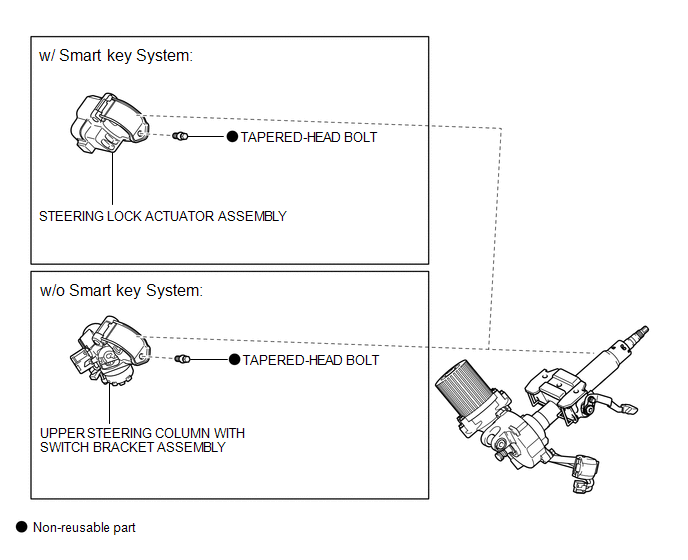

Fig 4: Steering Column Assembly Replacement Components (4 Of 5)
GTY711439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

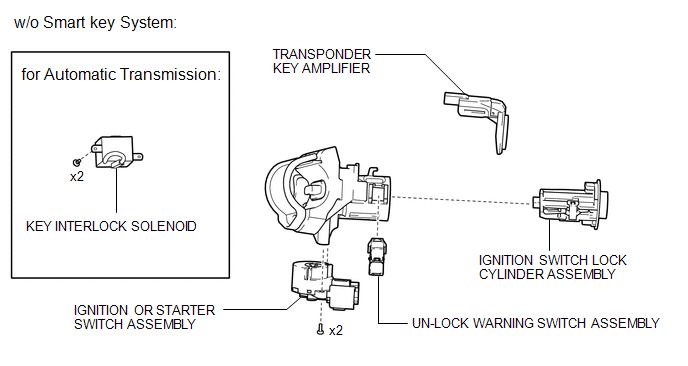

Fig 5: Steering Column Assembly Replacement Components (5 Of 5)
GTY688860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
