Components [06/2016 - ]

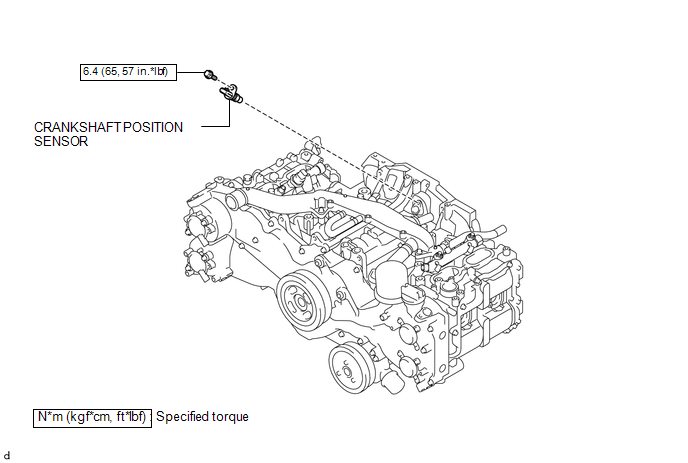

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY706518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
