Power Window Regulator Motor
>>
Components [06/2016 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [06/2016 - ]

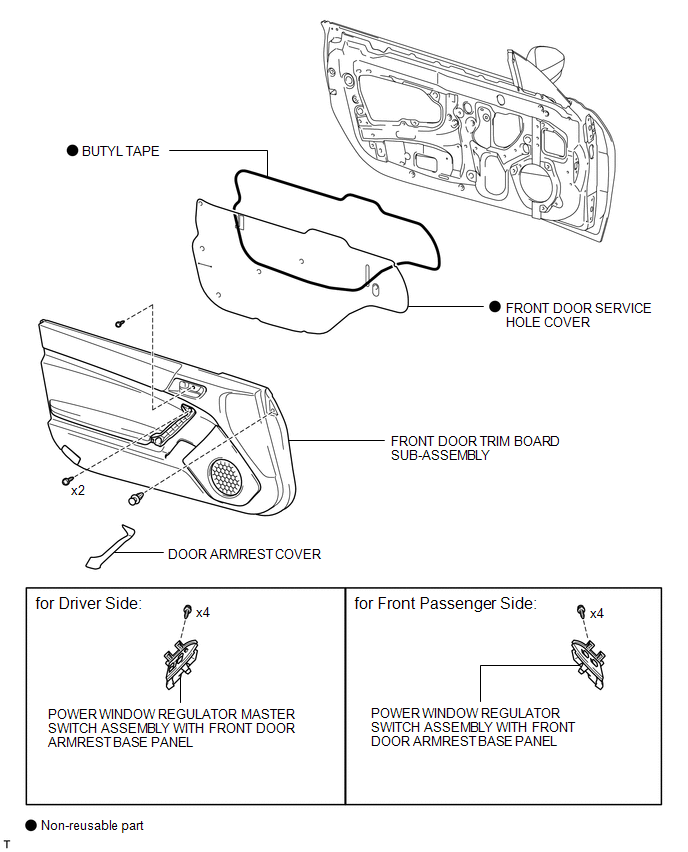

Fig 1: Power Window Regulator Motor Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

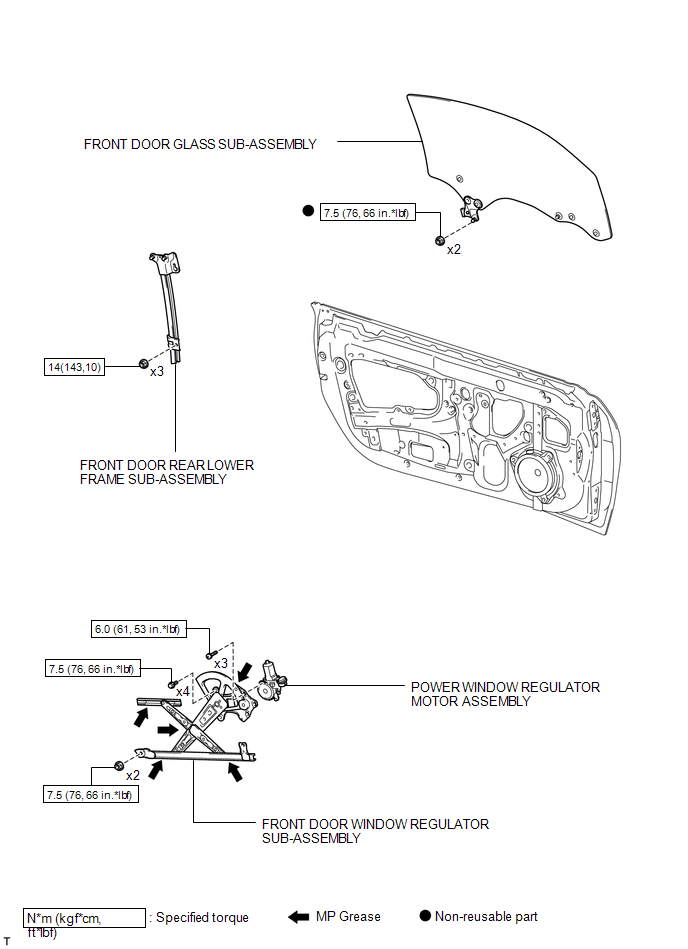

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
