Removal [06/2016 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    (Refer to REMOVAL [06/2016 - ] )

  2. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

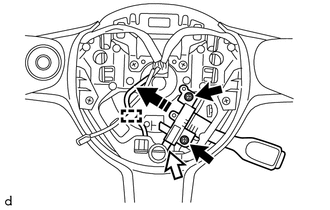

    1. Disengage the clamp and disconnect the cruise control main switch wire connector.
      GTY702013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and cruise control main switch assembly.
