Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    See step  6

  2. REMOVE DUTY VACUUM SWITCHING VALVE
    1. Disconnect the duty vacuum switching valve connector.

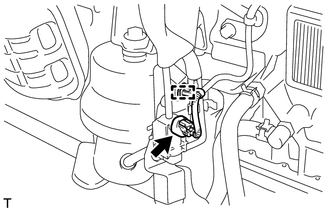

      GTY300113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.
    3. Disconnect the 3 vacuum hoses from the duty vacuum switching valve.

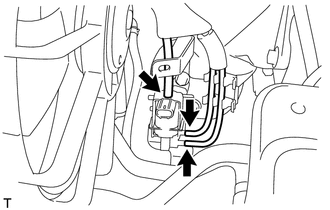

      GTY300114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt.

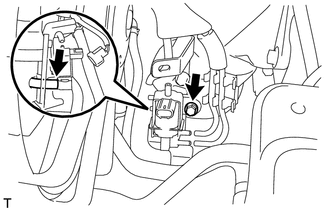

      GTY300115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the hose from the duty vacuum switching valve.
