Removal [12/2015 - 11/2017]: Procedure
- REMOVE PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

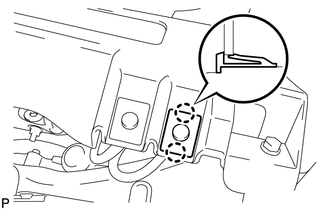

- Disengage the 2 claws and remove the pre-collision brake cancel switch.
- Disconnect the connector.
