System Diagrams

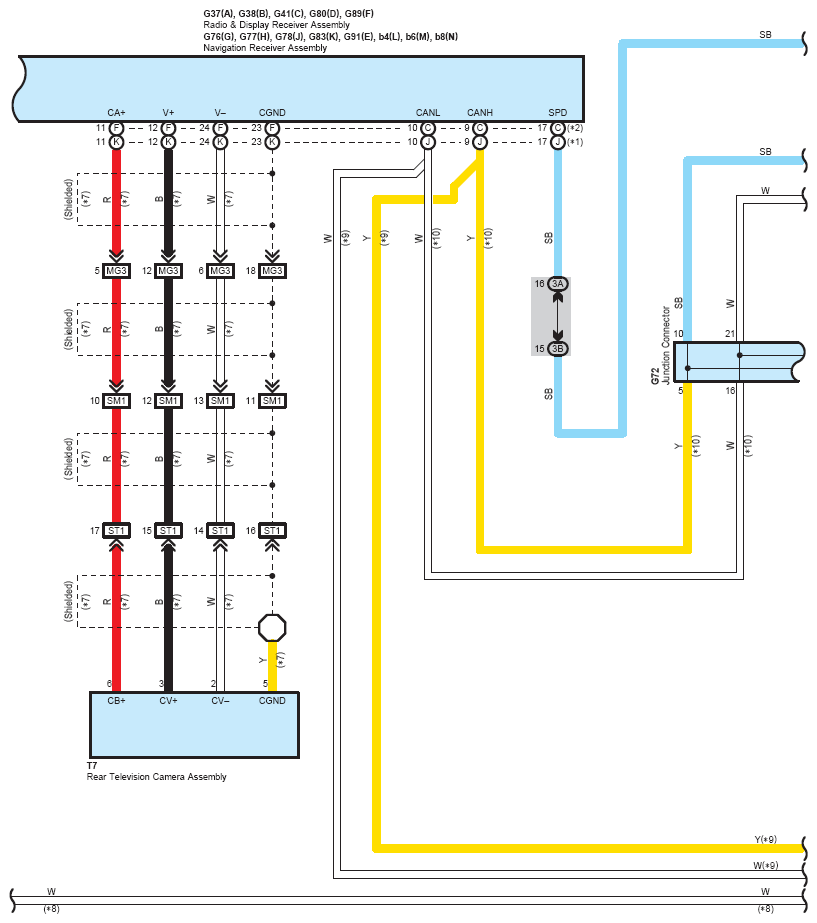

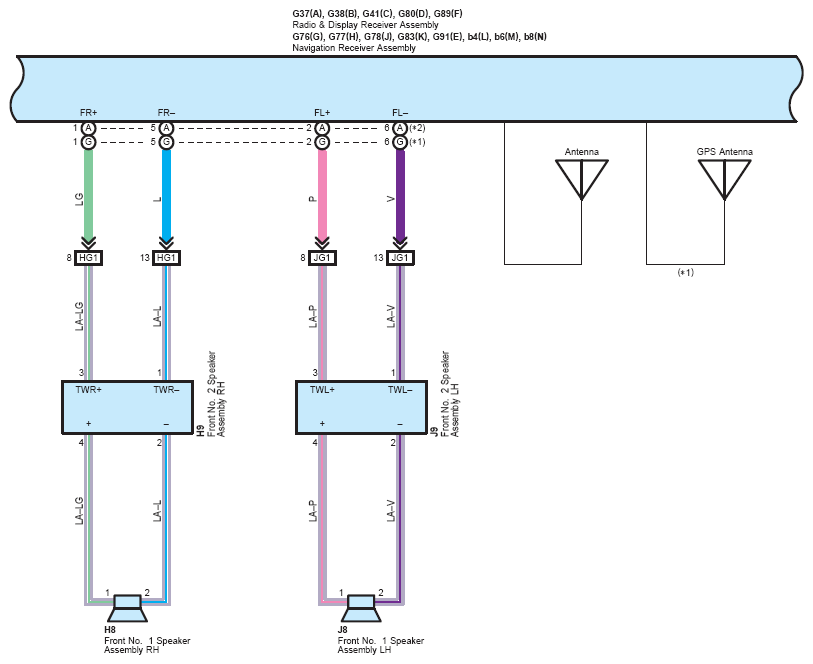

Fig 1: Audio System, Navigation System, Parking Assist (Rear View Monitor) (1 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

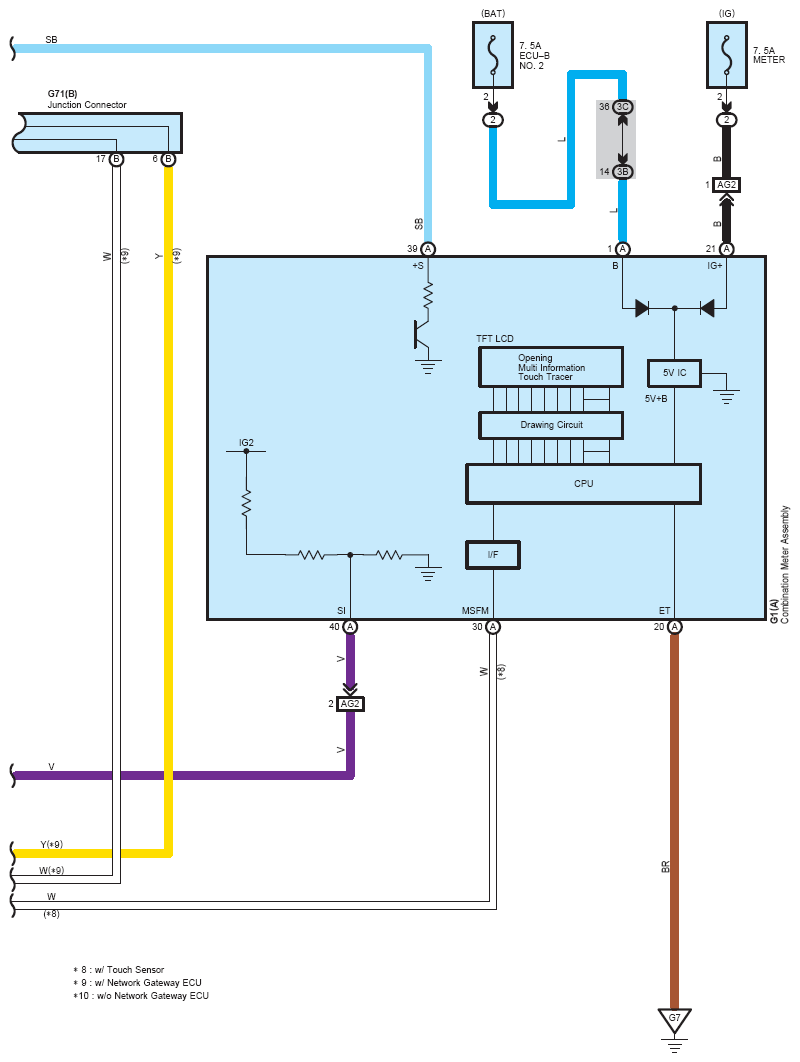

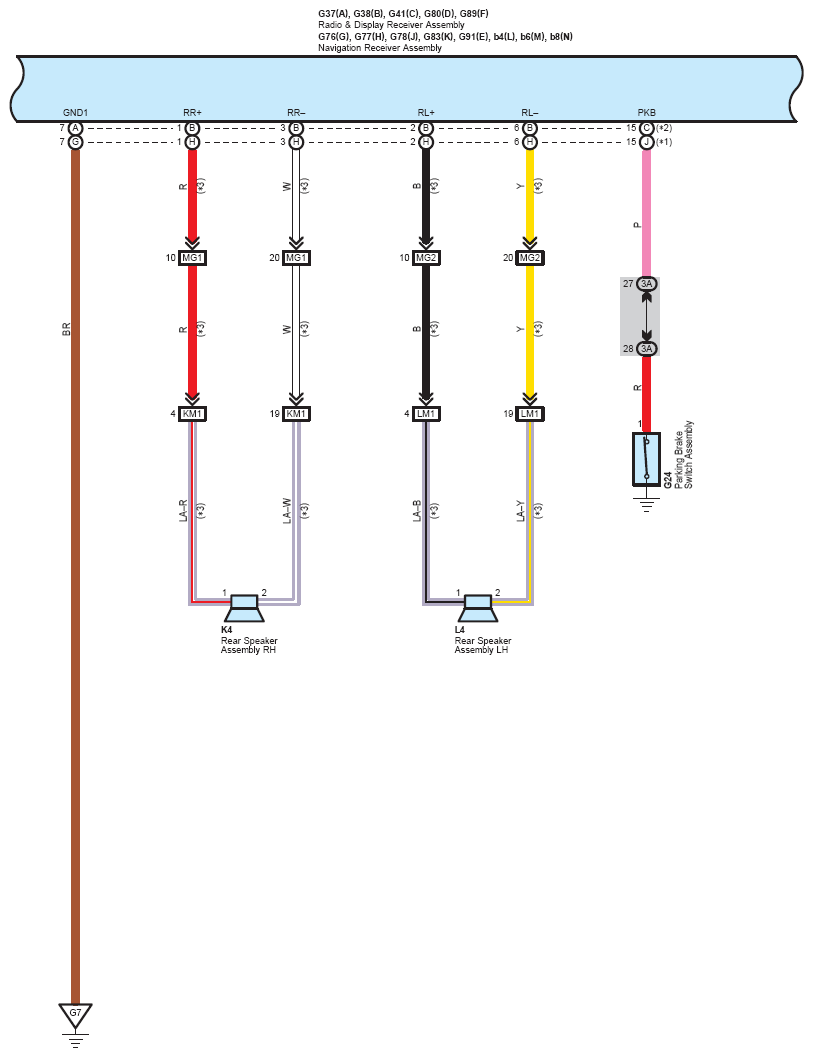

Fig 2: Audio System, Navigation System, Parking Assist (Rear View Monitor) (2 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

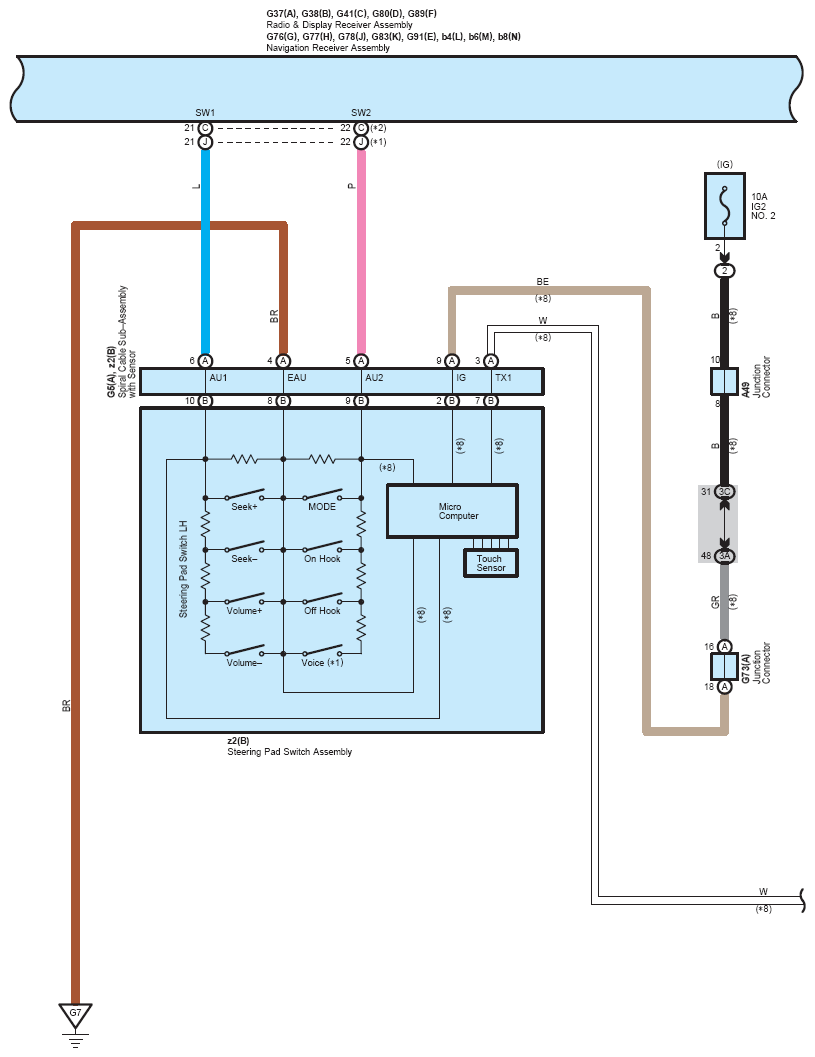

Fig 3: Audio System, Navigation System, Parking Assist (Rear View Monitor) (3 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

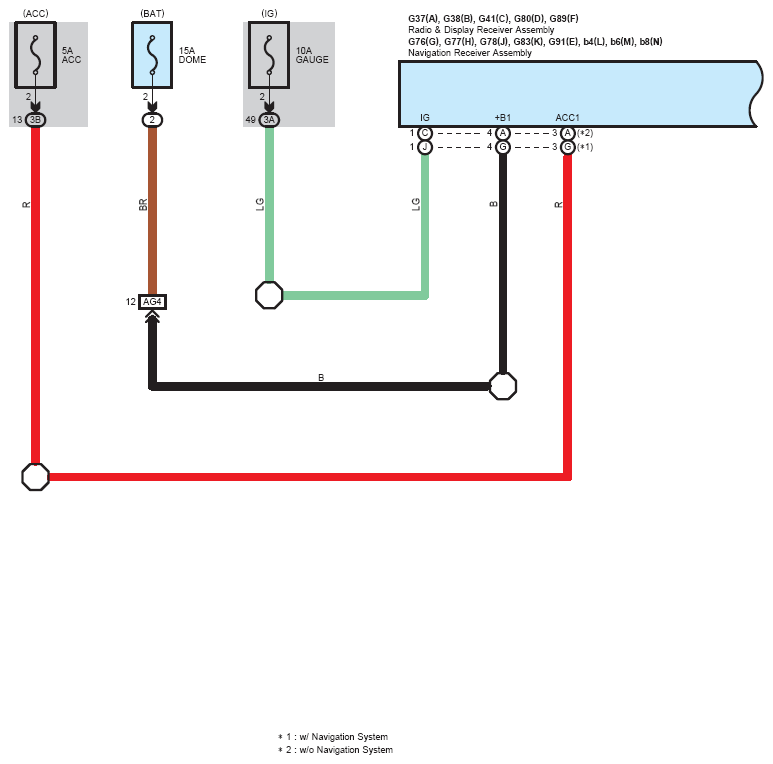

Fig 4: Audio System, Navigation System, Parking Assist (Rear View Monitor) (4 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

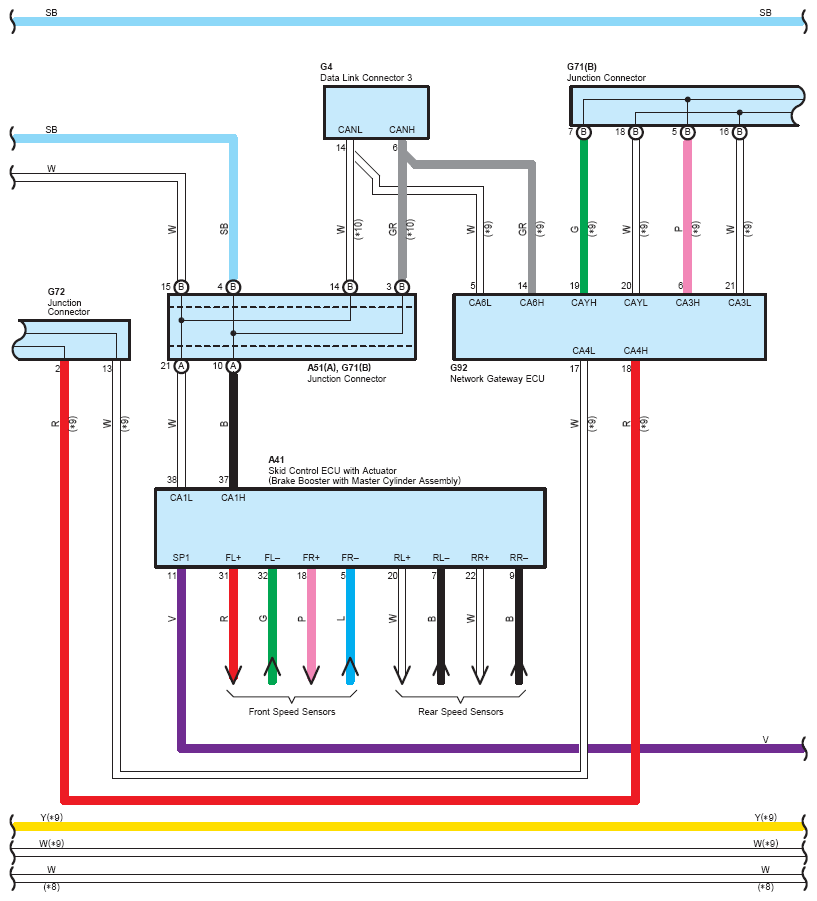

Fig 5: Audio System, Navigation System, Parking Assist (Rear View Monitor) (5 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

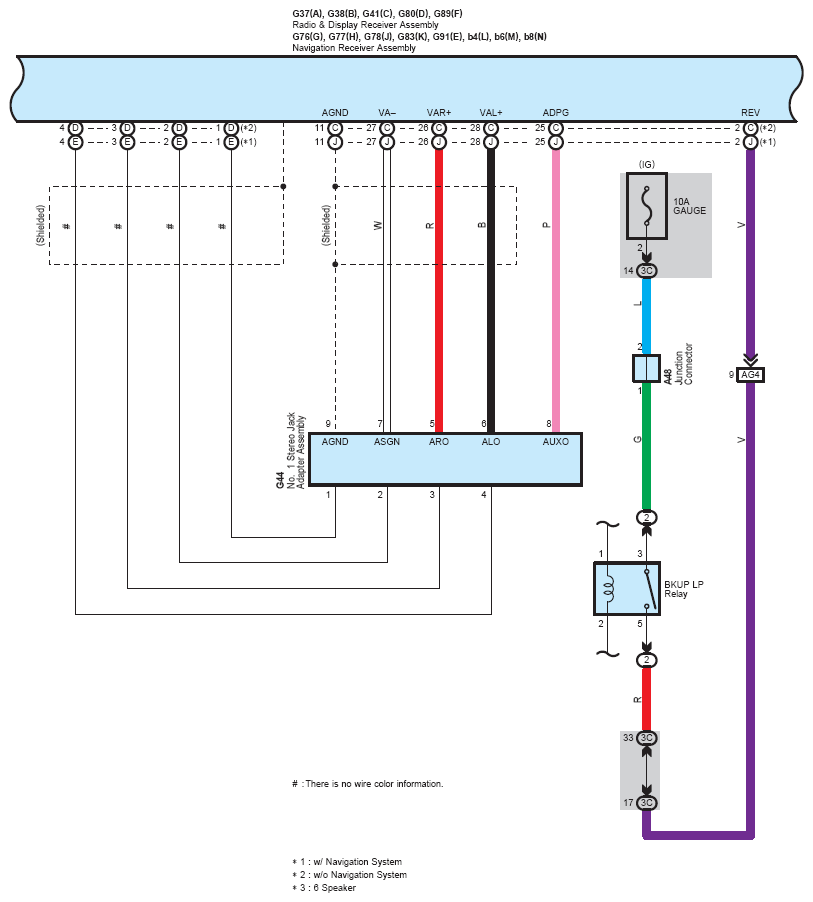

Fig 6: Audio System, Navigation System, Parking Assist (Rear View Monitor) (6 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

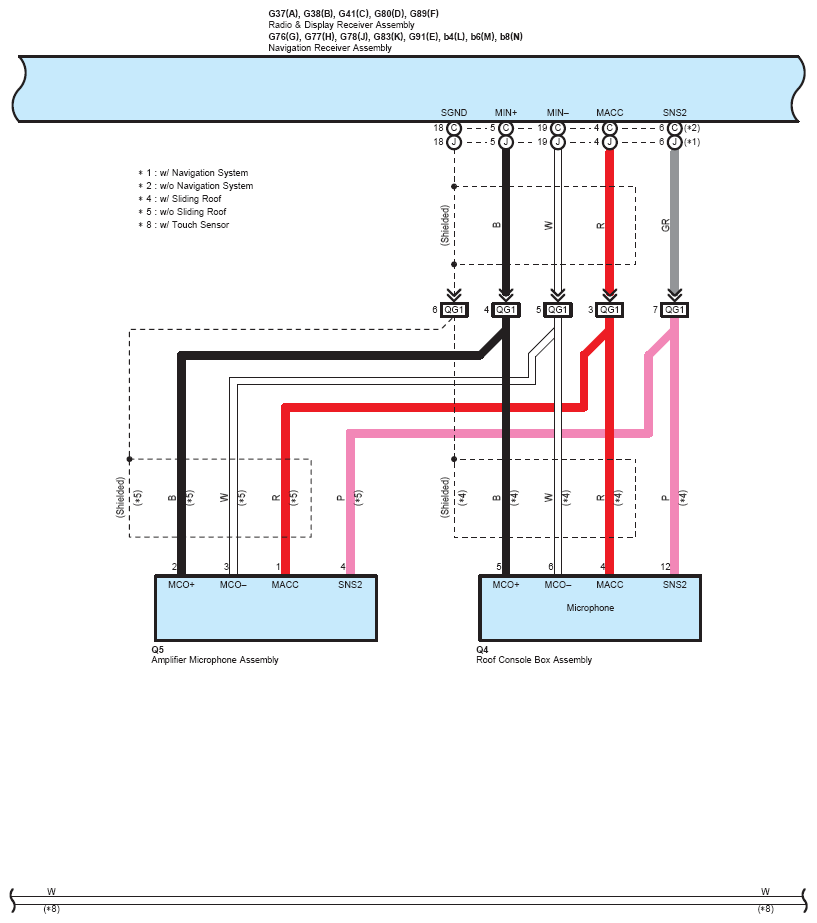

Fig 7: Audio System, Navigation System, Parking Assist (Rear View Monitor) (7 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

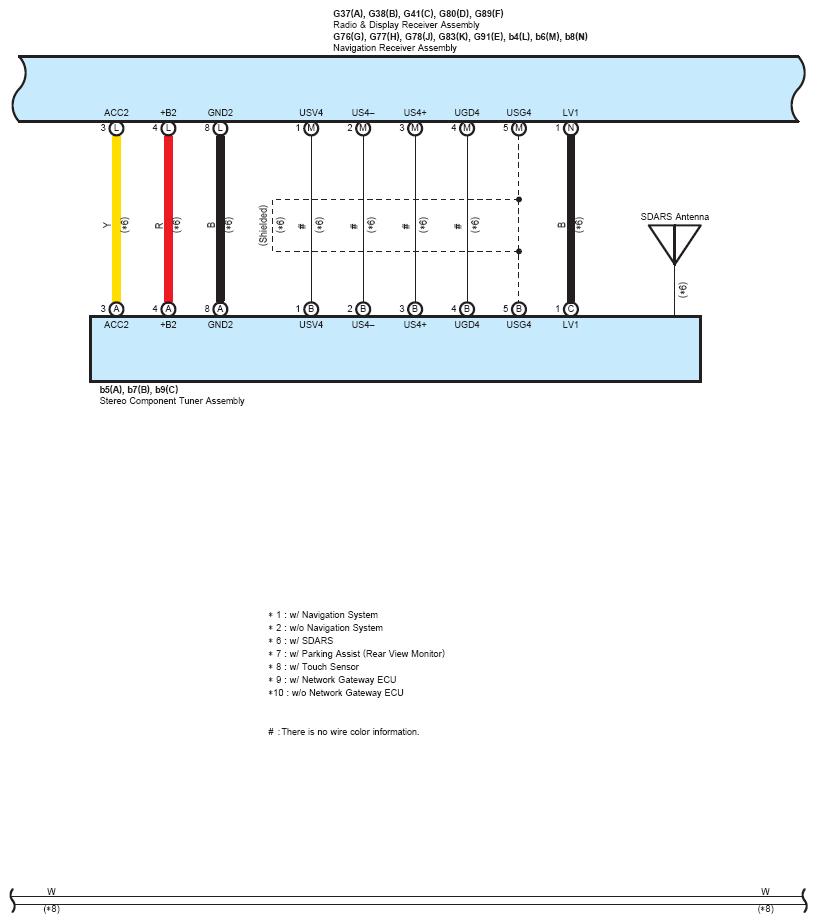

Fig 8: Audio System, Navigation System, Parking Assist (Rear View Monitor) (8 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Audio System, Navigation System, Parking Assist (Rear View Monitor) (9 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Audio System, Navigation System, Parking Assist (Rear View Monitor) (10 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
