Parts Location [08/2019 - 08/2022]: Illustration

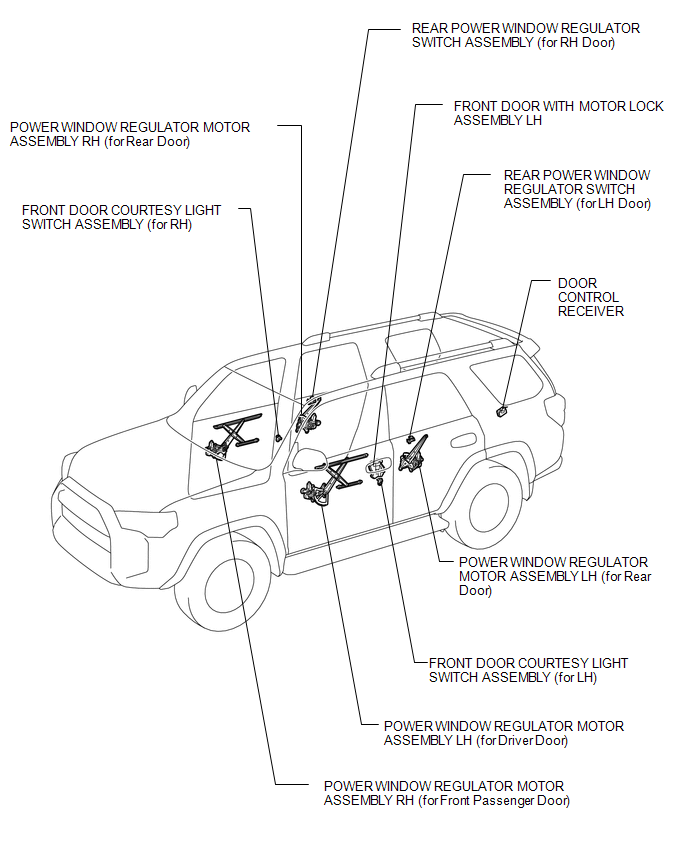

Fig 1: Power Window Control System Components Location (1 Of 3) [08/2019 - 08/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

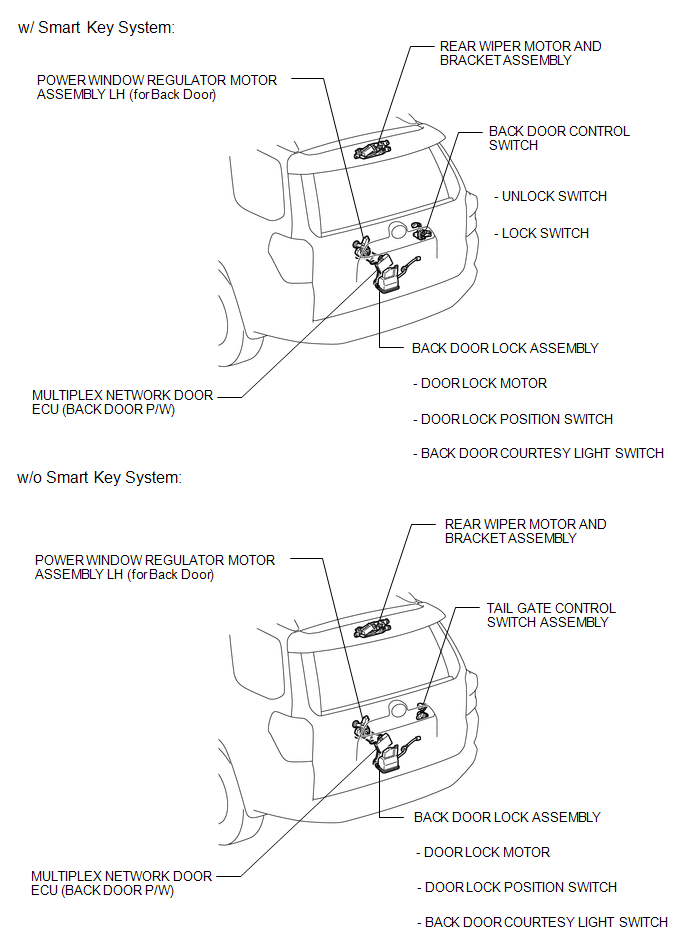

Fig 1: Power Window Control System Components Location (2 Of 3) [08/2019 - 08/2022]

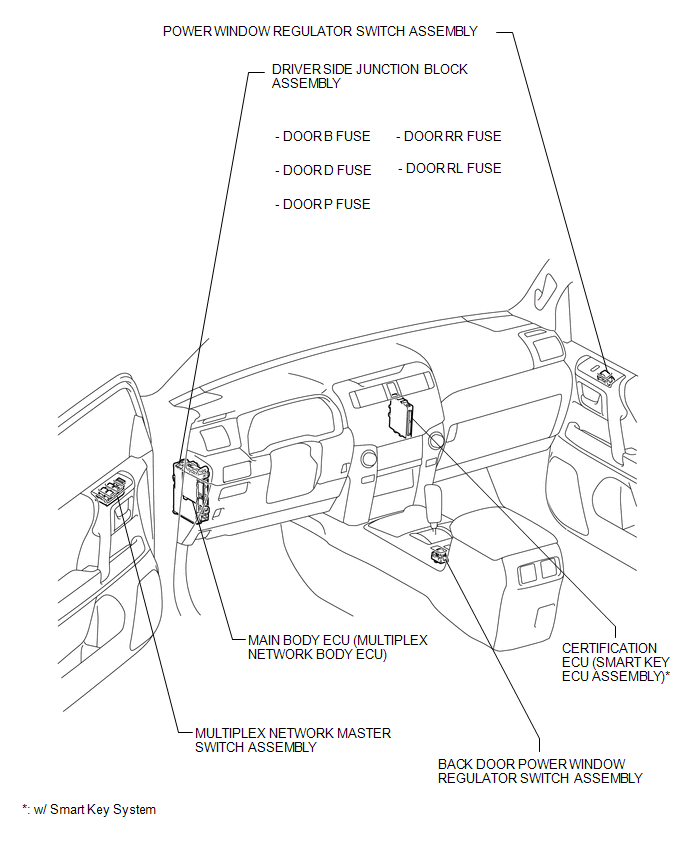

Fig 1: Power Window Control System Components Location (3 Of 3) [08/2019 - 08/2022]
