Stabilizer Control Valve: Components: Illustration

WARNING: This page is about a different car, the 2013 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (1 Of 4)
GTY238164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

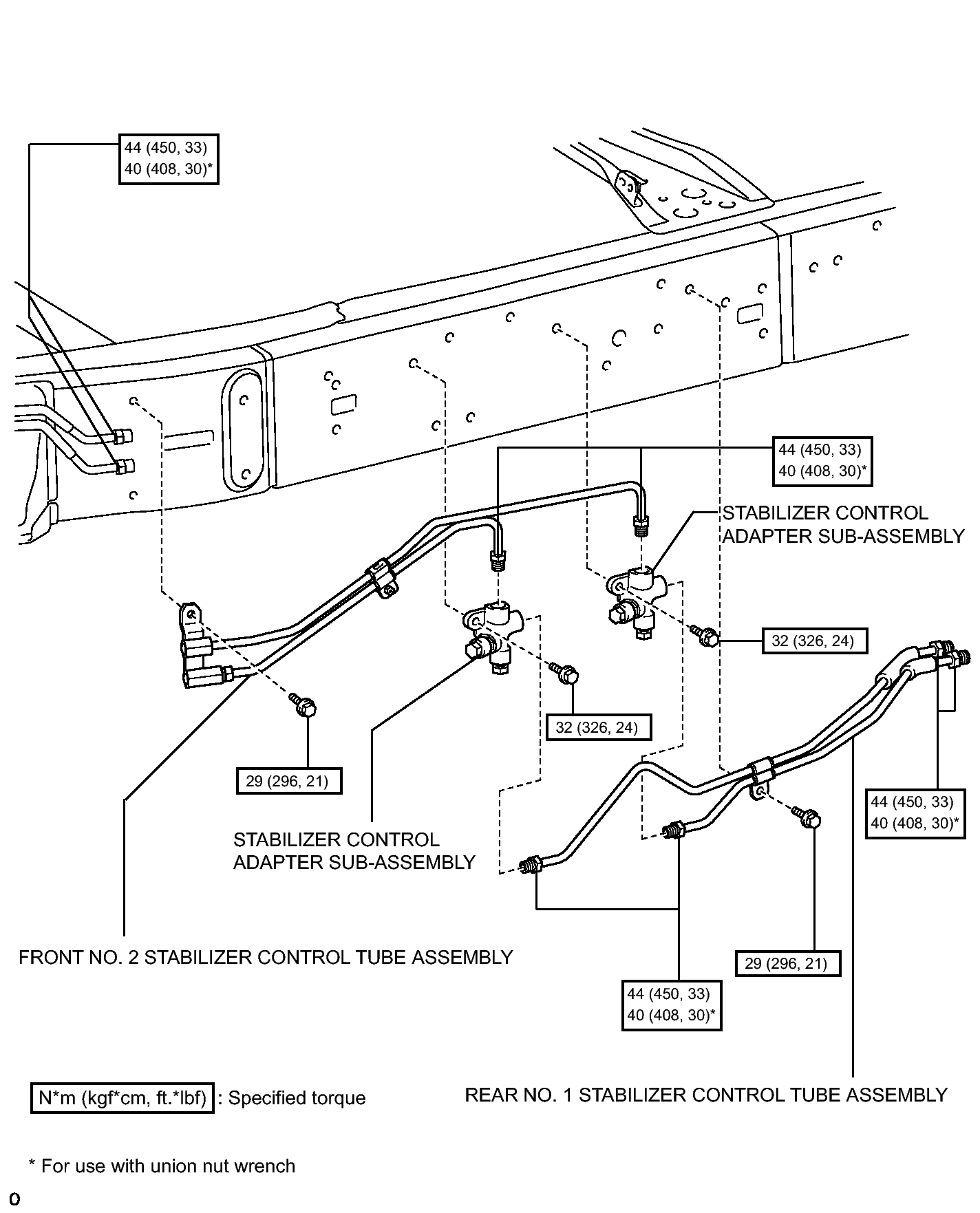

Fig 1: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (2 Of 4)
GTY244590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

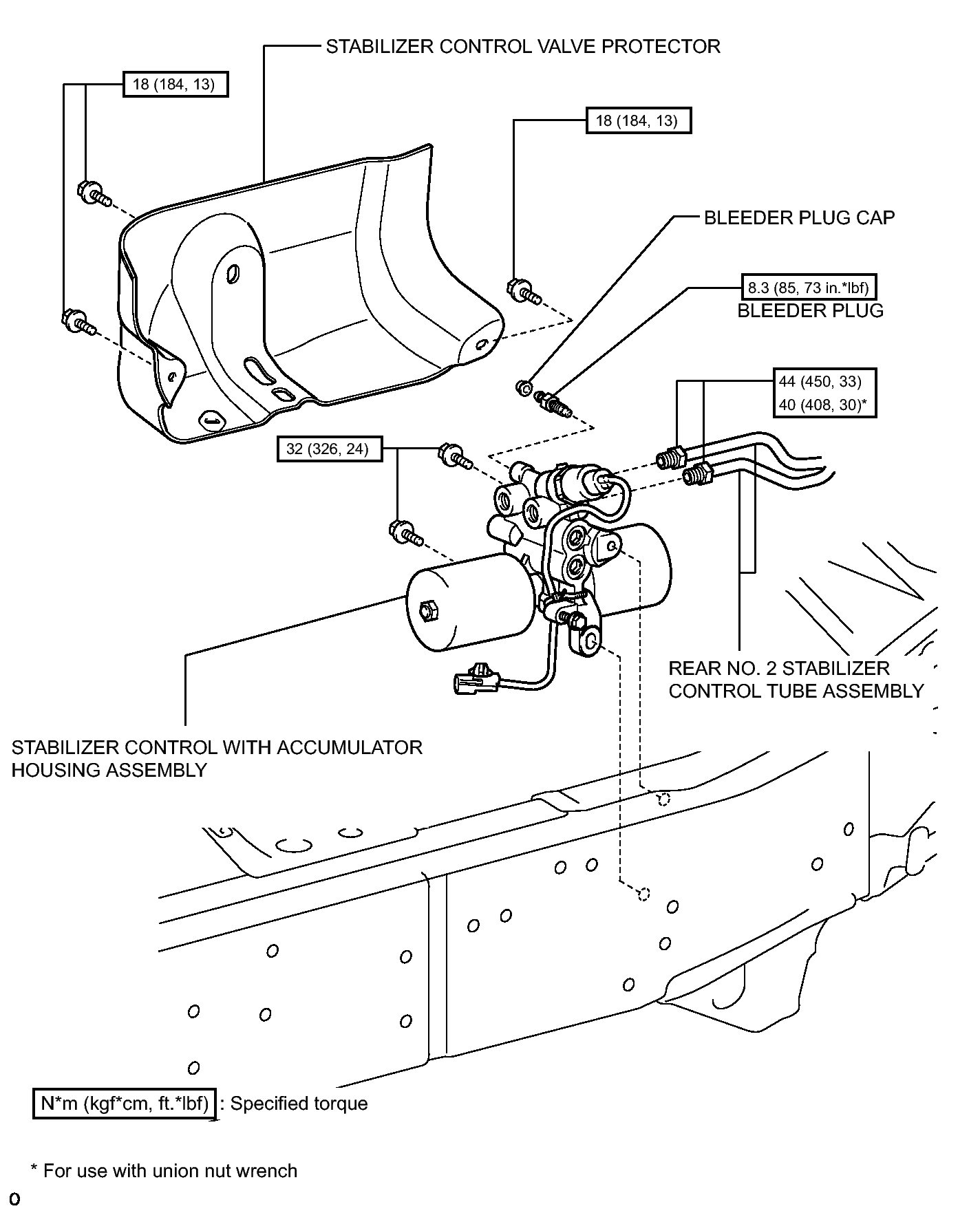

Fig 1: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (3 Of 4)
GTY290477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

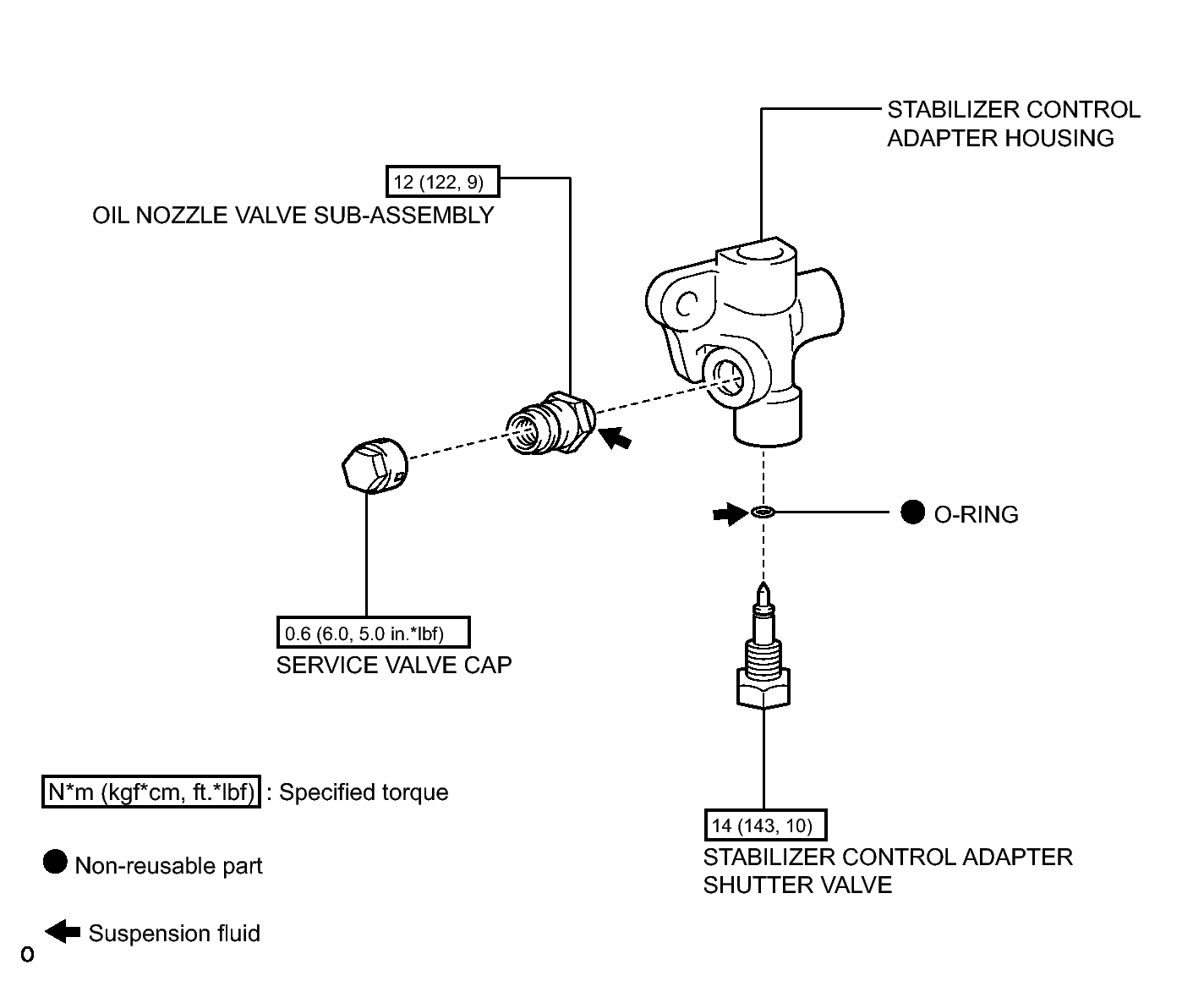

Fig 1: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (4 Of 4)
GTY244686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
