Back-Up Light (H/B): Notes

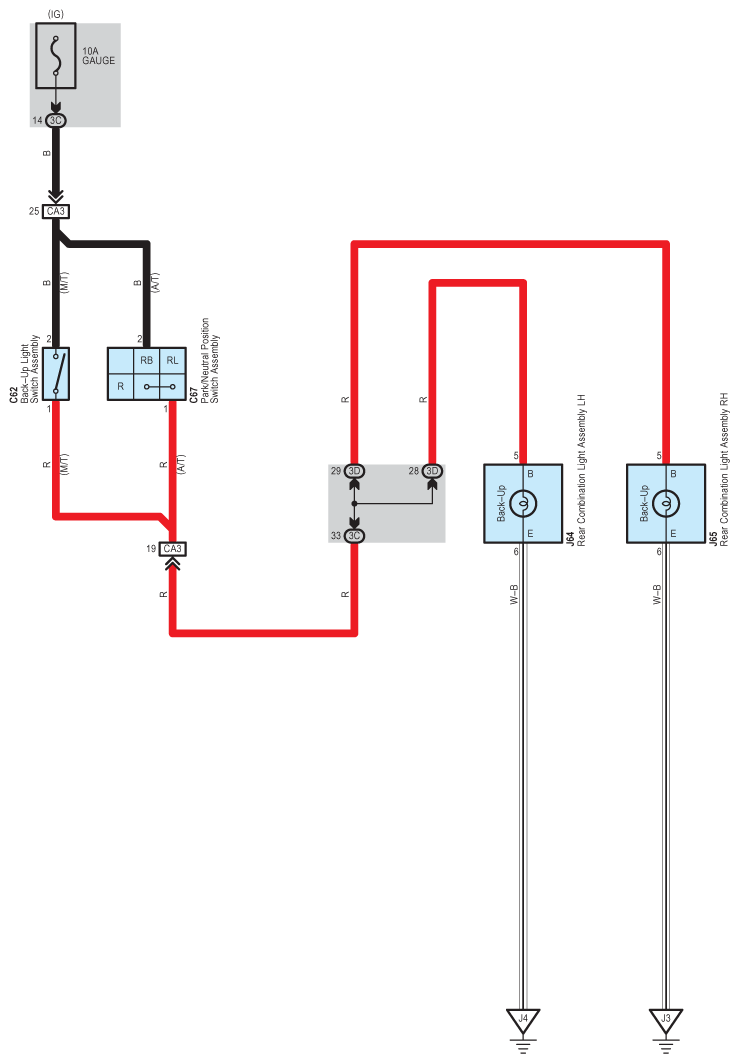

Fig 1: Back-Up Light System Wiring Diagram (H/B)
G09112581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
